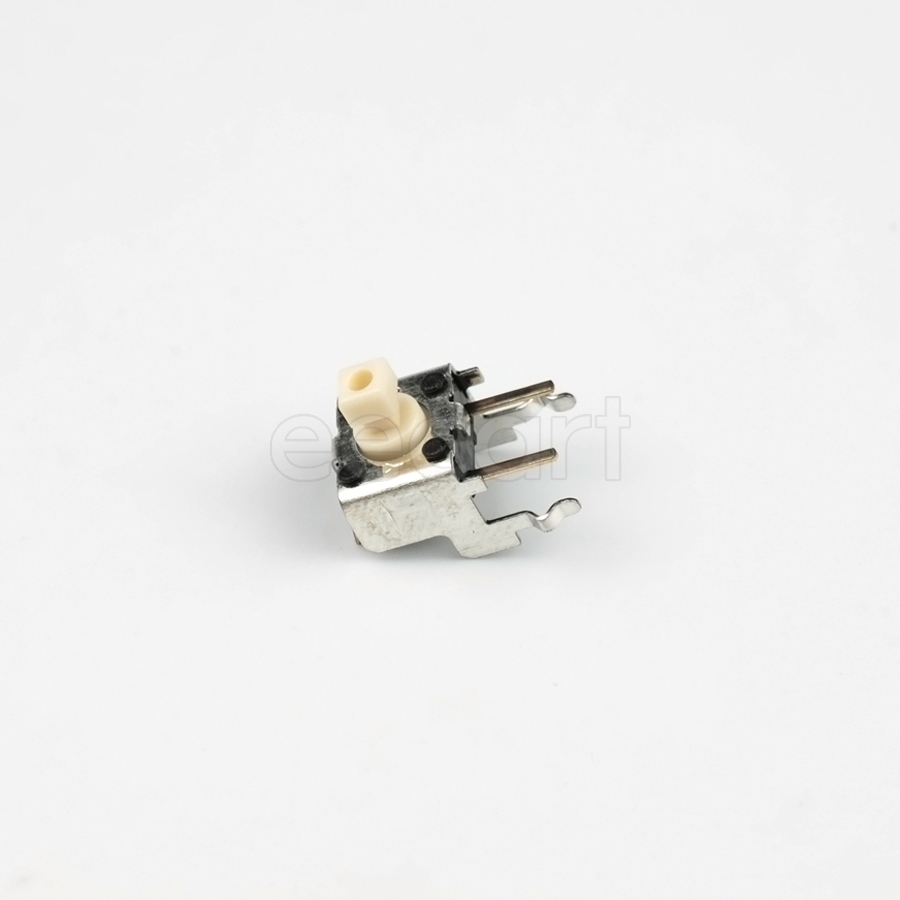

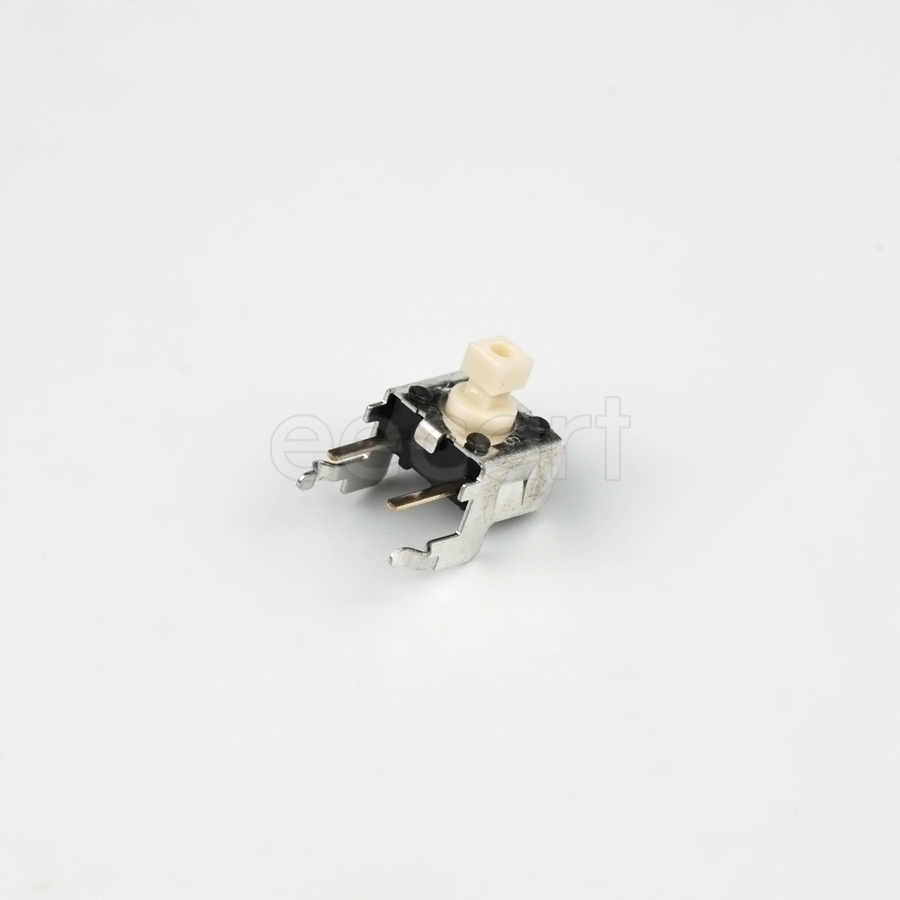

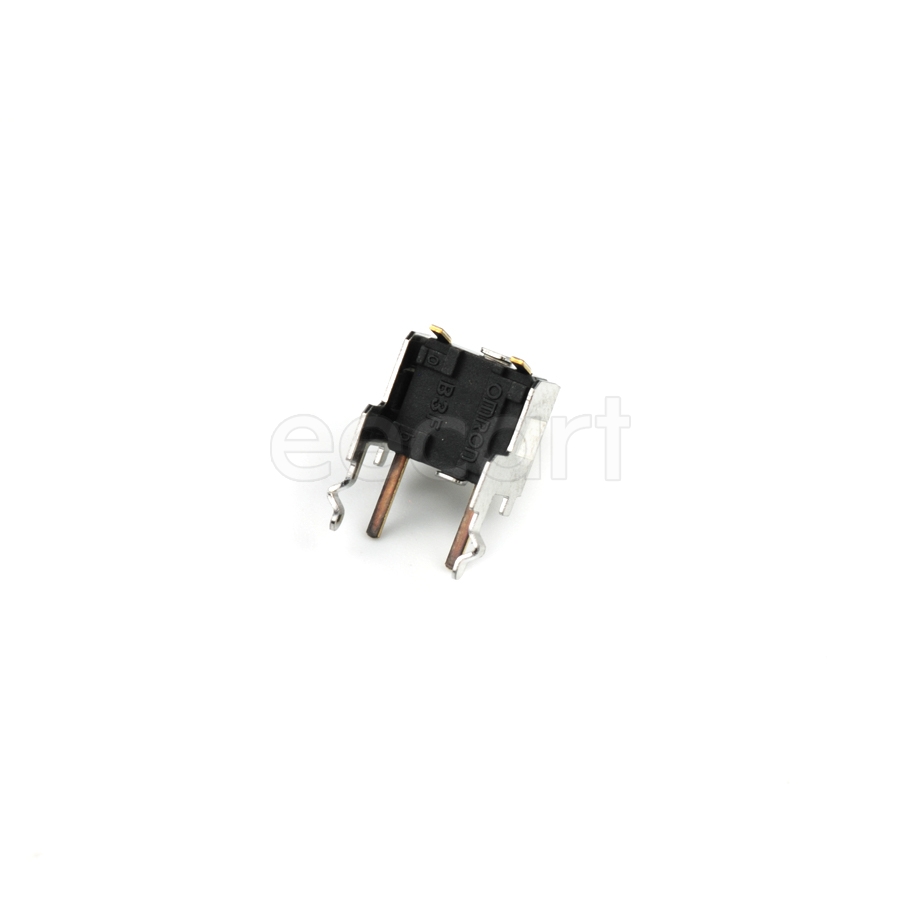

B3F-3150
Manufacturer:
Omron
Mfr.Part #:
B3F-3150
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1 N Right Angle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | PC Pins |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 4 |
| Height | 7.8 mm |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 7.15 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | Unknown |
| Weight | 250 mg |
| Contact Plating | Gold, Silver |
| Contact Material(Contact Finish) | Gold, Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Actuator Length | 6.15 mm |
| Ambient Temperature Range High | 70 °C |
| Number of Poles | 1 |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 1 Mcycles |
| Operating Force | 1 N |
| Switch Travel | 250 µm |
| Mechanical Life | 1 Mcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Plunger for Cap |
| Life (Cycles) | 1 MCycles |
| Mounting Direction | Right Angle |
Stock: 3
Distributors
pcbx
pcbxUnit Price$0.18730
Ext.Price$0.18730
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18730 | $0.18730 |
| 10 | $0.16236 | $1.62360 |
| 50 | $0.14074 | $7.03700 |
| 100 | $0.12212 | $12.21200 |
