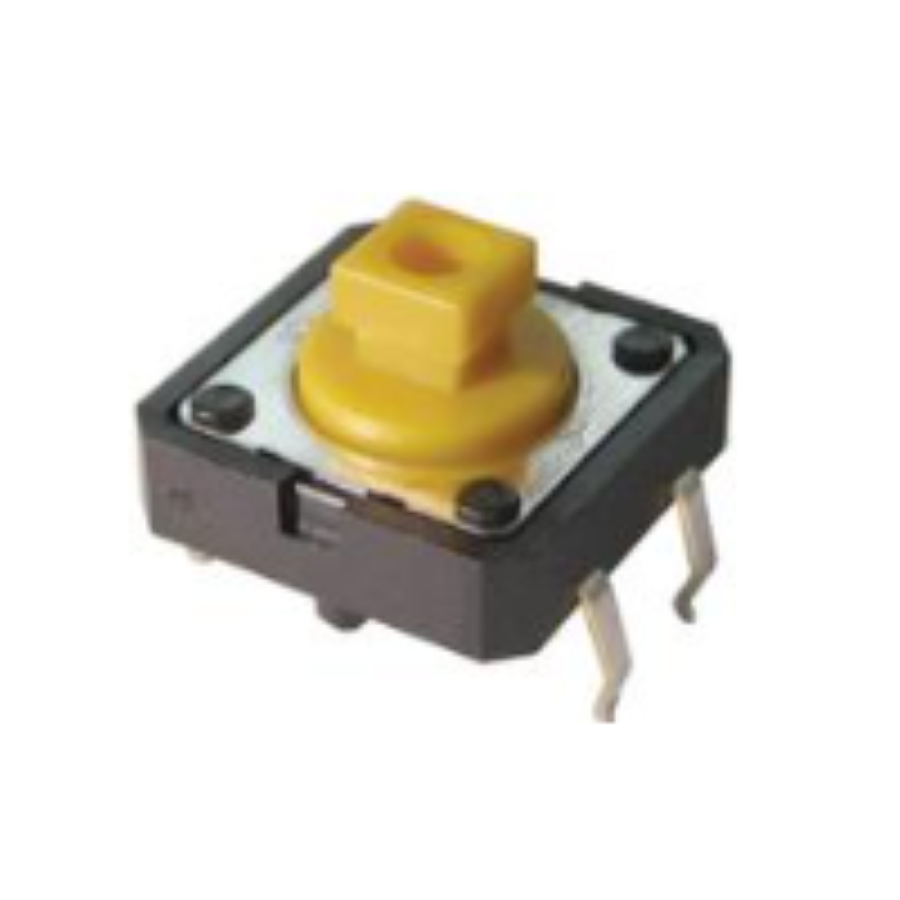

B3F-4055
Manufacturer:
Omron
Mfr.Part #:
B3F-4055
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 2.55 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 24 V |
| Length | 12 mm |
| Width | 12 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 4 |
| Height | 7.3 mm |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Depth | 12 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 0.85 g |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Current Rating | 50 mA |
| Max Voltage Rating (DC) | 24 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 11 months ago) |
| Color | Black |
| Actuator Length | 3 mm |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | SPST |
| Number of Positions | 2 |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 1 Mcycles |
| Operating Force | 2.55 N |
| Switch Travel | 300 µm |
| Mechanical Life | 1 Mcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Plunger for Cap |
| Life (Cycles) | 1 MCycles |
| IP Rating(Ingress Protection) | IP00 |
| Mounting Direction | Straight |
| Cap Color | Yellow |
Stock: 95969
Distributors
pcbx
pcbxUnit Price$0.08467
Ext.Price$0.08467
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08467 | $0.08467 |
| 10 | $0.07559 | $0.75590 |
| 50 | $0.06749 | $3.37450 |
| 100 | $0.05918 | $5.91800 |
| 500 | $0.05190 | $25.95000 |
| 1000 | $0.05061 | $50.61000 |
| 3000 | $0.04935 | $148.05000 |
| 5000 | $0.04812 | $240.60000 |
