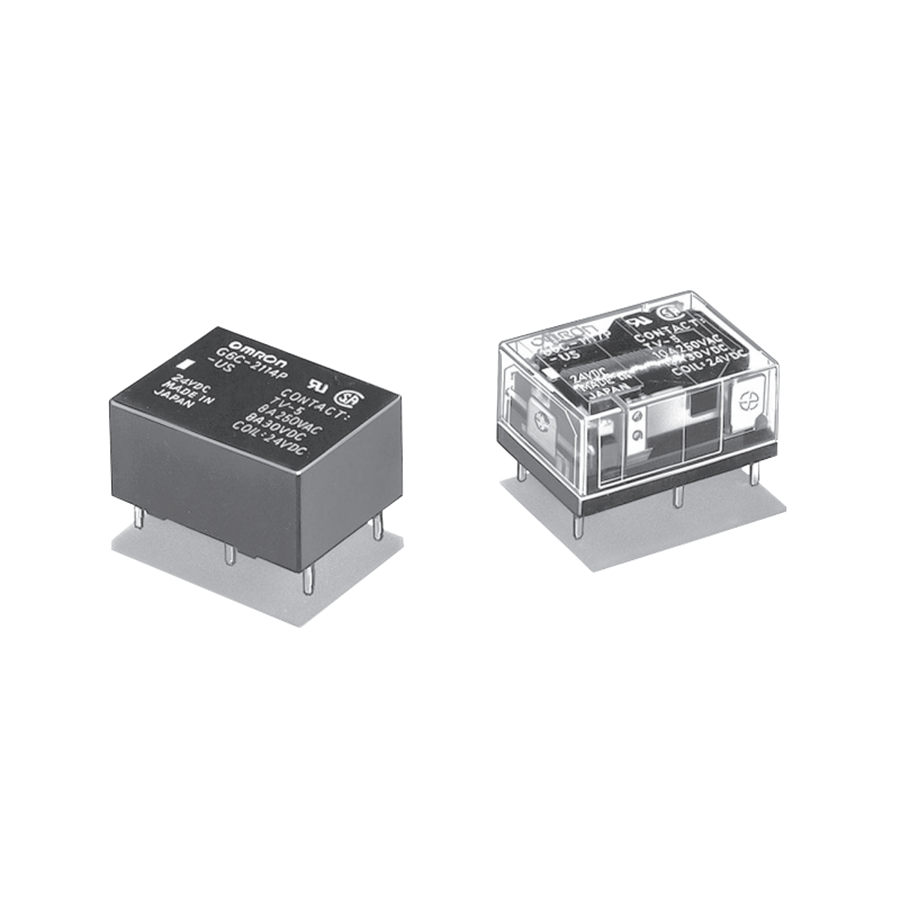

G6C-1117P-US-DC5
Manufacturer:
Omron
Mfr.Part #:
G6C-1117P-US-DC5
Datasheet:
Description:
Power Relays Through Hole 40 mA 125 Ω 5 V General Purpose
| Parameter | Value |
|---|---|
| Length | 20.1 mm |
| Width | 15 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 4 |
| Height | 9.9 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Weight | 5.6 g |
| Contact Material(Contact Finish) | Cadmium, Silver |
| Max Current Rating | 10 A |
| Max Voltage Rating (DC) | 125 V |
| Throw Configuration | SPST |
| Max Voltage Rating (AC) | 380 V |
| Coil Voltage (DC) | 5 V |
| Coil Current | 40 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 125 Ω |
| Relay Type | General Purpose |
| Operate Time | 10 ms |
| Release Time | 10 ms |
| Contact Current Rating | 10 A |
| power consumption | 200 mW |
| Termination Style | PC Pin |
| Switching Voltage | 380 V, 125 V |
| Coil Power | 200 mW |
| Must Operate Voltage | 3.5 V |
| Must Release Voltage | 500 mV |
Stock: 307
Distributors
pcbx
pcbxUnit Price$3.78648
Ext.Price$3.78648
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.78648 | $3.78648 |
| 10 | $3.43596 | $34.35960 |
| 25 | $3.11622 | $77.90550 |
| 50 | $3.05317 | $152.65850 |
| 100 | $2.99140 | $299.14000 |
| 300 | $2.87635 | $862.90500 |
| 500 | $2.76570 | $1382.85000 |
| 1000 | $2.63490 | $2634.90000 |
