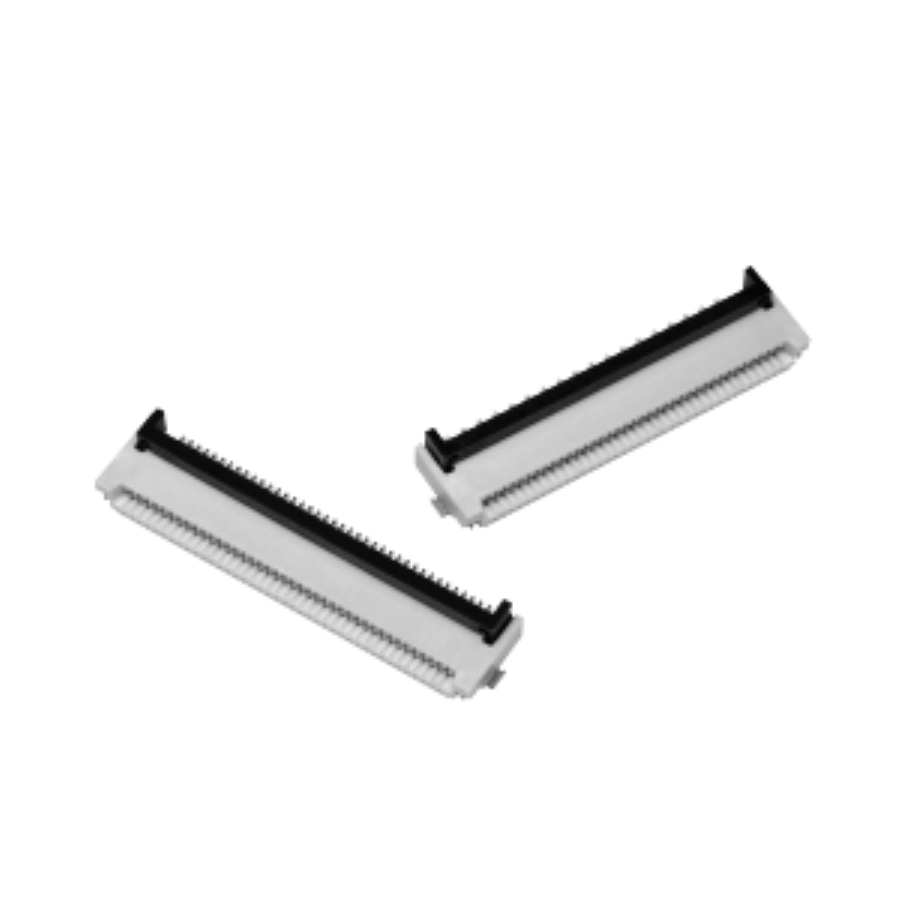

XF3M-4515-1B
Manufacturer:
Omron
Mfr.Part #:
XF3M-4515-1B
Datasheet:
Description:
FFC / FPC SMD/SMT Number of Positions:45 500 mA 50 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 50 V |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Pitch | 500 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Number of Contacts | 45 |
| Number of Positions | 45 |
| Number of Rows | 1 |
| Housing Material | Polymer |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Mounting Angle | Right Angle |
Stock: 883
Distributors
pcbx
pcbxUnit Price$1.13278
Ext.Price$1.13278
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.13278 | $1.13278 |
| 10 | $1.12804 | $11.28040 |
| 25 | $1.12332 | $28.08300 |
| 50 | $1.11862 | $55.93100 |
| 100 | $1.11397 | $111.39700 |
| 300 | $1.07570 | $322.71000 |
| 500 | $1.03874 | $519.37000 |
| 1000 | $0.92589 | $925.89000 |
