XG4A-2631
Manufacturer:
Omron
Mfr.Part #:
XG4A-2631
Datasheet:
Description:

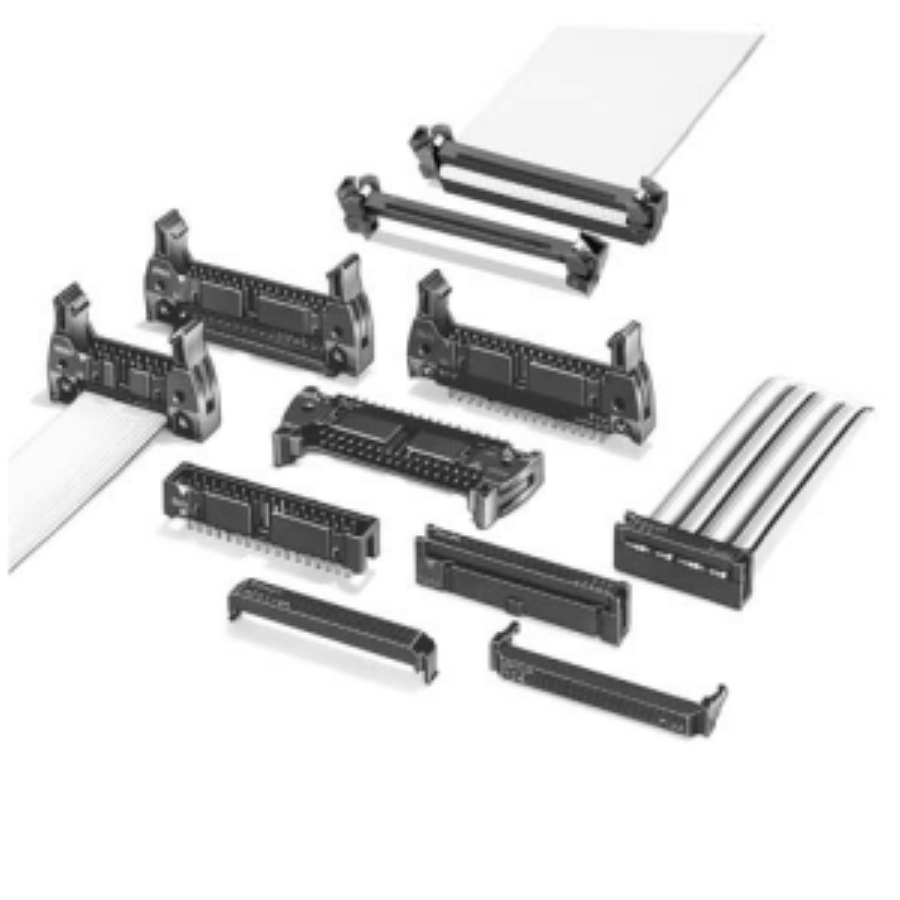

Headers and Wire Housings Through Hole Male Pin Number of Positions:26 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 52.3 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 300 V |
| Packaging | Tray |
| Voltage Rating | 300 V |
| Depth | 8.5 mm |
| RoHS | Compliant |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 8 months ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 26 |
| Connector Type | Male Pin |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Housing Material | Polybutylene |
| Fastening Type | Latch |
| Contact Resistance | 20 mΩ |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Black |
| Contact Gender | Male |
| Mating Post Length | 6.1 mm |
| Termination Post Length | 3.2 mm |
Stock: 34
Distributors
pcbx
pcbxUnit Price$1.22131
Ext.Price$1.22131
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.22131 | $1.22131 |
| 10 | $1.01386 | $10.13860 |
| 25 | $0.92923 | $23.23075 |
| 50 | $0.85166 | $42.58300 |
| 100 | $0.78056 | $78.05600 |
| 300 | $0.75104 | $225.31200 |
| 500 | $0.72265 | $361.32500 |
| 1000 | $0.69733 | $697.33000 |
