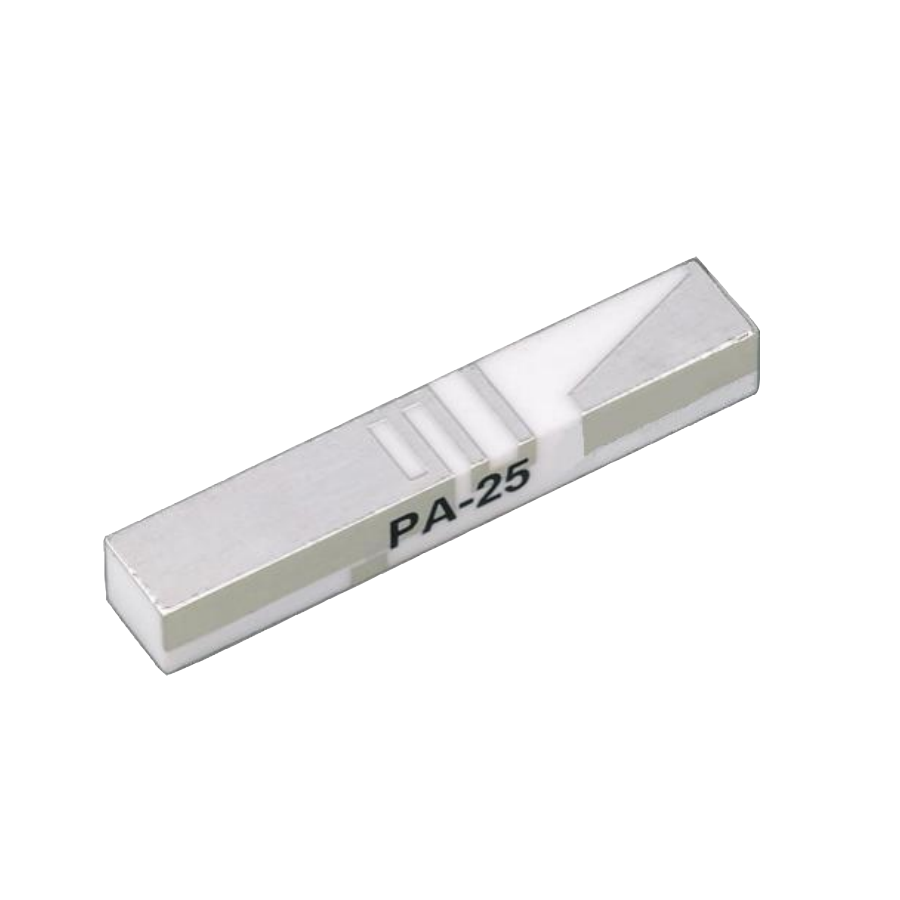

PA.25A
Manufacturer:
Taoglas
Mfr.Part #:
PA.25A
Datasheet:
Description:
RF - Antennas SMD/SMT 800 MHz to 2.2 GHz 1.49 dBi, 1.76 dBi, 2.4 dBi, 2.53 dBi, 2.46 dBi, 4.62 dBi
| Parameter | Value |
|---|---|
| Length | 35 mm |
| Width | 6 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 6 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Impedance | 50 Ω |
| Frequency | 800 MHz to 2.2 GHz |
| Gain | 1.49 dBi, 1.76 dBi, 2.4 dBi, 2.53 dBi, 2.46 dBi, 4.62 dBi |
| Number of Bands | 6 |
| Max Frequency | 2.17 GHz |
| Return Loss | -6.4 dB, -12.7 dB, -10.8 dB, -13.5 dB |
| Frequency Range | 800 MHz to 2.2 GHz |
| Frequency Group | Wide Band |
| Antenna Type | Chip |
| Applications | Cellular |
| VSWR | 3:1 |
| Power - Max | 5 W |
Stock: 4452
Distributors
pcbx
pcbxUnit Price$3.84890
Ext.Price$3.84890
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.84890 | $3.84890 |
| 10 | $3.35474 | $33.54740 |
| 25 | $3.10425 | $77.60625 |
| 50 | $2.96340 | $148.17000 |
| 100 | $2.82896 | $282.89600 |
| 300 | $2.68895 | $806.68500 |
| 500 | $2.55587 | $1277.93500 |
| 1000 | $2.42937 | $2429.37000 |
| 3000 | $2.30917 | $6927.51000 |
