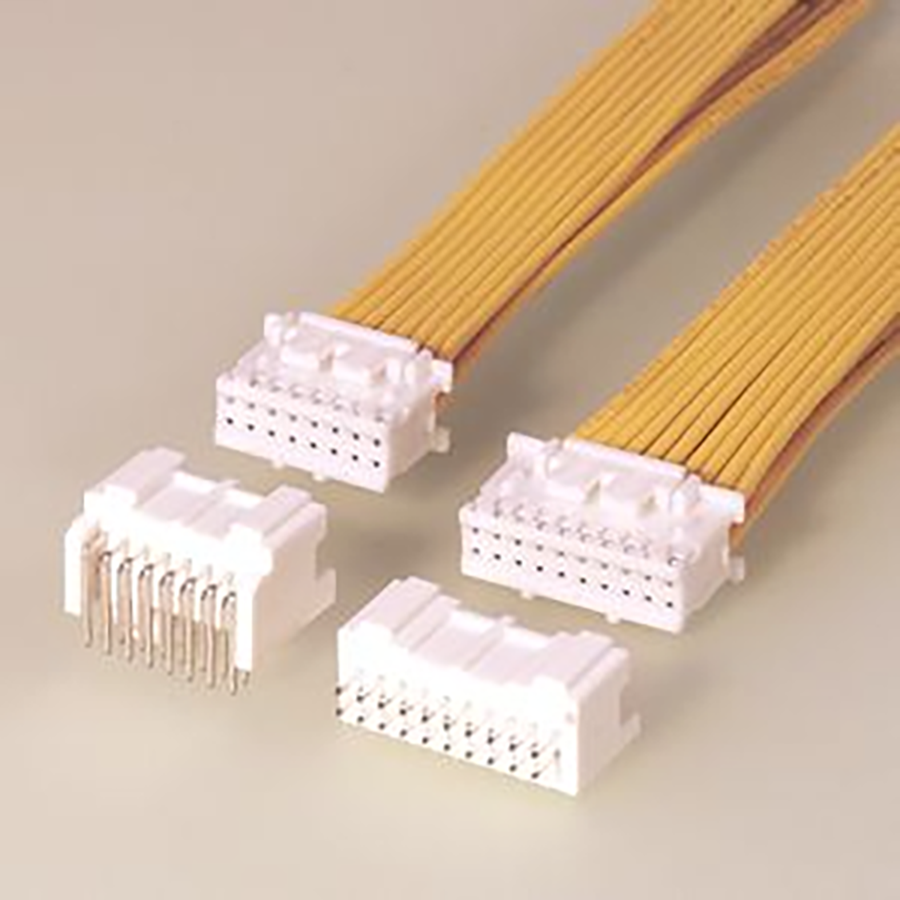

PADP-16V-1-S
Manufacturer:
JST
Mfr.Part #:
PADP-16V-1-S
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Housing Number of Positions:16 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 18 mm |
| Width | 10 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Bulk |
| Depth | 11 mm |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 2 mm |
| Orientation | Straight |
| Color | Natural |
| Gender | Female |
| Number of Contacts | 16 |
| Connector Type | Housing |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing | 2 mm |
| Housing Material | Polyamide |
| Fastening Type | Latch |
| Mating Post Length | |
| Termination Post Length |
Stock: 20337
Distributors
pcbx
pcbxUnit Price$0.18979
Ext.Price$0.18979
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.18979 | $0.18979 |
| 10 | $0.14150 | $1.41500 |
| 50 | $0.11657 | $5.82850 |
| 100 | $0.09603 | $9.60300 |
| 500 | $0.08449 | $42.24500 |
| 1000 | $0.07750 | $77.50000 |
