PAM8301AAF
Manufacturer:
Diodes Incorporated
Mfr.Part #:
PAM8301AAF
Datasheet:
Description:

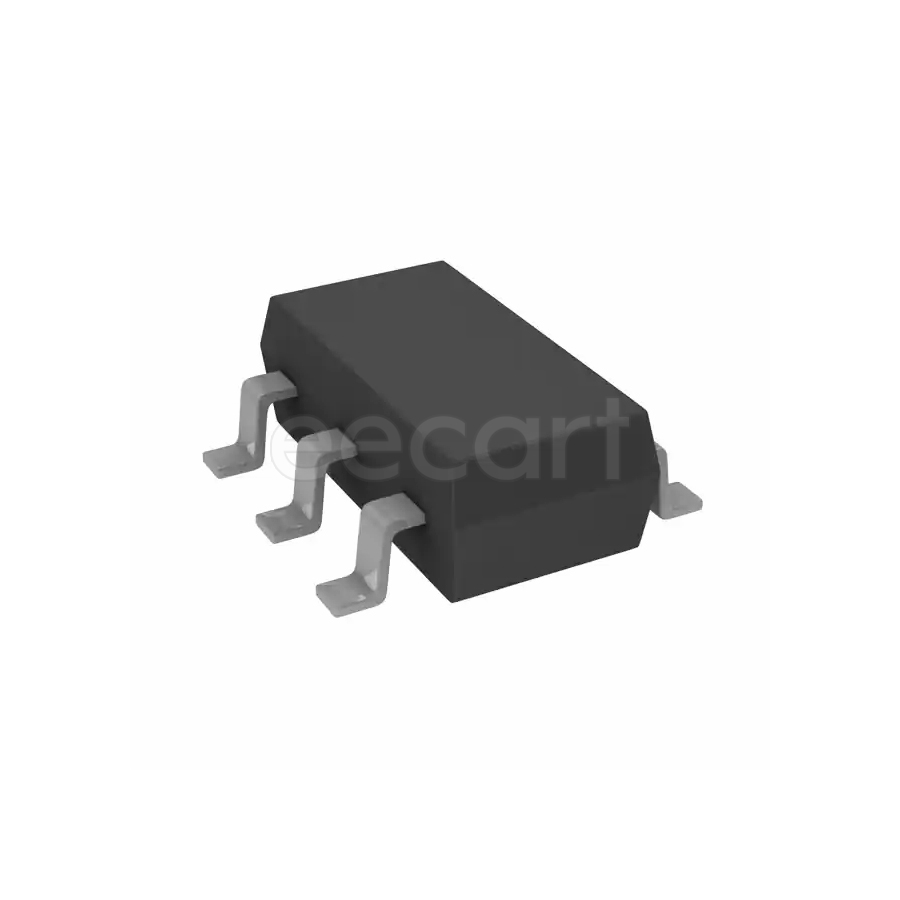

Amplifiers - Audio SOT-23-6 SMD/SMT 1-Channel Power Amplifier 1.5 W
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Radiation Hardening | No |
| Operating Supply Voltage | 5 V |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.5 V |
| Number of Channels | 1 |
| Operating Supply Current | 4 mA |
| Output Power | 1.5 W |
| Voltage Gain | 24 dB |
| Signal to Noise Ratio (SNR) | 78 dB |
| Power Supply Rejection Ratio (PSRR) | 45 dB |
| Max Output Power | 1.5 W |
| Schedule B | 8542330000 |
| Load Impedance | 8 Ω |
| RoHS | Compliant |
| Packaging | Reel |
| Type | 1-Channel Power Amplifier |
| Output Type | 1-Channel (Mono) |
Stock: 2114
Distributors
pcbx
pcbxUnit Price$0.22570
Ext.Price$0.22570
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.22570 | $0.22570 |
| 10 | $0.21050 | $2.10500 |
| 50 | $0.19632 | $9.81600 |
| 100 | $0.17790 | $17.79000 |
| 500 | $0.16121 | $80.60500 |
| 1000 | $0.15844 | $158.44000 |
| 3000 | $0.15572 | $467.16000 |
| 5000 | $0.15151 | $757.55000 |
