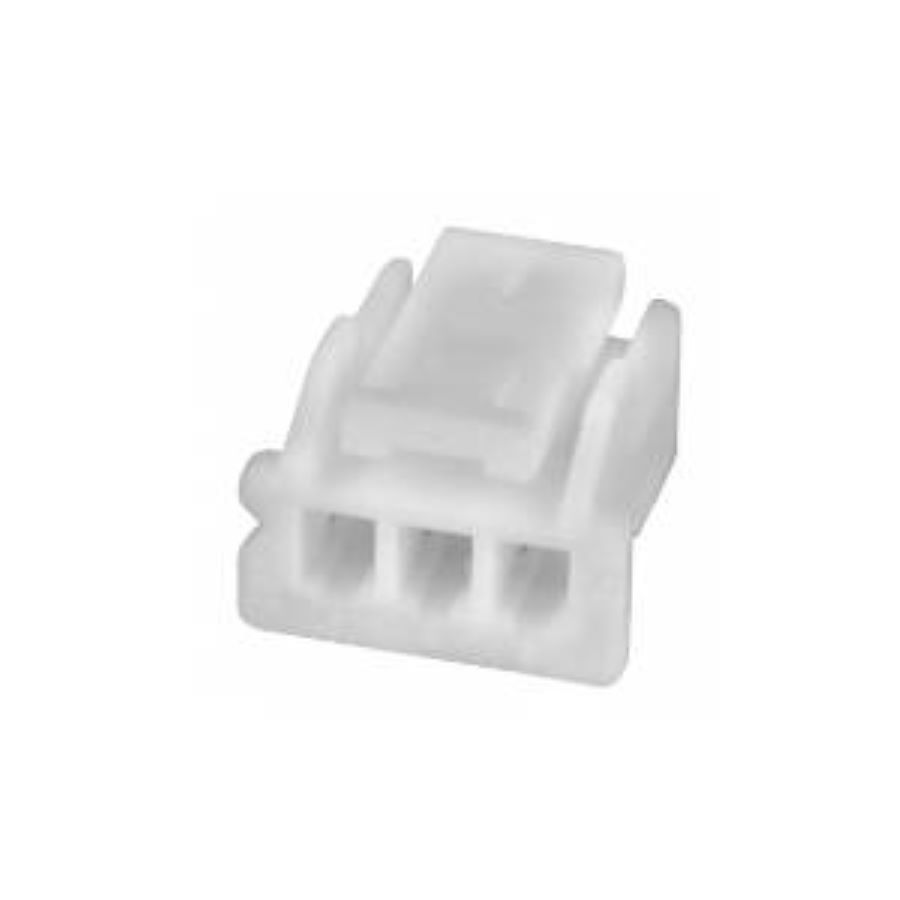

PAP-03V-S
Manufacturer:
JST
Mfr.Part #:
PAP-03V-S
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:3 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Width | 5.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 3 |
| Packaging | Bulk |
| Depth | 8 mm |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 3 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | White |
Stock: 4789
Distributors
pcbx
pcbxUnit Price$0.10060
Ext.Price$0.10060
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10060 | $0.10060 |
| 10 | $0.05030 | $0.50300 |
| 50 | $0.04537 | $2.26850 |
| 100 | $0.04093 | $4.09300 |
| 500 | $0.03636 | $18.18000 |
| 1000 | $0.03230 | $32.30000 |
| 3000 | $0.03092 | $92.76000 |
| 5000 | $0.02960 | $148.00000 |
| 10000 | $0.02813 | $281.30000 |
