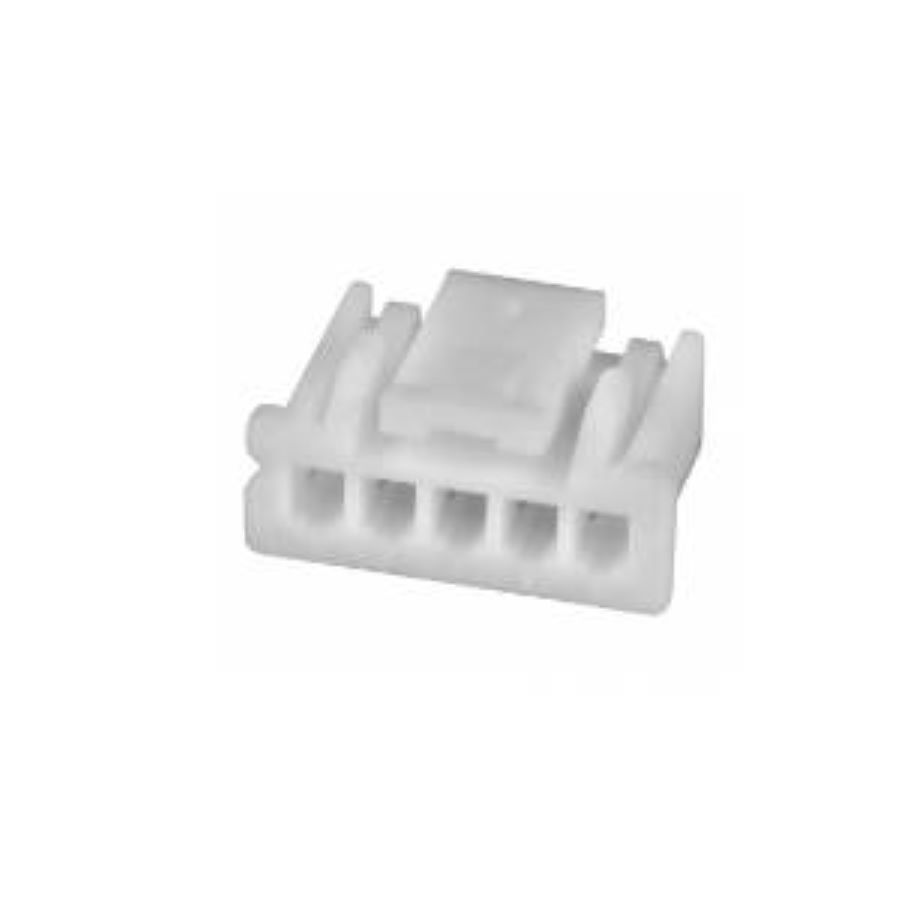

PAP-05V-S
Manufacturer:
JST
Mfr.Part #:
PAP-05V-S
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Housing Number of Positions:5 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 12 mm |
| Width | 5.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 5 |
| Height | 5.8 mm |
| Packaging | Bulk |
| Depth | 8 mm |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | Unknown |
| Pitch | 2 mm |
| Orientation | Straight |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 5 |
| Number of Poles | 5 |
| Connector Type | Housing |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Fastening Type | Latch |
| Mating Post Length | |
| Schedule B | 8536695050 |
| Termination Post Length |
Stock: 13732
Distributors
pcbx
pcbxUnit Price$0.19046
Ext.Price$0.19046
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19046 | $0.19046 |
| 10 | $0.09523 | $0.95230 |
| 50 | $0.08526 | $4.26300 |
| 100 | $0.07634 | $7.63400 |
| 500 | $0.06474 | $32.37000 |
| 1000 | $0.05490 | $54.90000 |
| 3000 | $0.05212 | $156.36000 |
| 5000 | $0.04949 | $247.45000 |
| 10000 | $0.04645 | $464.50000 |
