PBH2UEESNPNAGX
Manufacturer:
E-Switch
Mfr.Part #:
PBH2UEESNPNAGX
Datasheet:
Description:

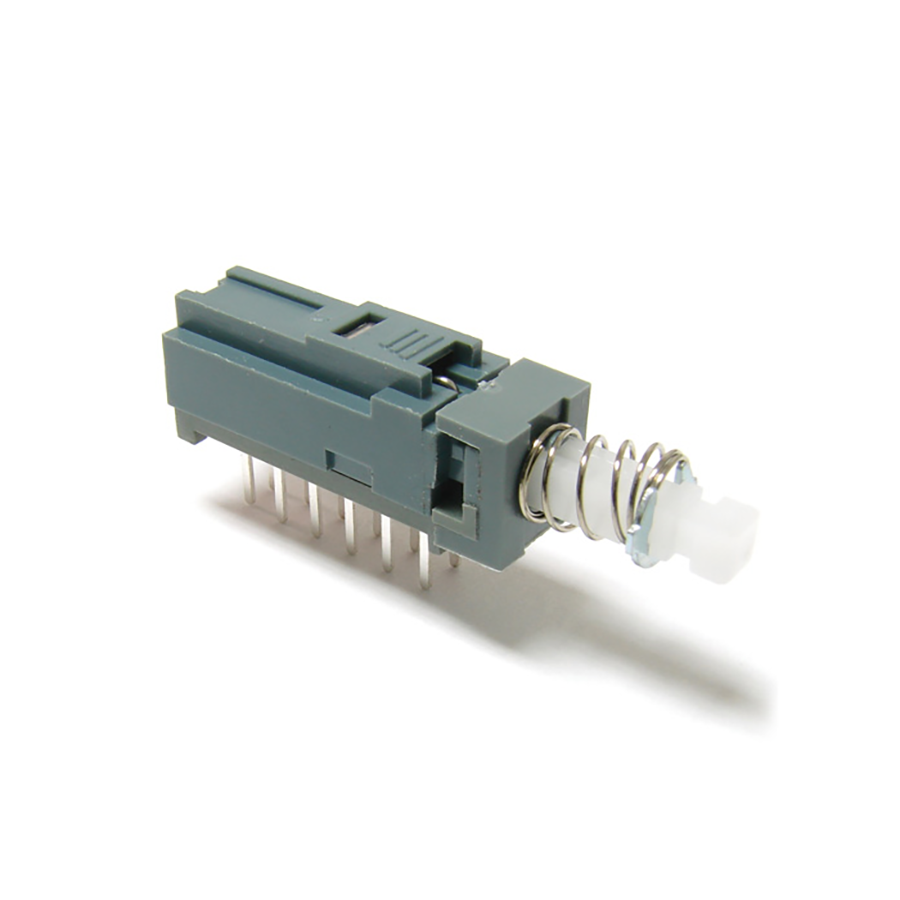

Pushbutton Switches Through Hole DPDT ON - ON Plunger for Cap Standard Current Rating:100 mA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 30 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | DPDT |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Silver |
| Type | Standard |
| Current Rating | 100 mA |
| Throw Configuration | DPDT, SPDT |
| Switch Function | ON - ON |
| Electrical Life | 10 kcycles |
| Mechanical Life | 30 kcycles |
| Contact Current Rating | 100 mA |
| Actuator Type | Plunger for Cap |
| Termination Style | PC Pin |
Stock: 1251
Distributors
pcbx
pcbxUnit Price$0.52582
Ext.Price$0.52582
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.52582 | $0.52582 |
| 10 | $0.45674 | $4.56740 |
| 25 | $0.43049 | $10.76225 |
| 50 | $0.41195 | $20.59750 |
| 100 | $0.39406 | $39.40600 |
| 300 | $0.37402 | $112.20600 |
| 500 | $0.35500 | $177.50000 |
| 1000 | $0.33694 | $336.94000 |
