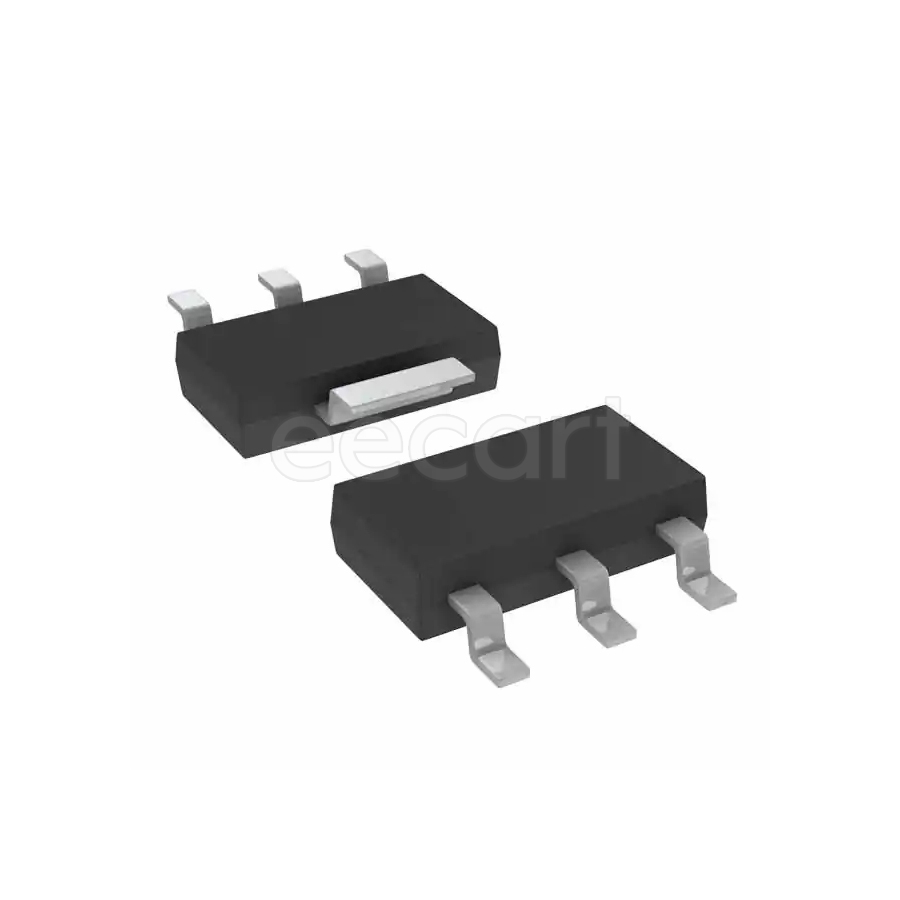

PBHV9560ZX
Manufacturer:
Nexperia
Mfr.Part #:
PBHV9560ZX
Datasheet:
Description:
BJTs TO-261-4 SMD/SMT PNP 650 mW Collector Base Voltage (VCBO):600 V Collector Emitter Voltage (VCEO):600 V Emitter Base Voltage (VEBO):6 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | PNP |
| Contact Plating | Tin |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Max Power Dissipation | 650 mW |
| Power Dissipation | 650 mW |
| Max Collector Current | 500 mA |
| Collector Emitter Breakdown Voltage | 600 V |
| Transition Frequency | 38 MHz |
| Collector Emitter Voltage (VCEO) | 600 V |
| Max Breakdown Voltage | 600 V |
| Gain Bandwidth Product | 38 MHz |
| Collector Base Voltage (VCBO) | 600 V |
| Collector Emitter Saturation Voltage | 900 mV |
| Emitter Base Voltage (VEBO) | 6 V |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY (Last Updated: 1 day ago) |
| Max Cutoff Collector Current | 100 nA |
| Transistor Type | PNP |
Out of Stock
