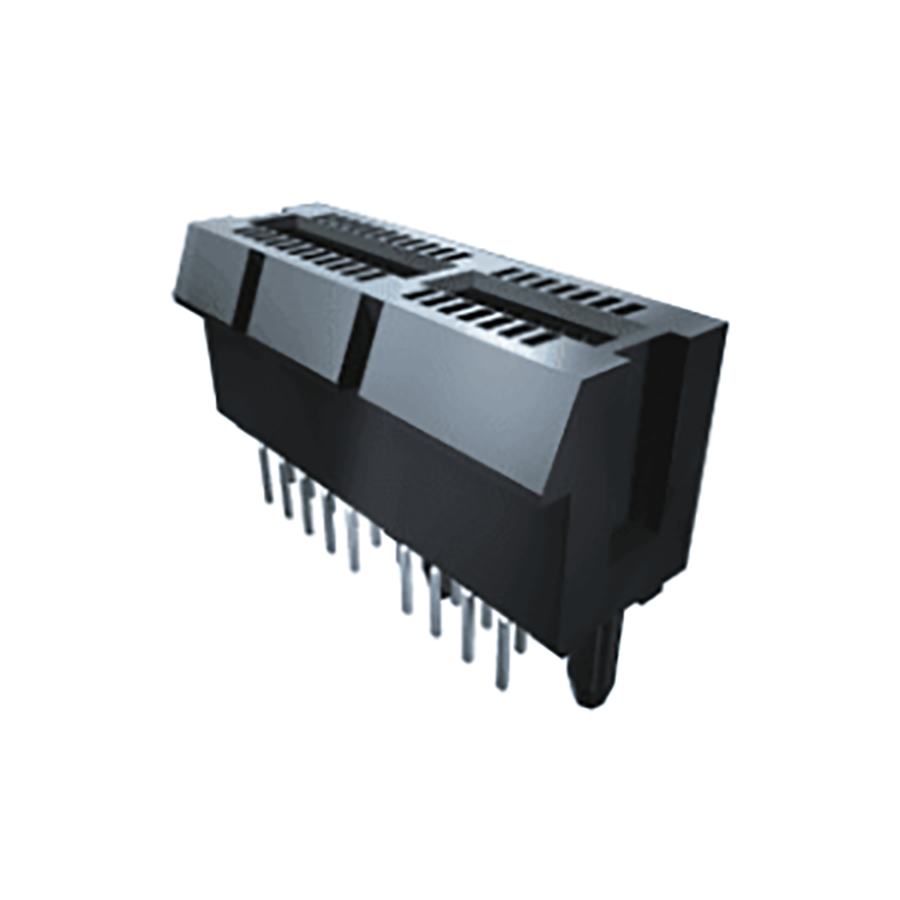

PCIE-164-02-F-D-TH
Manufacturer:
Samtec
Mfr.Part #:
PCIE-164-02-F-D-TH
Datasheet:
Description:
Edgeboard Connectors Through Hole Female Vertical Number of Positions:164
| Parameter | Value |
|---|---|
| Length | 89 mm |
| Width | 7.5 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tube |
| Depth | 11 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 1 mm |
| Current Rating | 2.5 A |
| Orientation | Straight |
| Gender | Female |
| Number of Contacts | 164 |
| Number of Positions | 164 |
| Number of Rows | 2 |
| Insulation Material | Nylon |
| Card Thickness | 1.57 mm |
| Housing Material | Nylon |
| Housing Color | Black |
| Mounting Angle | Vertical |
| Card Type | PCI Express |
Stock: 1462
Distributors
pcbx
pcbxUnit Price$2.35277
Ext.Price$2.35277
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.35277 | $2.35277 |
| 10 | $2.14270 | $21.42700 |
| 25 | $1.95139 | $48.78475 |
| 50 | $1.77716 | $88.85800 |
| 100 | $1.61848 | $161.84800 |
| 300 | $1.47397 | $442.19100 |
| 500 | $1.34236 | $671.18000 |
| 1000 | $1.22251 | $1222.51000 |
| 3000 | $1.11336 | $3340.08000 |
| 5000 | $1.01394 | $5069.70000 |
