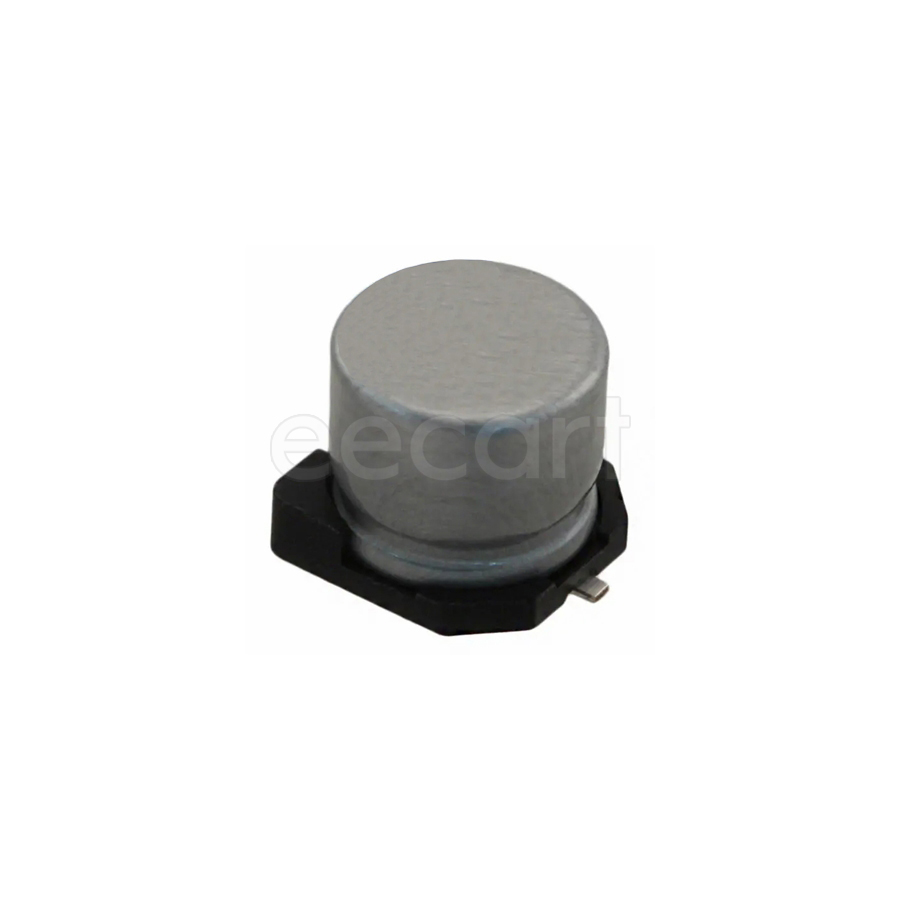

PCS0J121MCL9GS
Manufacturer:
Nichicon
Mfr.Part #:
PCS0J121MCL9GS
Datasheet:
Description:
Polymer Capacitors 6.3mmD×6mmH SMD/SMT 120 µF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 120 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 22 mΩ |
| Life (Hours) | 5000 Hours |
| Ripple Current | 2.8 A |
| Height - Seated (Max) | 6 mm |
| Length | 6 mm |
| Termination | SMD/SMT |
| Diameter | 6.3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Leakage Current | 151 µA |
| Height | 6 mm |
| Voltage Rating | 6.3 V |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 6.3 V |
| Contact Plating | Silver |
| Ripple Current (AC) | 2.8 A |
| Lifecycle Status | Production (Last Updated: 10 months ago) |
| Schedule B | 8532220020 |
| Ripple Current @ High Frequency | 2.8 A @ 100 kHz |
| Packaging | Reel |
| Lead Pitch | 2.1 mm |
Stock: 2
Distributors
pcbx
pcbxUnit Price$0.93891
Ext.Price$0.93891
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.93891 | $0.93891 |
| 10 | $0.60564 | $6.05640 |
| 25 | $0.53205 | $13.30125 |
| 50 | $0.46740 | $23.37000 |
| 100 | $0.42353 | $42.35300 |
| 300 | $0.38400 | $115.20000 |
| 500 | $0.34816 | $174.08000 |
| 1000 | $0.32442 | $324.42000 |
