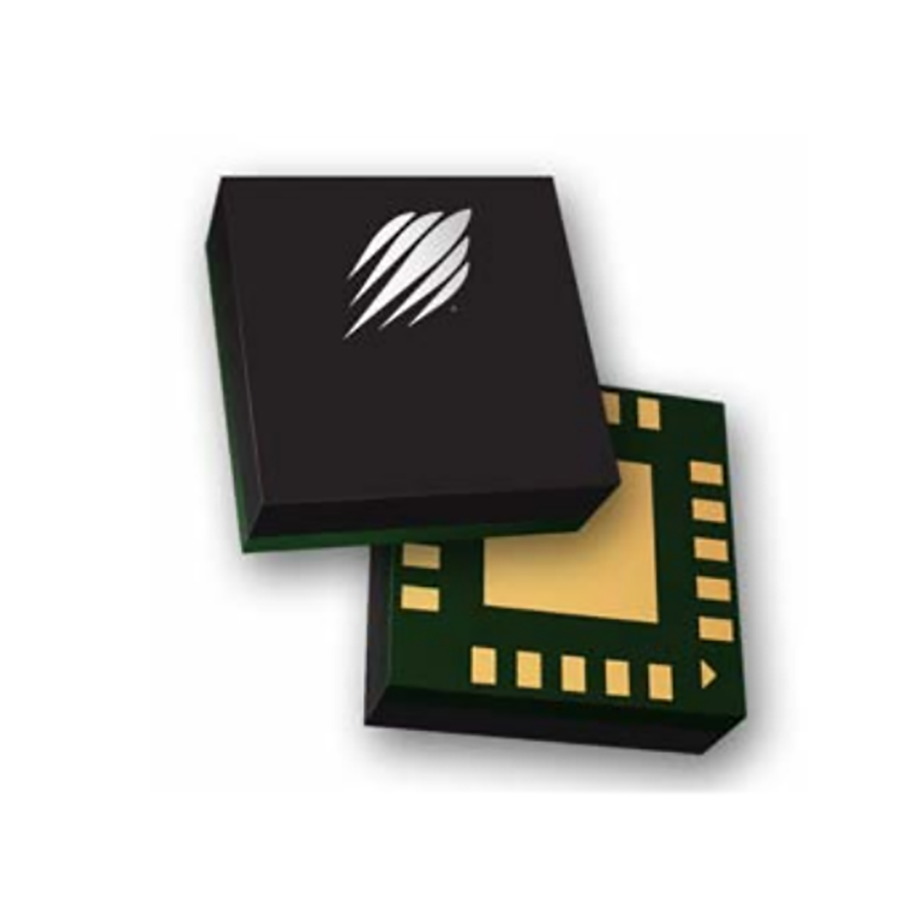

PE42420E-Z
Manufacturer:
Murata
Mfr.Part #:
PE42420E-Z
Datasheet:
Description:
RF Semiconductors and Devices LGA-20 SMD/SMT 3.05 GHz
| Parameter | Value |
|---|---|
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Circuit Type | SPDT |
| Packaging | Reel |
| RoHS | Compliant |
| Frequency | 3.05 GHz |
| Interface | CMOS |
| Insertion Loss (dB) | 1.6 dB |
| Operating Supply Voltage | 3 V |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.7 V |
| Operating Supply Current | 120 µA |
| Gain | |
| Supply Voltage | 2.7 V to 5.5 V |
| Isolation | 50 dB |
| Frequency Range | 20 MHz to 6 GHz |
Stock: 439
Distributors
pcbx
pcbxUnit Price$1.73978
Ext.Price$1.73978
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.73978 | $1.73978 |
| 10 | $1.63518 | $16.35180 |
| 25 | $1.53687 | $38.42175 |
| 50 | $1.44447 | $72.22350 |
| 100 | $1.35763 | $135.76300 |
| 300 | $1.32582 | $397.74600 |
| 500 | $1.29476 | $647.38000 |
| 1000 | $1.26444 | $1264.44000 |
| 3000 | $1.07037 | $3211.11000 |
| 5000 | $1.06715 | $5335.75000 |
| 10000 | $1.06394 | $10639.40000 |
| 30000 | $1.06074 | $31822.20000 |
| 60000 | $1.05755 | $63453.00000 |
