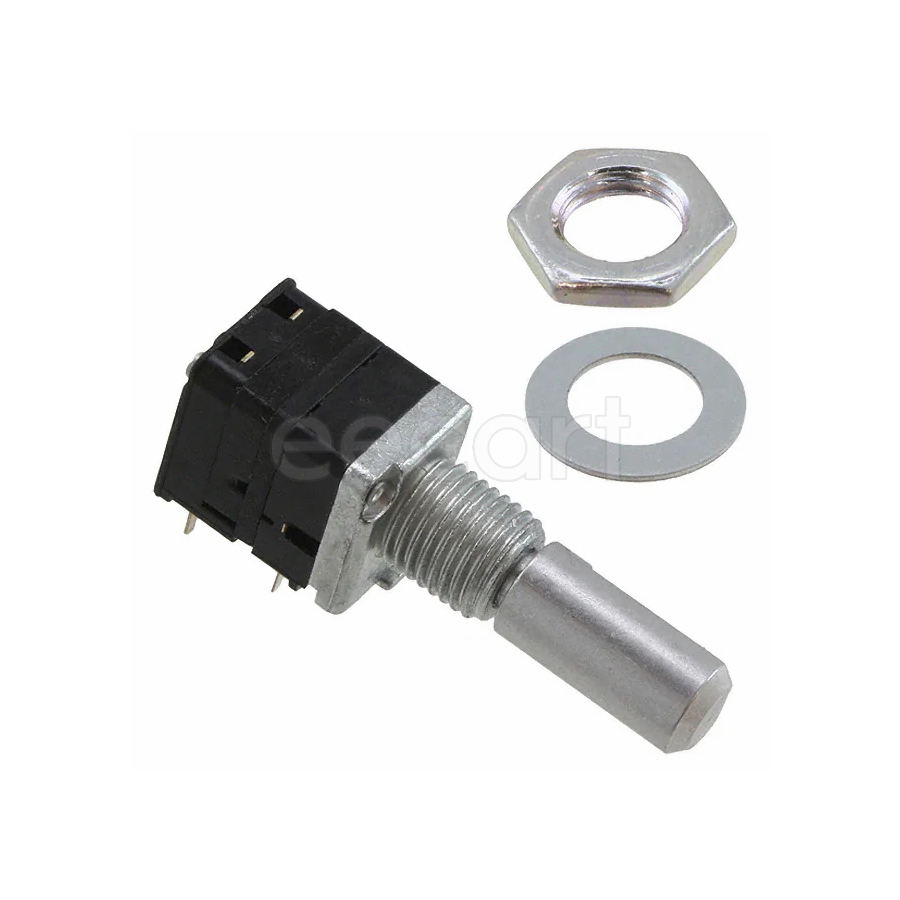

PEC09-2120F-S0012
Manufacturer:
Bourns
Mfr.Part #:
PEC09-2120F-S0012
Datasheet:
Description:
Encoders Through Hole Incremental 12 bit number of detents:12 Incremental, Quadrature D/Flatted
| Parameter | Value |
|---|---|
| Capacitance | |
| Voltage Rating (DC) | 5 V |
| Length | 33.3 mm |
| Width | 9.7 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Height | 11.35 mm |
| Packaging | Tray |
| RoHS | Compliant |
| Polarity | |
| REACH SVHC | No SVHC |
| Current Rating | 10 mA |
| Number of Circuits | 1 |
| Orientation | Right Angle |
| Operating Supply Voltage | 5 V |
| Output Type | Incremental, Quadrature |
| Number of Channels | 2 |
| Encoder Type | Incremental |
| Built in Switch | Yes |
| Detent | Yes |
| Pulses per Revolution | 12 |
| Number of Detents | 12 |
| Resolution | 12 bit |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Type | D/Flatted |
Stock: 226
Distributors
pcbx
pcbxUnit Price$2.07150
Ext.Price$2.07150
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.07150 | $2.07150 |
| 10 | $1.66455 | $16.64550 |
| 25 | $1.54569 | $38.64225 |
| 50 | $1.43531 | $71.76550 |
| 100 | $1.33283 | $133.28300 |
| 300 | $1.30311 | $390.93300 |
| 500 | $1.27405 | $637.02500 |
| 1000 | $1.24563 | $1245.63000 |
