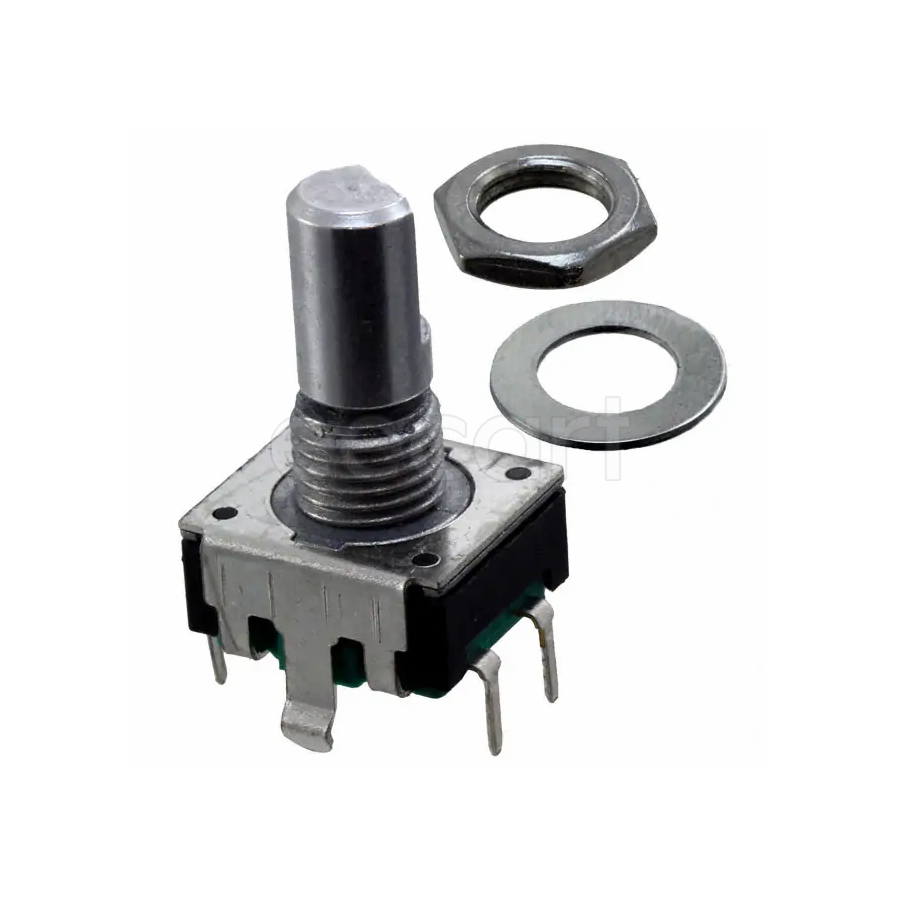

PEC11R-4215F-S0024
Manufacturer:
Bourns
Mfr.Part #:
PEC11R-4215F-S0024
Datasheet:
Description:
Encoders Through Hole Mechanical 24 PPR number of detents:24 Mechanical Incremental, Quadrature Shaft Diameter :6 mm D/Flatted
| Parameter | Value |
|---|---|
| Length | 21.5 mm |
| Width | 12.5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Height | 13.4 mm |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Mechanical |
| Orientation | Vertical |
| Output Type | Incremental, Quadrature |
| Hole Diameter | 1.8 mm |
| Number of Channels | 2 |
| Number of Positions | 18 |
| Housing Material | Metal |
| Encoder Type | Mechanical |
| Built in Switch | Yes |
| Detent | Yes |
| Pulses per Revolution | 24 |
| Schedule B | 8543709655 |
| Resolution | 24 PPR |
| Shaft Diameter | 6 mm |
| Actuator Type | 6mm Dia Flatted End |
| Life (Cycles) | 30 kCycles |
| Number of Detents | 24 |
| Chemistry/Technology | Rotary |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Type | D/Flatted |
Stock: 5004
Distributors
pcbx
pcbxUnit Price$1.13877
Ext.Price$1.13877
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.13877 | $1.13877 |
| 10 | $1.01394 | $10.13940 |
| 25 | $0.95593 | $23.89825 |
| 50 | $0.90124 | $45.06200 |
| 100 | $0.84968 | $84.96800 |
| 300 | $0.80107 | $240.32100 |
| 500 | $0.75258 | $376.29000 |
| 1000 | $0.70703 | $707.03000 |
