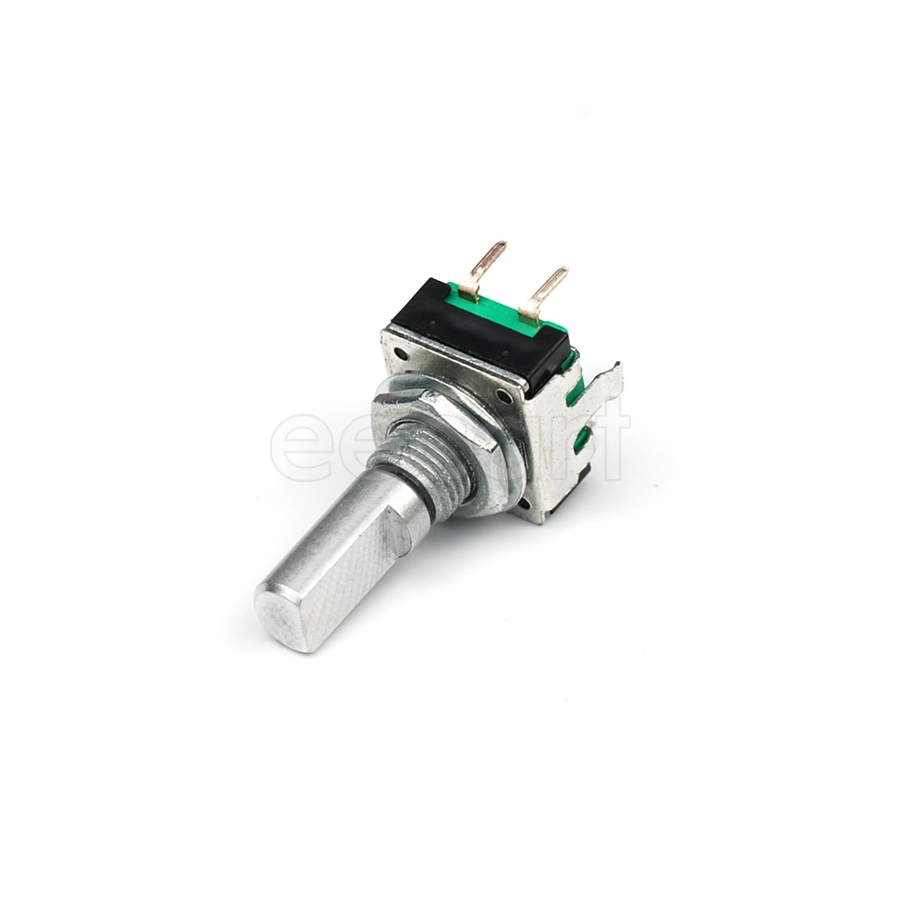

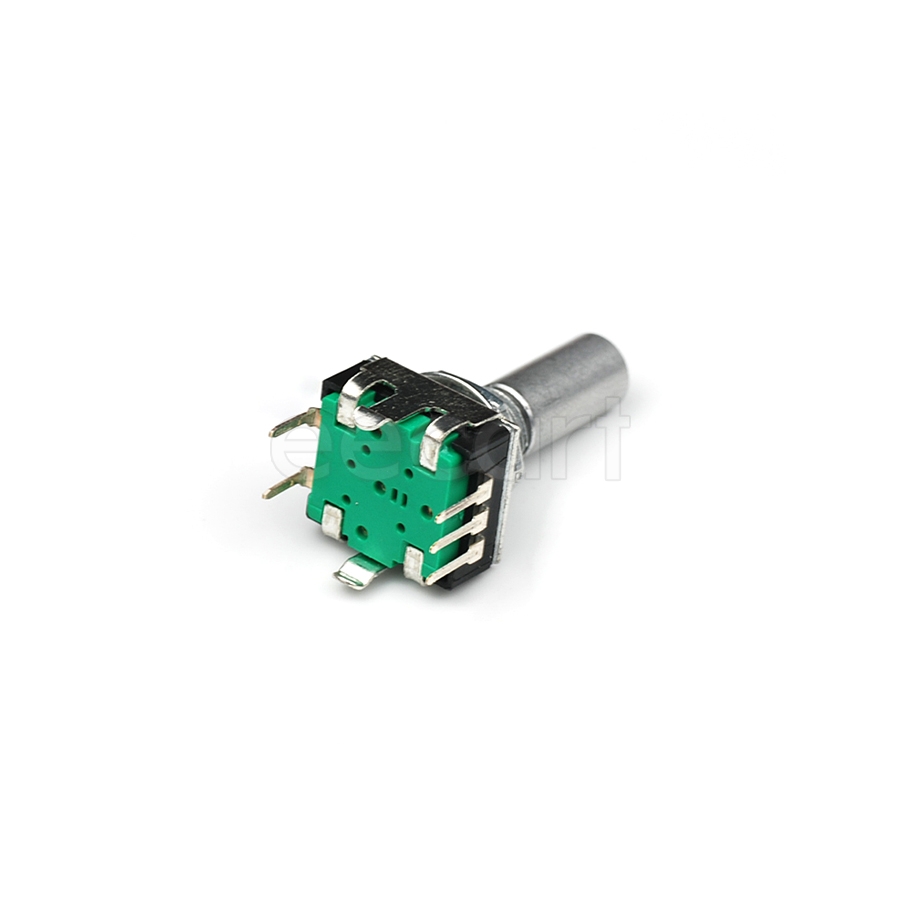

PEC11R-4220F-S0024
Manufacturer:
Bourns
Mfr.Part #:
PEC11R-4220F-S0024
Datasheet:
Description:
Encoders Through Hole Incremental 24 PPR number of detents:24 Mechanical Incremental, Quadrature Shaft Diameter :6 mm D/Flatted
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Length | 26.5 mm |
| Width | 12.5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 5 |
| Height | 13.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | PEC11R-4220F-S0024 |
| REACH SVHC | No SVHC |
| Type | Mechanical |
| Current Rating | 10 mA |
| Number of Circuits | 1 |
| Orientation | Vertical |
| Output Type | Incremental, Quadrature |
| Nominal Supply Voltage (DC) | 5 V |
| Hole Diameter | 1.8 mm |
| Number of Channels | 2 |
| Number of Positions | 24 |
| Housing Material | Metal |
| Encoder Type | Incremental |
| Built in Switch | Yes |
| Detent | Yes |
| Pulses per Revolution | 24 |
| Number of Detents | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Resolution | 24 PPR |
| Life (Cycles) | 30 kCycles |
| Chemistry/Technology | Rotary |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Diameter | 6 mm |
| Shaft Type | D/Flatted |
| Packaging | Tray |
Stock: 8387
Distributors
pcbx
pcbxUnit Price$1.18237
Ext.Price$1.18237
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.18237 | $1.18237 |
| 10 | $0.91990 | $9.19900 |
| 25 | $0.88864 | $22.21600 |
| 50 | $0.85844 | $42.92200 |
| 100 | $0.82927 | $82.92700 |
| 300 | $0.80107 | $240.32100 |
| 500 | $0.77645 | $388.22500 |
| 1000 | $0.75259 | $752.59000 |
| 3000 | $0.72946 | $2188.38000 |
| 5000 | $0.70703 | $3535.15000 |
