PEC11S-9215K-H0015
Manufacturer:
Bourns
Mfr.Part #:
PEC11S-9215K-H0015
Datasheet:
Description:

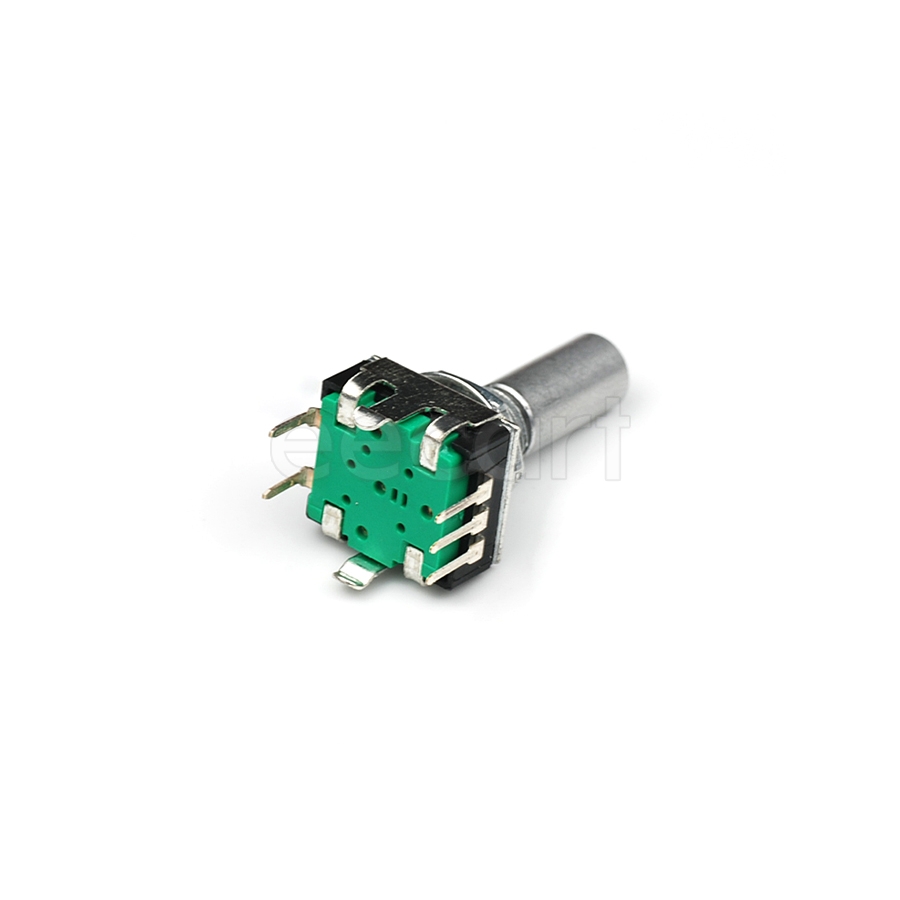

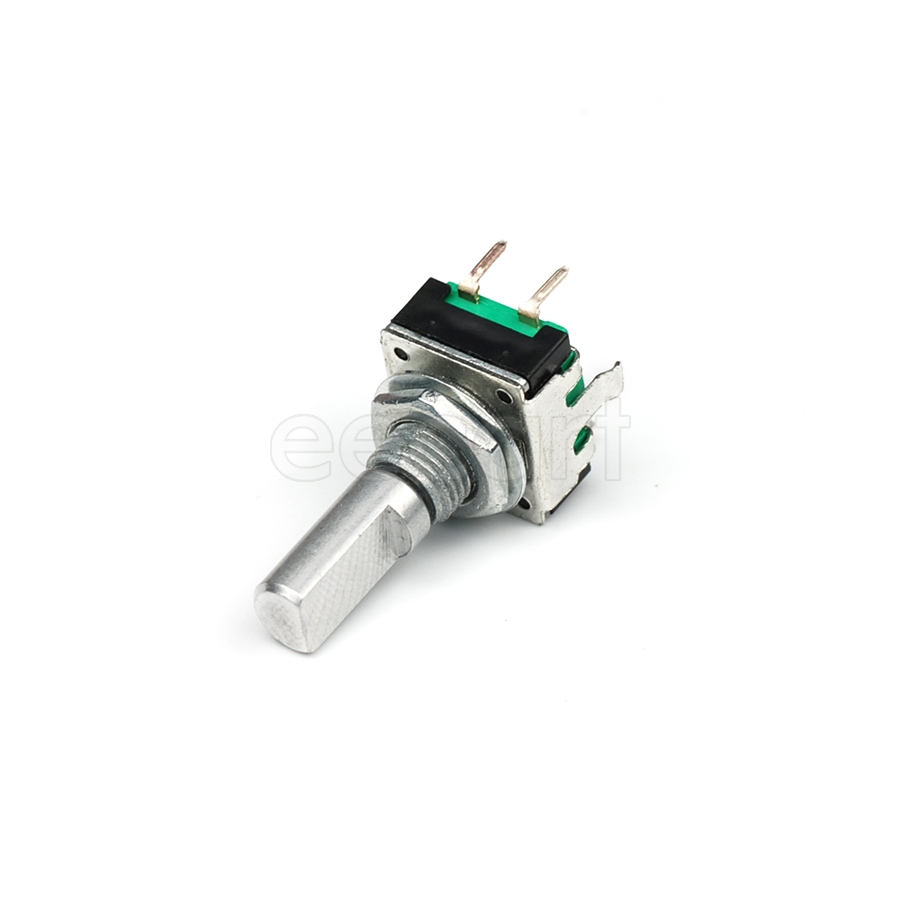

Encoders SMD/SMT Mechanical 15 PPR number of detents:30 Incremental, Quadrature Knurled
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| RoHS | Compliant |
| Orientation | Vertical |
| Output Type | Incremental, Quadrature |
| Hole Diameter | 2.5 mm |
| Number of Channels | 2 |
| Encoder Type | Mechanical |
| Built in Switch | Yes |
| Detent | Yes |
| Pulses per Revolution | 15 |
| Number of Detents | 30 |
| Actuator Type | 6mm Dia Knurled End |
| Resolution | 15 PPR |
| Life (Cycles) | 15 kCycles |
| Schedule B | 8543709655 |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Type | Knurled |
| Operating Supply Voltage | 5 V |
| Packaging | Tray |
Stock: 70
Distributors
pcbx
pcbxUnit Price$1.76457
Ext.Price$1.76457
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.76457 | $1.76457 |
| 10 | $1.45167 | $14.51670 |
| 25 | $1.38637 | $34.65925 |
| 50 | $1.32401 | $66.20050 |
| 100 | $1.26444 | $126.44400 |
| 300 | $1.20355 | $361.06500 |
| 500 | $1.14560 | $572.80000 |
| 1000 | $1.06353 | $1063.53000 |
