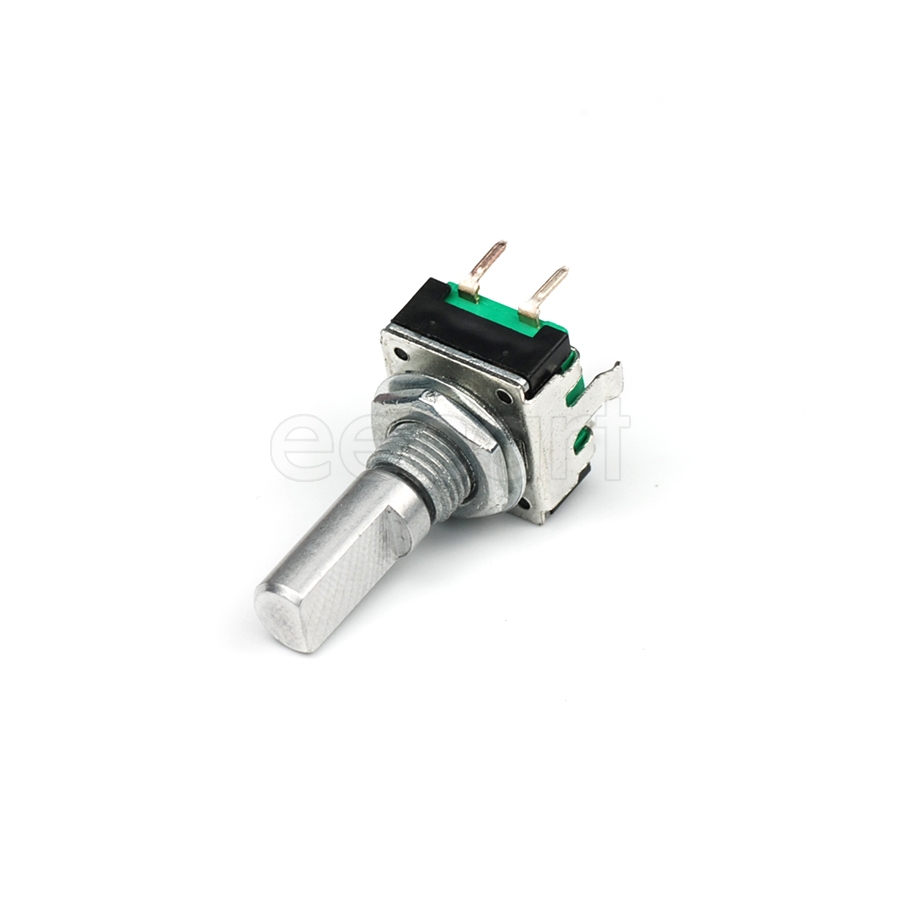

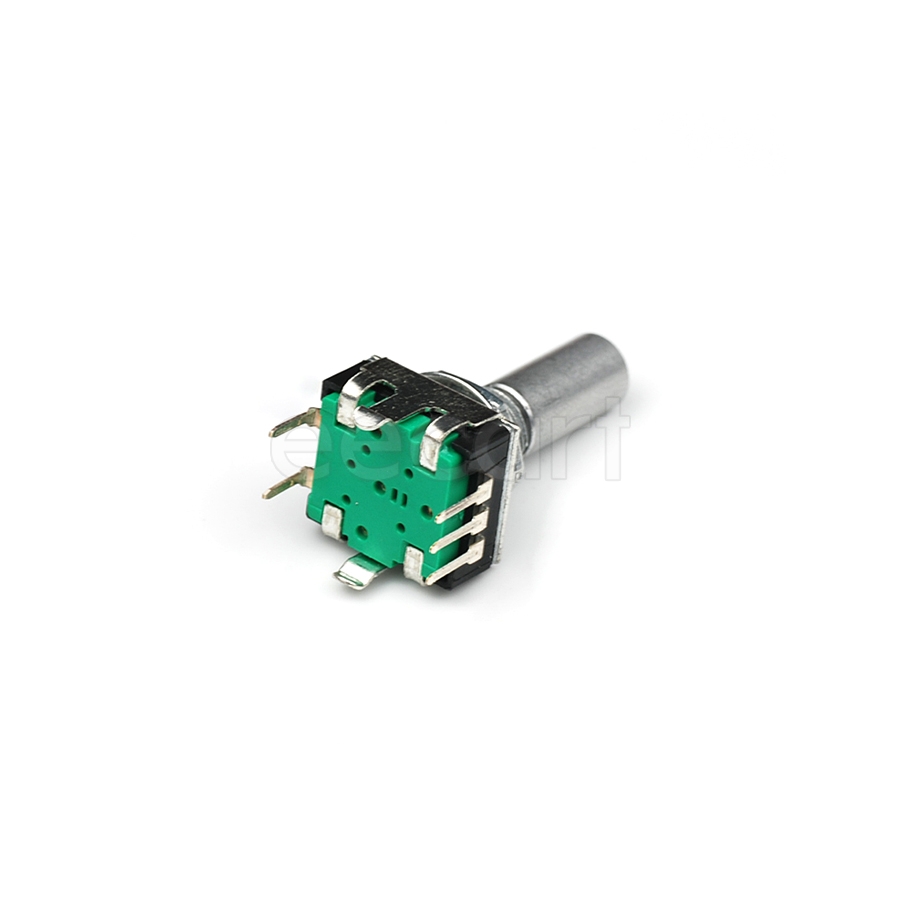

PEC11S-929K-S0015
Manufacturer:
Bourns
Mfr.Part #:
PEC11S-929K-S0015
Datasheet:
Description:
Encoders SMD/SMT Mechanical 15 PPR number of detents:30 Incremental, Quadrature Shaft Diameter :12 mm Knurled
| Parameter | Value |
|---|---|
| Termination | SMD/SMT |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 5 |
| RoHS | Compliant |
| Orientation | Vertical |
| Output Type | Incremental, Quadrature |
| Number of Channels | 2 |
| Number of Positions | 30 |
| Encoder Type | Mechanical |
| Built in Switch | Yes |
| Detent | Yes |
| Pulses per Revolution | 15 |
| Number of Detents | 30 |
| Actuator Type | 6mm Dia Knurled End |
| Resolution | 15 PPR |
| Life (Cycles) | 15 kCycles |
| Schedule B | 8543709655 |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Diameter | 12 mm |
| Shaft Type | Knurled |
| Operating Supply Voltage | 5 V |
| Packaging | Tray |
Stock: 694
Distributors
pcbx
pcbxUnit Price$2.08361
Ext.Price$2.08361
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.08361 | $2.08361 |
| 10 | $1.67747 | $16.77470 |
| 25 | $1.53820 | $38.45500 |
| 50 | $1.44035 | $72.01750 |
| 100 | $1.34863 | $134.86300 |
| 300 | $1.21439 | $364.31700 |
| 500 | $1.15634 | $578.17000 |
| 1000 | $1.08166 | $1081.66000 |
