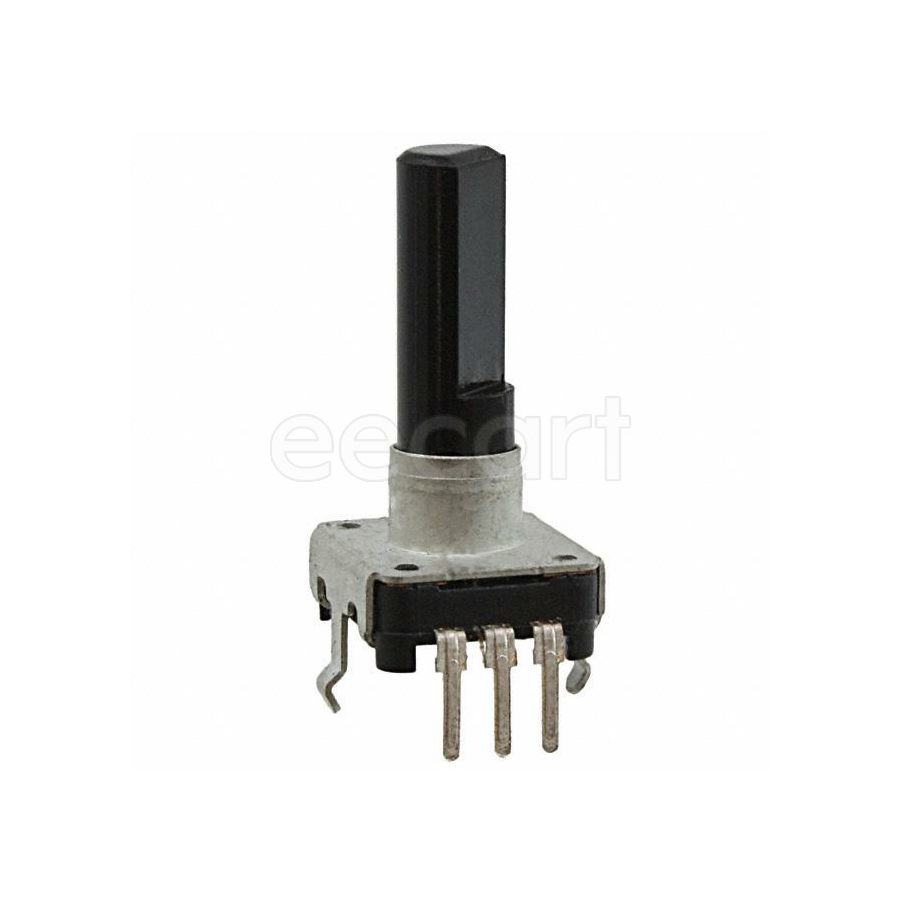

PEC12-4225F-S0024
Manufacturer:
Bourns
Mfr.Part #:
PEC12-4225F-S0024
Datasheet:
Description:
Encoders Through Hole Mechanical 24 PPR Mechanical Incremental, Quadrature Shaft Diameter :6 mm D/Flatted
| Parameter | Value |
|---|---|
| Length | 31 mm |
| Width | 12.4 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Height | 13.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | Mechanical |
| Orientation | Vertical |
| Operating Supply Voltage | 5 V |
| Output Type | Incremental, Quadrature |
| Nominal Supply Voltage (DC) | 5 V |
| Number of Channels | 2 |
| Encoder Type | Mechanical |
| Built in Switch | Yes |
| Detent | Yes |
| Pulses per Revolution | 24 |
| Resolution | 24 PPR |
| Chemistry/Technology | Rotary |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Diameter | 6 mm |
| Shaft Type | D/Flatted |
| Packaging | Tray |
