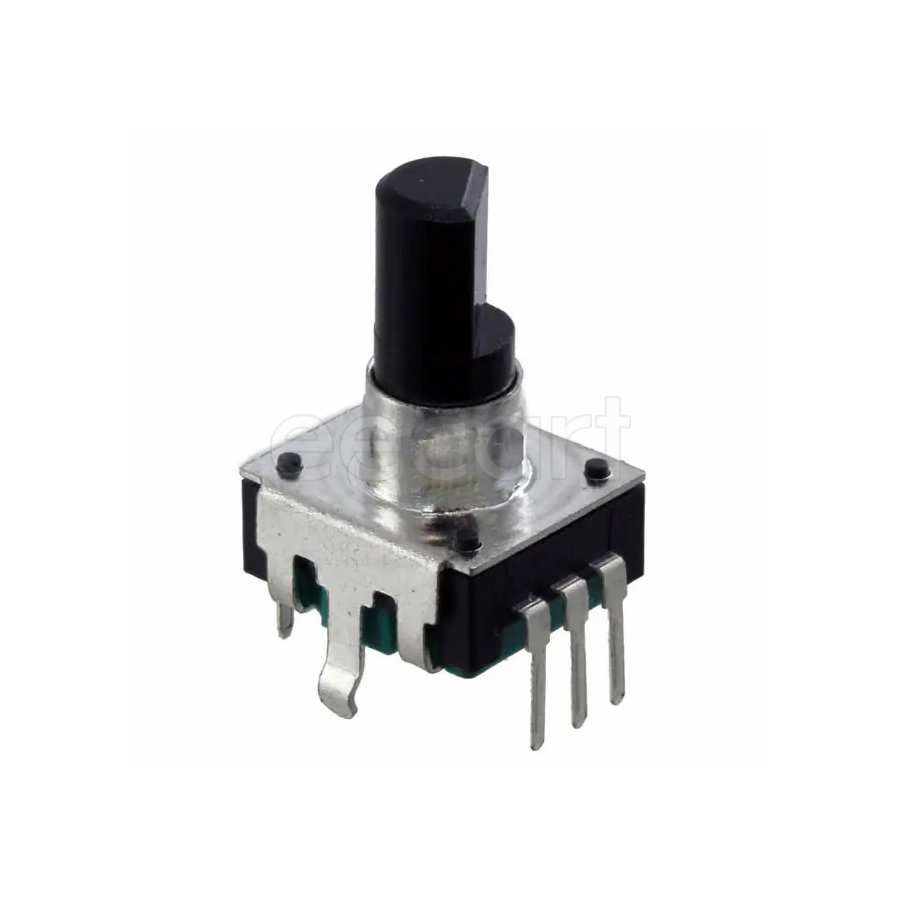

PEC12R-4120F-S0012
Manufacturer:
Bourns
Mfr.Part #:
PEC12R-4120F-S0012
Datasheet:
Description:
Encoders Through Hole Mechanical 12 bit number of detents:12 Incremental, Quadrature Shaft Diameter :6 mm D/Flatted
| Parameter | Value |
|---|---|
| Length | 26 mm |
| Width | 12.5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Height | 13.4 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Orientation | Vertical |
| Output Type | Incremental, Quadrature |
| Number of Channels | 2 |
| Encoder Type | Mechanical |
| Built in Switch | Yes |
| Detent | Yes |
| Pulses per Revolution | 12 |
| Number of Detents | 12 |
| Actuator Type | 6mm Dia Flatted End |
| Resolution | 12 bit |
| Life (Cycles) | 30 kCycles |
| Chemistry/Technology | Rotary |
| Schedule B | 8543709655 |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Diameter | 6 mm |
| Shaft Type | D/Flatted |
Stock: 742
Distributors
pcbx
pcbxUnit Price$1.01394
Ext.Price$1.01394
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01394 | $1.01394 |
| 10 | $0.86348 | $8.63480 |
| 25 | $0.80150 | $20.03750 |
| 50 | $0.74397 | $37.19850 |
| 100 | $0.69057 | $69.05700 |
| 300 | $0.64100 | $192.30000 |
| 500 | $0.59499 | $297.49500 |
| 1000 | $0.55229 | $552.29000 |
