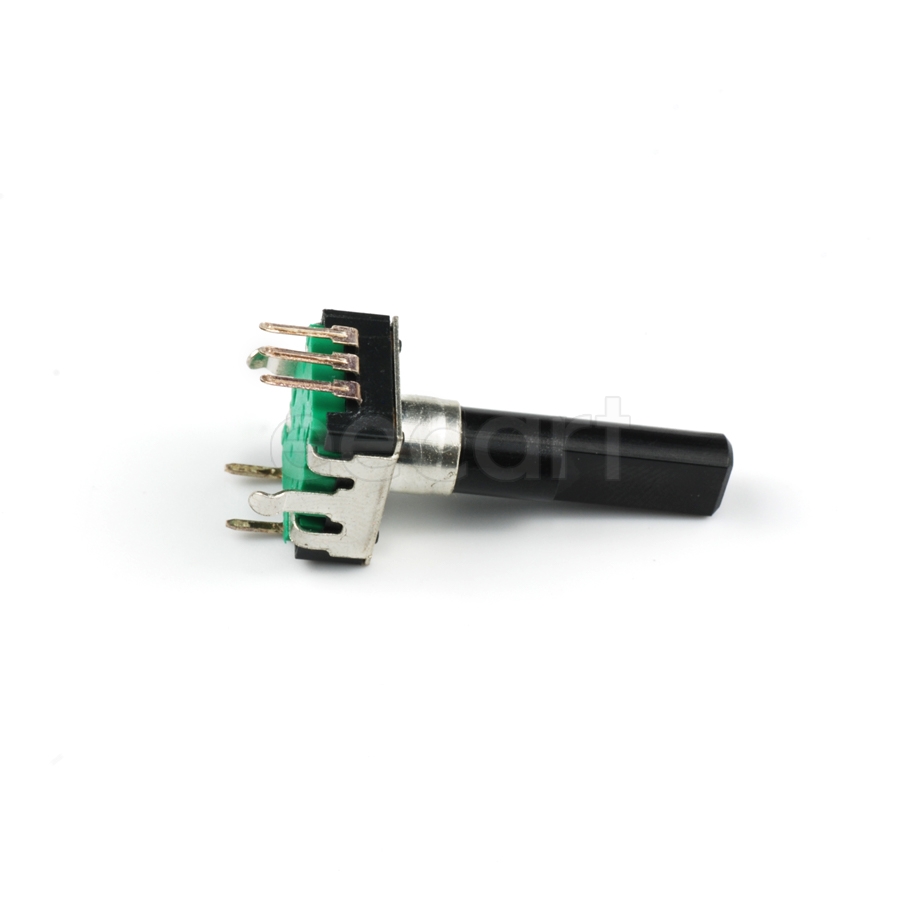

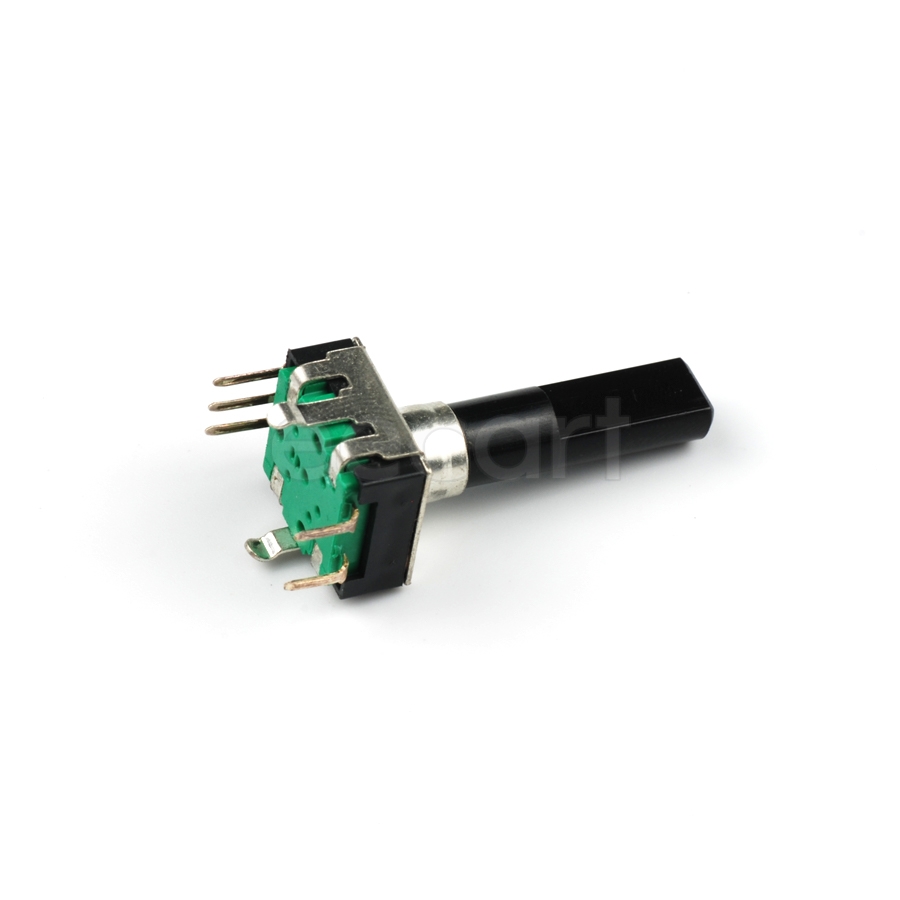

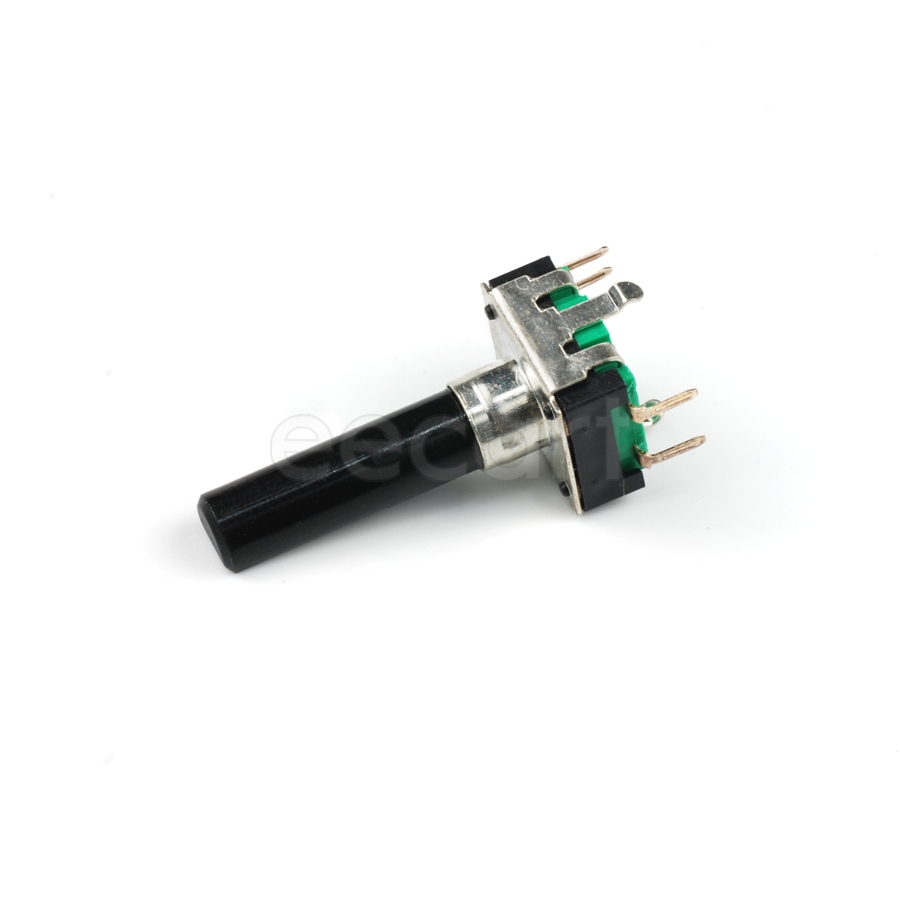

PEC12R-4230F-S0024
Manufacturer:
Bourns
Mfr.Part #:
PEC12R-4230F-S0024
Datasheet:
Description:
Encoders Through Hole Incremental 24 PPR number of detents:24 Incremental, Quadrature Shaft Diameter :6 mm D/Flatted
| Parameter | Value |
|---|---|
| Length | 13.4 mm |
| Width | 12.5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 5 |
| Height | 13.4 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Silver, Tin |
| Number of Circuits | 2 |
| Orientation | Vertical |
| Output Type | Incremental, Quadrature |
| Hole Diameter | 1 mm |
| Number of Channels | 2 |
| Number of Positions | 24 |
| Encoder Type | Incremental |
| Built in Switch | Yes |
| Detent | Yes |
| Pulses per Revolution | 24 |
| Number of Detents | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Resolution | 24 PPR |
| Life (Cycles) | 30 kCycles |
| Chemistry/Technology | Rotary |
| Schedule B | 8543709655 |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Diameter | 6 mm |
| Shaft Type | D/Flatted |
| Packaging | Tray |
Stock: 1048
Distributors
pcbx
pcbxUnit Price$0.92589
Ext.Price$0.92589
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.92589 | $0.92589 |
| 10 | $0.71985 | $7.19850 |
| 25 | $0.68964 | $17.24100 |
| 50 | $0.66069 | $33.03450 |
| 100 | $0.63296 | $63.29600 |
| 300 | $0.60639 | $181.91700 |
| 500 | $0.58094 | $290.47000 |
| 1000 | $0.55656 | $556.56000 |
