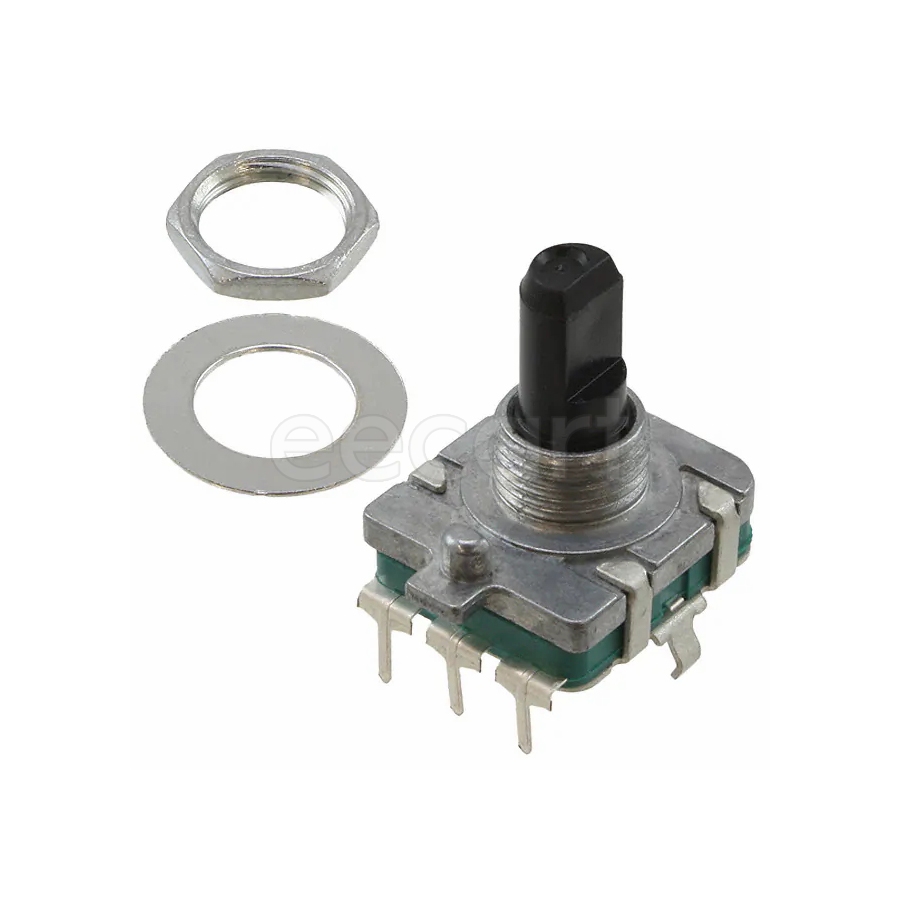

PEC16-4015F-N0024
Manufacturer:
Bourns
Mfr.Part #:
PEC16-4015F-N0024
Datasheet:
Description:
Encoders Through Hole Incremental 24 PPR number of detents:No Detent Mechanical Incremental, Quadrature D/Flatted
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Length | 23 mm |
| Width | 16 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Height | 17.3 mm |
| RoHS | Compliant |
| Type | Mechanical |
| Current Rating | 1 mA |
| Orientation | Vertical |
| Operating Supply Voltage | 5 V |
| Output Type | Incremental, Quadrature |
| Number of Channels | 2 |
| Encoder Type | Incremental |
| Built in Switch | No |
| Detent | No |
| Pulses per Revolution | 24 |
| Number of Detents | No Detent |
| Actuator Type | 6mm Dia Flatted End |
| Resolution | 24 PPR |
| Life (Cycles) | 100 kCycles |
| Schedule B | 8543709655 |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Type | D/Flatted |
| Packaging | Tray |
Stock: 192
Distributors
pcbx
pcbxUnit Price$0.90708
Ext.Price$0.90708
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.90708 | $0.90708 |
| 10 | $0.62068 | $6.20680 |
| 25 | $0.59975 | $14.99375 |
| 50 | $0.57952 | $28.97600 |
| 100 | $0.55998 | $55.99800 |
| 300 | $0.55741 | $167.22300 |
| 500 | $0.55485 | $277.42500 |
| 1000 | $0.52322 | $523.22000 |
