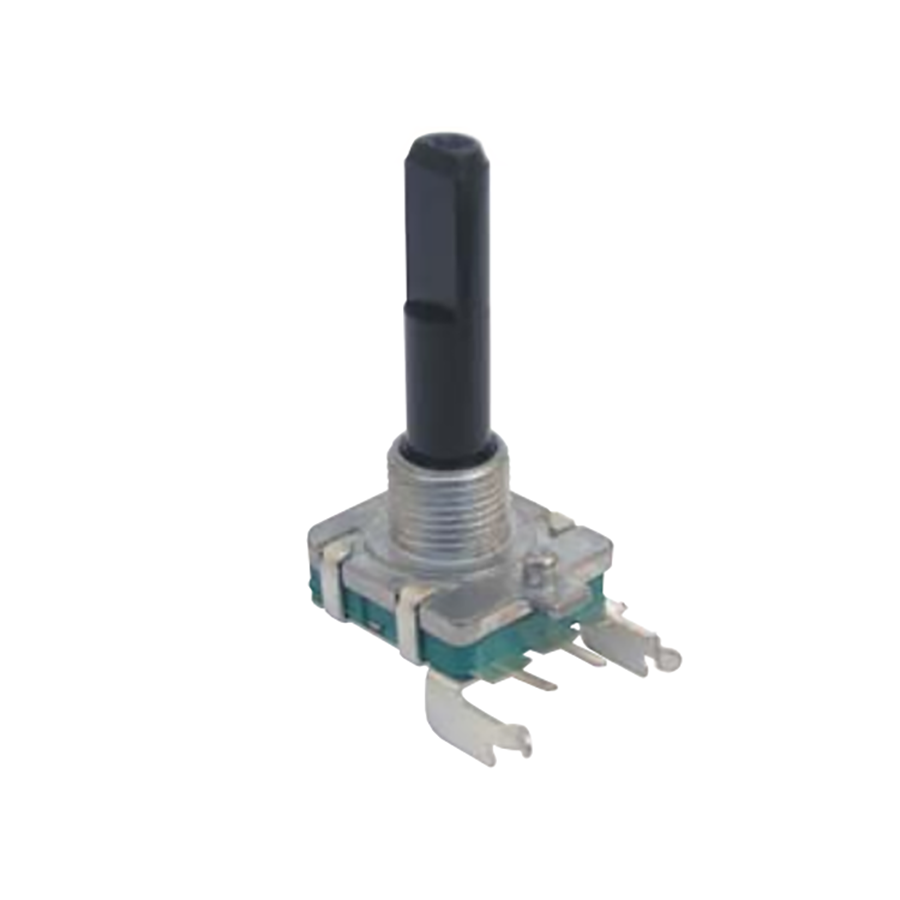

PEC16-4020F-S0024
Manufacturer:
Bourns
Mfr.Part #:
PEC16-4020F-S0024
Datasheet:
Description:
Encoders Through Hole Incremental 24 PPR Mechanical Incremental, Quadrature Hollow
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 5 V |
| Length | 28 mm |
| Width | 16 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -30 °C |
| Height | 28 mm |
| Packaging | Tray |
| RoHS | Compliant |
| Contact Plating | Tin |
| Type | Mechanical |
| Current Rating | 1 mA |
| Number of Circuits | 1 |
| Orientation | Vertical |
| Output Type | Incremental, Quadrature |
| Number of Channels | 2 |
| Encoder Type | Incremental |
| Built in Switch | Yes |
| Detent | No |
| Pulses per Revolution | 24 |
| Actuator Type | 6mm Dia Flatted End |
| Resolution | 24 PPR |
| Life (Cycles) | 100 kCycles |
| Schedule B | 8543709655 |
| IP Rating(Ingress Protection) | IP40 |
| Shaft Type | Hollow |
Stock: 936
Distributors
pcbx
pcbxUnit Price$1.08234
Ext.Price$1.08234
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.08234 | $1.08234 |
| 10 | $0.86946 | $8.69460 |
| 25 | $0.85054 | $21.26350 |
| 50 | $0.83203 | $41.60150 |
| 100 | $0.81390 | $81.39000 |
| 300 | $0.74189 | $222.56700 |
| 500 | $0.67625 | $338.12500 |
| 1000 | $0.65060 | $650.60000 |
