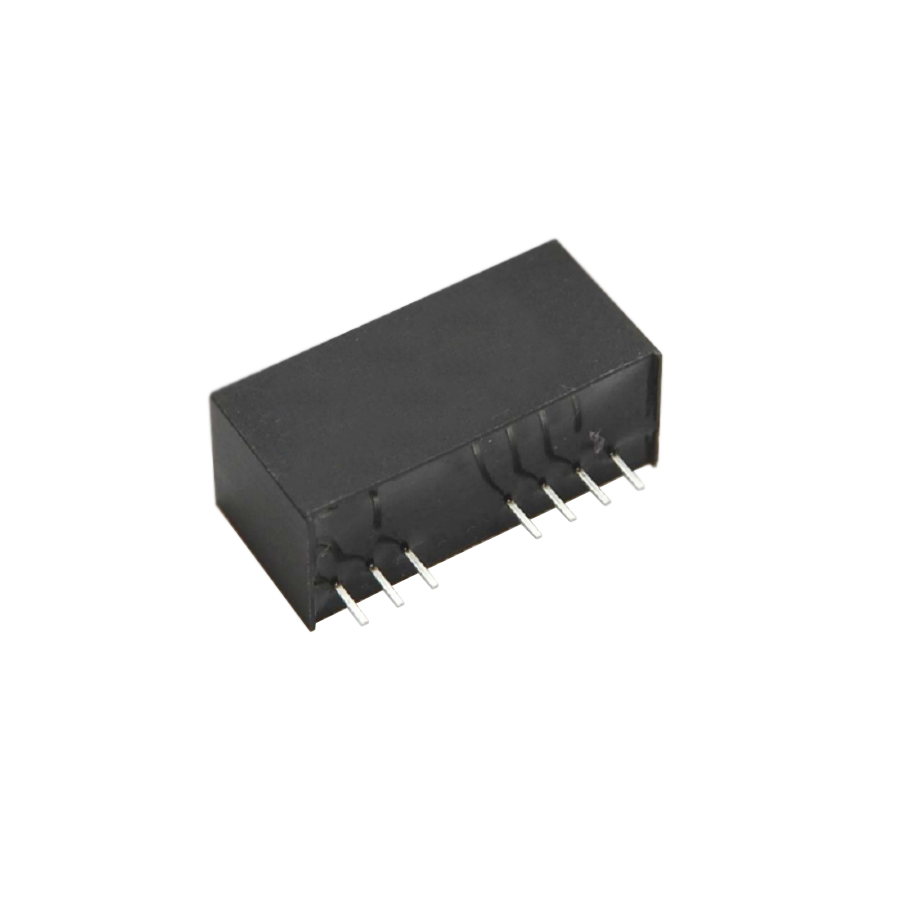

PH02S2403A
Manufacturer:
Delta
Mfr.Part #:
PH02S2403A
Datasheet:
Description:
Power Supply Modules SIP-7 Through Hole Output Voltage:3.3 V Number of Outputs:1 500 mA 2 W Max Input Voltage:36 V Min Input Voltage:9 V Isolation Voltage:1 kV 71 %
| Parameter | Value |
|---|---|
| Length | 25.908 mm |
| Width | 9.144 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 12.446 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Features | SCP, UVLO |
| Min Input Voltage | 9 V |
| Output Current | 500 mA |
| Output Voltage | 3.3 V |
| Max Power Dissipation | 2 W |
| Max Output Current | 500 mA |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1 kV |
| Output Power | 2 W |
| Current - Output 1 | 500 mA |
| Efficiency | 71 % |
| Voltage - Output 1 | 3.3 V |
| Max Input Voltage (DC) | 36 V |
| Min Input Voltage (DC) | 9 V |
Stock: 23
Distributors
pcbx
pcbxUnit Price$8.76730
Ext.Price$8.76730
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.76730 | $8.76730 |
| 10 | $8.31077 | $83.10770 |
| 25 | $8.09790 | $202.44750 |
| 50 | $7.97906 | $398.95300 |
| 100 | $7.84740 | $784.74000 |
| 300 | $7.70244 | $2310.73200 |
| 500 | $7.56014 | $3780.07000 |
| 1000 | $7.55330 | $7553.30000 |
