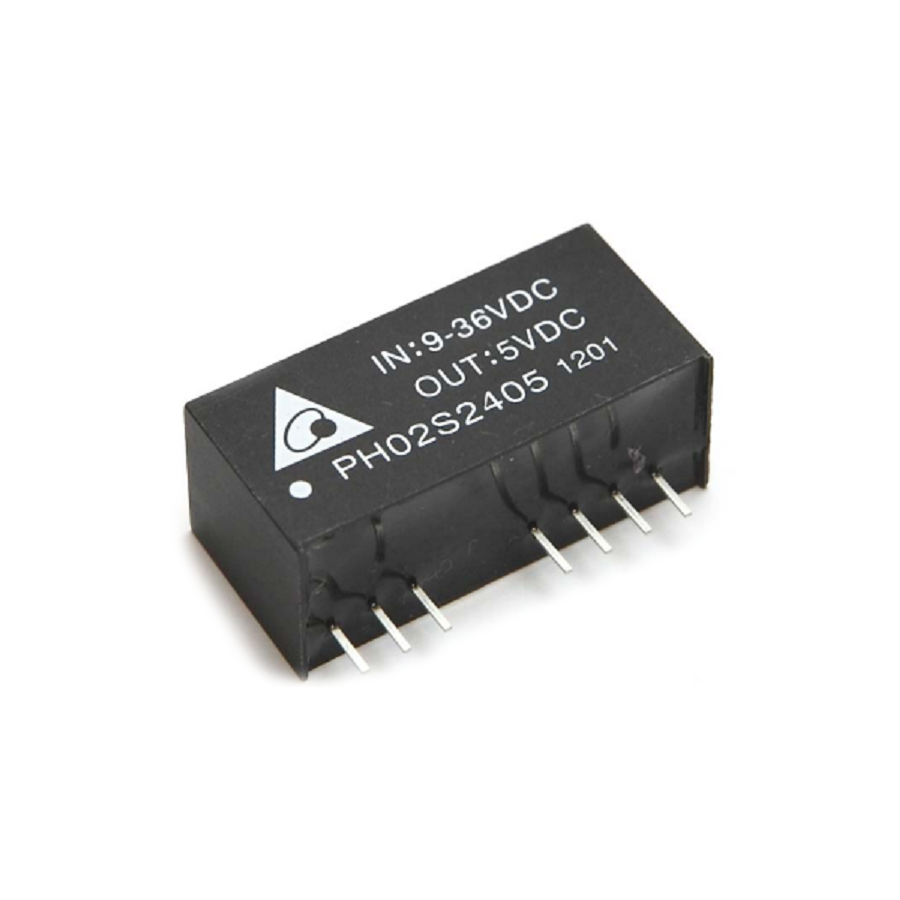

PH02S2405A
Manufacturer:
Delta
Mfr.Part #:
PH02S2405A
Datasheet:
Description:
Board Mount Modules 25.9mmL×9.1mmW×12.4mmH Through Hole Current - Output 1:400 mA Voltage - Output 1:5 V 76 %
| Parameter | Value |
|---|---|
| Length | 25.908 mm |
| Width | 9.144 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 12.446 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Features | Remote On/Off, SCP, UVLO |
| Min Input Voltage | 9 V |
| Output Current | 400 mA |
| Output Voltage | 5 V |
| Max Power Dissipation | 2 W |
| Max Output Current | 400 mA |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1 kV |
| Output Power | 2 W |
| Current - Output 1 | 400 mA |
| Efficiency | 76 % |
| Voltage - Output 1 | 5 V |
| Max Input Voltage (DC) | 36 V |
| Min Input Voltage (DC) | 9 V |
Stock: 9
Distributors
pcbx
pcbxUnit Price$8.74251
Ext.Price$8.74251
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.74251 | $8.74251 |
| 10 | $8.28597 | $82.85970 |
| 25 | $8.07310 | $201.82750 |
| 50 | $7.97307 | $398.65350 |
| 100 | $7.84141 | $784.14100 |
| 300 | $7.62909 | $2288.72700 |
| 500 | $7.42250 | $3711.25000 |
