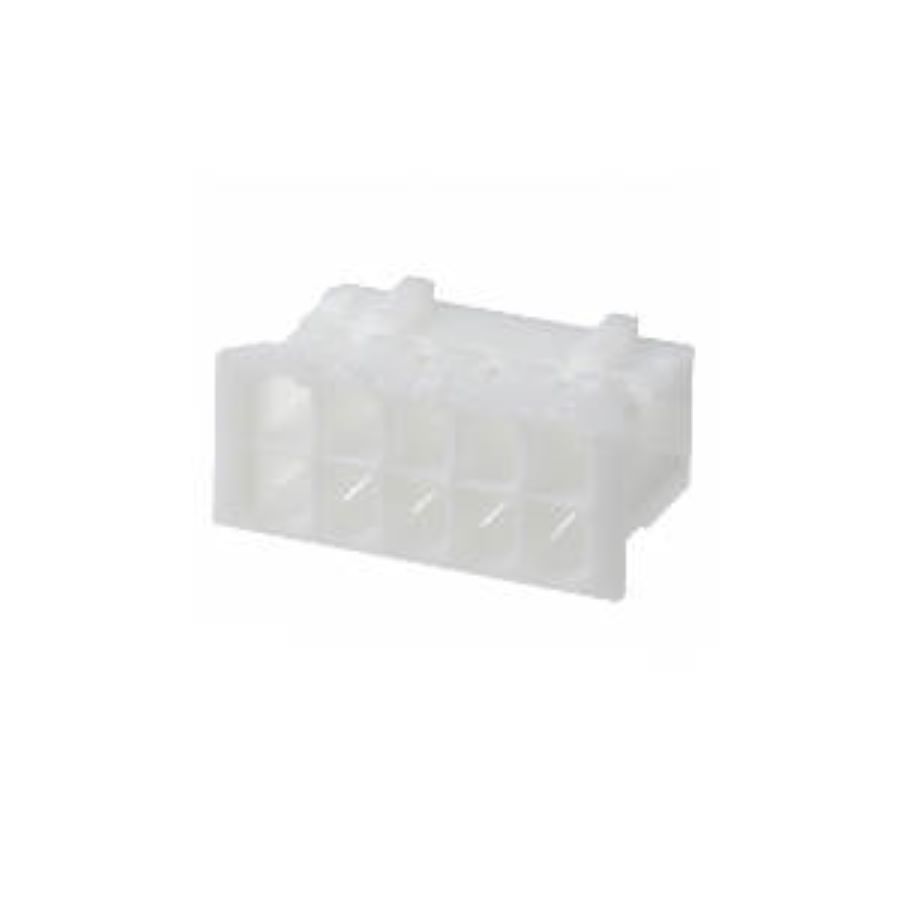

PHDR-10VS
Manufacturer:
JST
Mfr.Part #:
PHDR-10VS
Datasheet:
Description:
Headers and Wire Housings Free Hanging Receptacle, Socket Number of Positions:10 Pitch:2 mm
| Parameter | Value |
|---|---|
| Length | 11.9 mm |
| Width | 5 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Height | 7.3 mm |
| Packaging | Bulk |
| Depth | 7.3 mm |
| RoHS | Compliant |
| Lead Pitch | 2 mm |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2 mm |
| Current Rating | 3 A |
| Max Current Rating | 3 A |
| Orientation | Straight |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 10 |
| Connector Type | Receptacle, Socket |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Row Spacing | 2.0066 mm |
| Housing Material | Polyamide |
| Max Voltage Rating (AC) | 250 V |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 22 AWG |
| Housing Color | White |
Stock: 12273
Distributors
pcbx
pcbxUnit Price$0.14419
Ext.Price$0.14419
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14419 | $0.14419 |
| 10 | $0.12742 | $1.27420 |
| 50 | $0.11261 | $5.63050 |
| 100 | $0.10283 | $10.28300 |
| 500 | $0.09390 | $46.95000 |
| 1000 | $0.08575 | $85.75000 |
| 3000 | $0.07865 | $235.95000 |
| 5000 | $0.07213 | $360.65000 |
