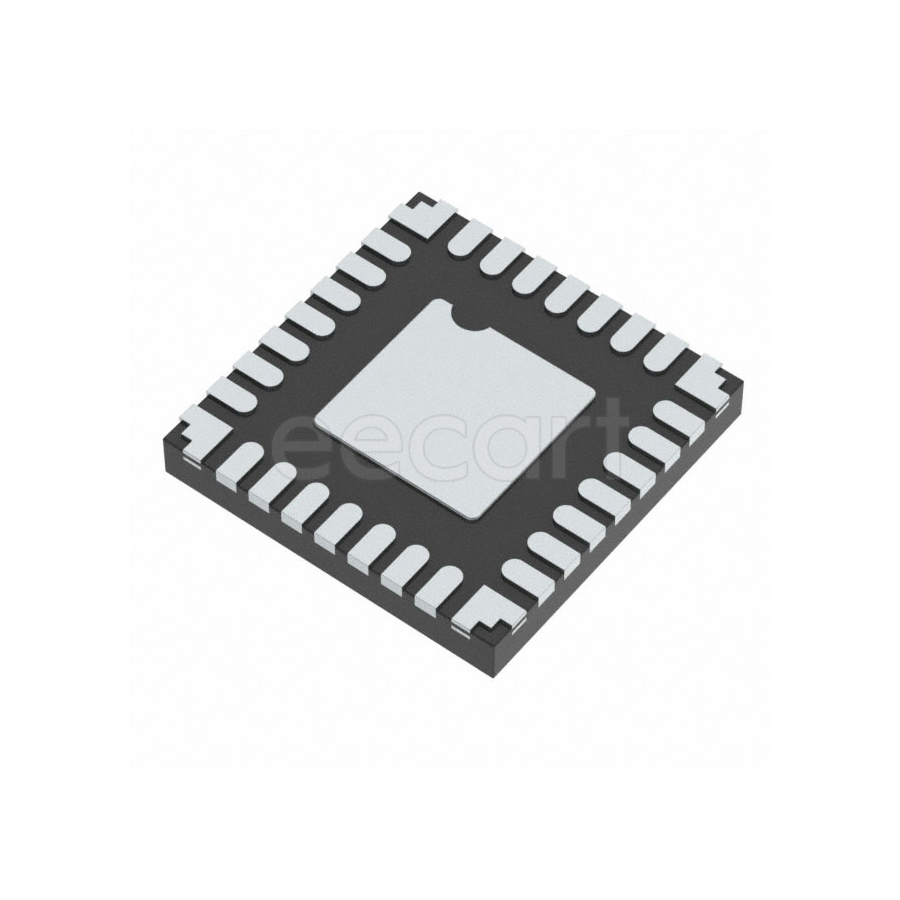

PIC16F1827-I/MV
Manufacturer:
Microchip
Mfr.Part #:
PIC16F1827-I/MV
Datasheet:
Description:
Microcontrollers UQFN-28 SMD/SMT 8 bit 7 kb FLASH
| Parameter | Value |
|---|---|
| Length | 4 mm |
| Width | 4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 28 |
| Height | 500 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 32 MHz |
| Core Architecture(core/core processor) | PIC |
| Interface | CAN, I²C, SPI, UART, USART |
| Memory Size | 7 kb |
| Memory Type | FLASH |
| Number of I/Os | 15 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, I²C, POR, PWM, WDT |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Max Power Dissipation | 800 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 2.5 V |
| Number of Bits | 8 |
| Number of ADC Channels | 12 |
| Max Frequency | 32 MHz |
| Nominal Supply Current | 4 mA |
| RAM Size | 384 B |
| Address Bus Width | 8 b |
| Data Bus Width | 8 bit |
| Number of PWM Channels | 4 |
| Number of Programmable I/O | 16 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 5 |
| Number of A/D Converters | 1 |
| Number of I2C Channels | 2 |
| Number of UART Channels | 1 |
| Schedule B | 8542310000 |
| Operating Supply Voltage | 1.8 V to 5.5 V |
| Packaging | Tube |
| ADC Resolution | 10 bit |
| Max Clock Frequency | 32 MHz |
Stock: 269
Distributors
pcbx
pcbxUnit Price$1.31417
Ext.Price$1.31417
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.31417 | $1.31417 |
| 10 | $1.25647 | $12.56470 |
| 25 | $1.20132 | $30.03300 |
| 50 | $1.14364 | $57.18200 |
| 100 | $1.08871 | $108.87100 |
