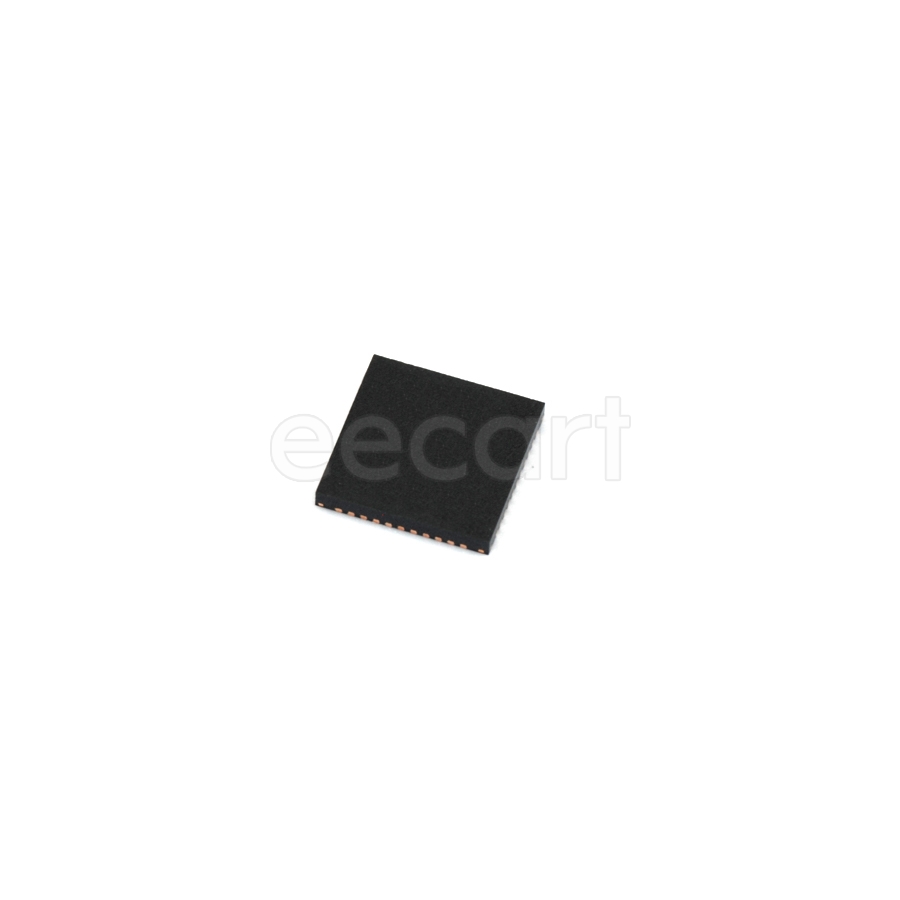

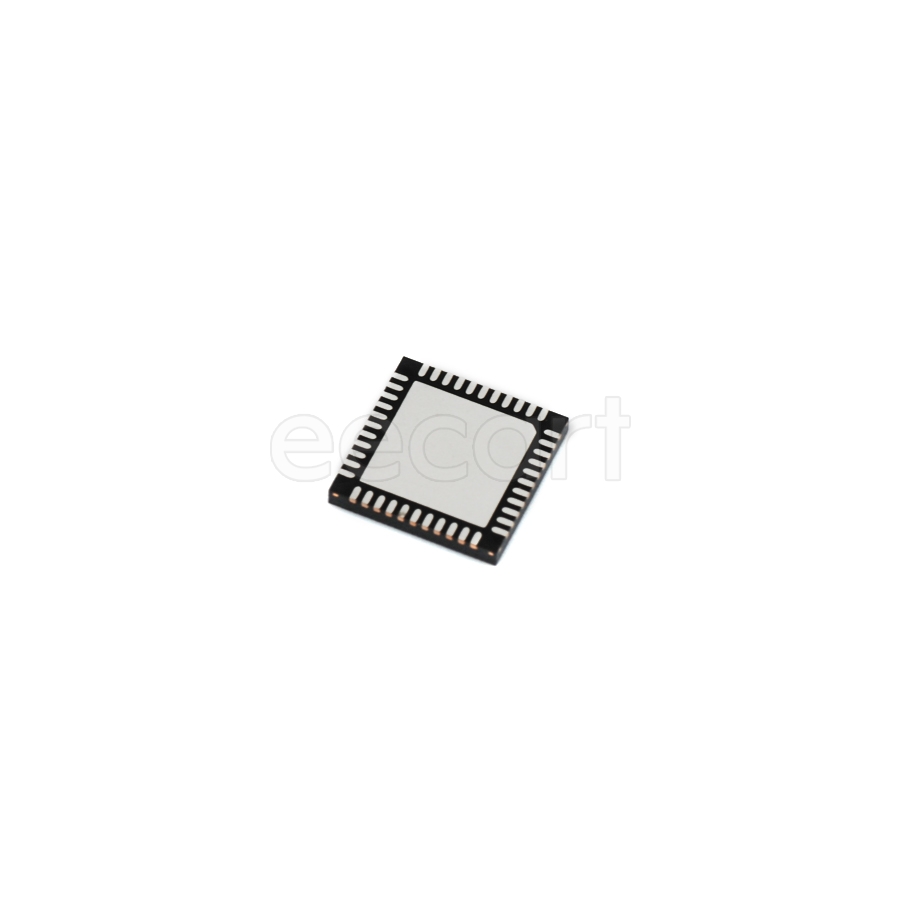

PIC16F1939-I/ML
Manufacturer:
Microchip
Mfr.Part #:
PIC16F1939-I/ML
Datasheet:
Description:
Microcontrollers QFN-44 SMD/SMT 8 bit 28 kb FLASH
| Parameter | Value |
|---|---|
| Length | 8 mm |
| Width | 8 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 44 |
| Height | 950 µm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 32 MHz |
| Core Architecture(core/core processor) | PIC |
| Interface | I²C, LIN, SPI, UART, USART |
| Memory Size | 28 kb |
| Memory Type | FLASH |
| Number of I/Os | 35 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, I²C, LCD, POR, PWM, WDT |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Max Power Dissipation | 800 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Number of ADC Channels | 14 |
| Max Frequency | 32 MHz |
| Nominal Supply Current | 5.3 mA |
| RAM Size | 1 kB |
| Address Bus Width | 8 b |
| Data Bus Width | 8 bit |
| Number of PWM Channels | 5 |
| Number of Programmable I/O | 36 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 5 |
| Number of I2C Channels | 1 |
| Schedule B | 8542310000 |
| Operating Supply Voltage | 1.8 V to 5.5 V |
| Packaging | Tube |
| ADC Resolution | 10 bit |
| Max Clock Frequency | 32 MHz |
Stock: 9241
Distributors
pcbx
pcbxUnit Price$1.88992
Ext.Price$1.88992
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.88992 | $1.88992 |
| 10 | $1.81312 | $18.13120 |
| 25 | $1.73943 | $43.48575 |
| 50 | $1.65610 | $82.80500 |
| 100 | $1.57675 | $157.67500 |
