PIC16F877-20/PQ
Manufacturer:
Microchip
Mfr.Part #:
PIC16F877-20/PQ
Datasheet:
Description:

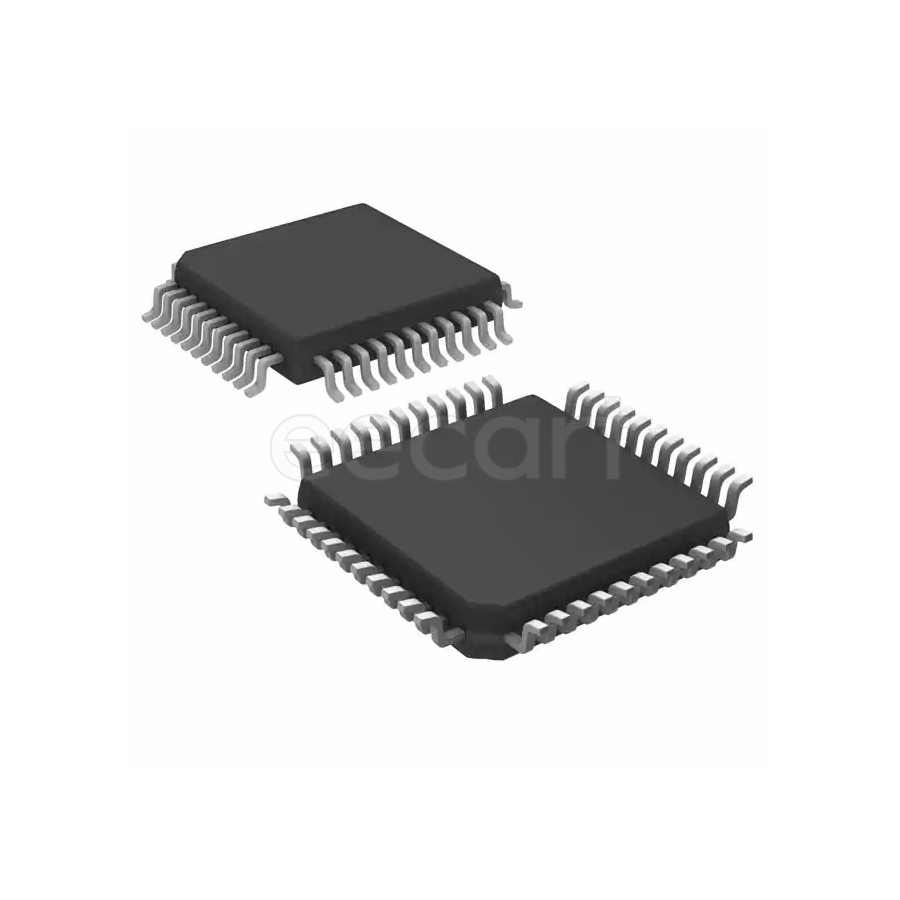

Microcontrollers MQFP-44 SMD/SMT 8 bit 14 kb FLASH
| Parameter | Value |
|---|---|
| Length | 10.1 mm |
| Width | 10.1 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 44 |
| Height | 2.1 mm |
| Radiation Hardening | No |
| Voltage | 5 V |
| Frequency | 20 MHz |
| Core Architecture(core/core processor) | PIC |
| Interface | I²C, SPI, UART, USART |
| Memory Size | 14 kb |
| Memory Type | FLASH |
| Oscillator Type | External |
| Peripherals | Brown-out Detect/Reset, I²C, POR, PWM, WDT |
| Max Power Dissipation | 1 W |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4 V |
| Number of Bits | 8 |
| Access Time | 20 µs |
| Number of ADC Channels | 8 |
| Max Frequency | 20 MHz |
| RAM Size | 368 B |
| Data Bus Width | 8 bit |
| Number of PWM Channels | 2 |
| Number of Programmable I/O | 33 |
| Number of SPI Channels | 1 |
| Number of Timers/Counters | 3 |
| Number of A/D Converters | 1 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Schedule B | 8542310000 |
| Max Clock Frequency | 20 MHz |
| ADC Resolution | 10 bit |
| Number of I/Os | 33 |
| Operating Supply Voltage | 2 V to 5.5 V |
| RoHS | Compliant |
| Packaging | Tray |
Stock: 78
Distributors
pcbx
pcbxUnit Price$9.42067
Ext.Price$9.42067
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $9.42067 | $9.42067 |
