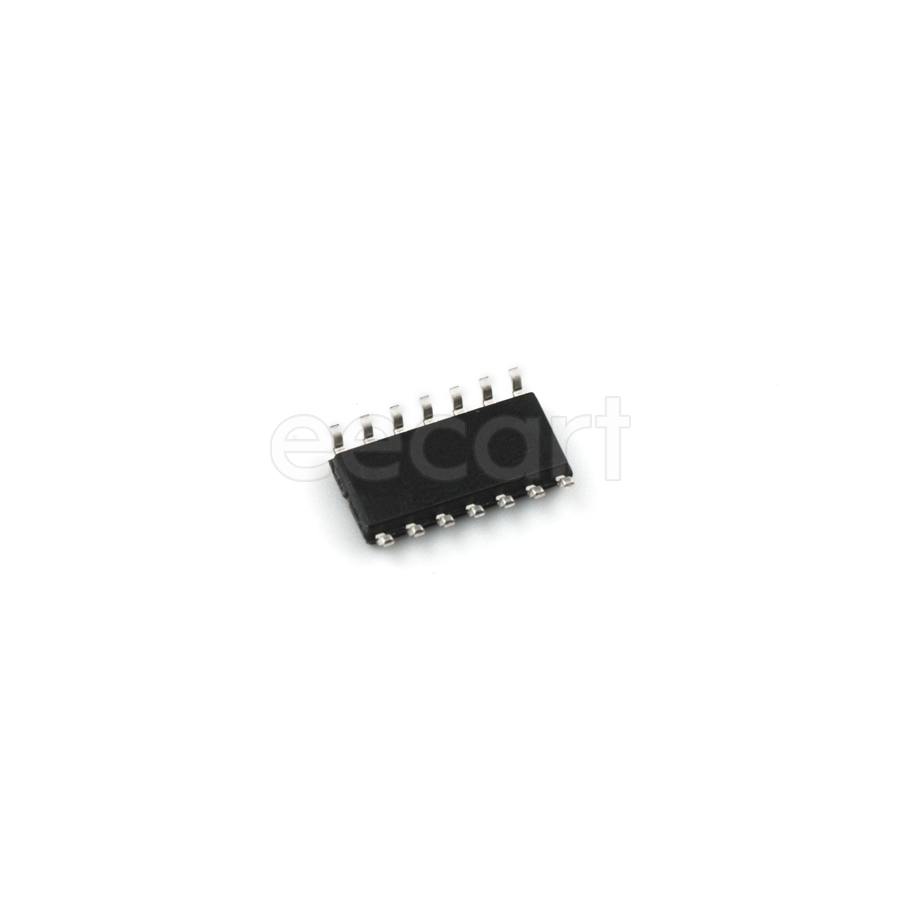

PIC16LF1503-I/SL
Manufacturer:
Microchip
Mfr.Part #:
PIC16LF1503-I/SL
Datasheet:
Description:
Microcontrollers SOP-14 SMD/SMT 8 bit 3.5 kb FLASH
| Parameter | Value |
|---|---|
| Length | 8.65 mm |
| Width | 3.9 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 14 |
| Height | 1.25 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Frequency | 20 MHz |
| Core Architecture(core/core processor) | PIC |
| Interface | I²C, SPI |
| Memory Size | 3.5 kb |
| Memory Type | FLASH |
| Number of I/Os | 11 |
| Peripherals | I²C, POR, PWM |
| Lifecycle Status | Production (Last Updated: 9 months ago) |
| Max Power Dissipation | 800 mW |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 2.5 V |
| Number of ADC Channels | 10 |
| Max Frequency | 20 MHz |
| Nominal Supply Current | 120 µA |
| RAM Size | 128 B |
| Address Bus Width | 8 b |
| Data Bus Width | 8 bit |
| Number of PWM Channels | 4 |
| Number of Programmable I/O | 12 |
| Number of SPI Channels | 4 |
| Number of Timers/Counters | 3 |
| Number of I2C Channels | 2 |
| Number of Ethernet Channels | 1 |
| Schedule B | 8542310000 |
| Operating Supply Voltage | 1.8 V to 3.6 V |
| Packaging | Tube |
| ADC Resolution | 10 bit |
| Max Clock Frequency | 20 MHz |
Stock: 35
Distributors
pcbx
pcbxUnit Price$1.48099
Ext.Price$1.48099
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.48099 | $1.48099 |
| 10 | $1.24339 | $12.43390 |
| 25 | $1.18208 | $29.55200 |
| 50 | $1.12379 | $56.18950 |
| 100 | $1.06837 | $106.83700 |
| 300 | $1.01569 | $304.70700 |
| 500 | $0.96560 | $482.80000 |
| 1000 | $0.91798 | $917.98000 |
| 3000 | $0.87269 | $2618.07000 |
