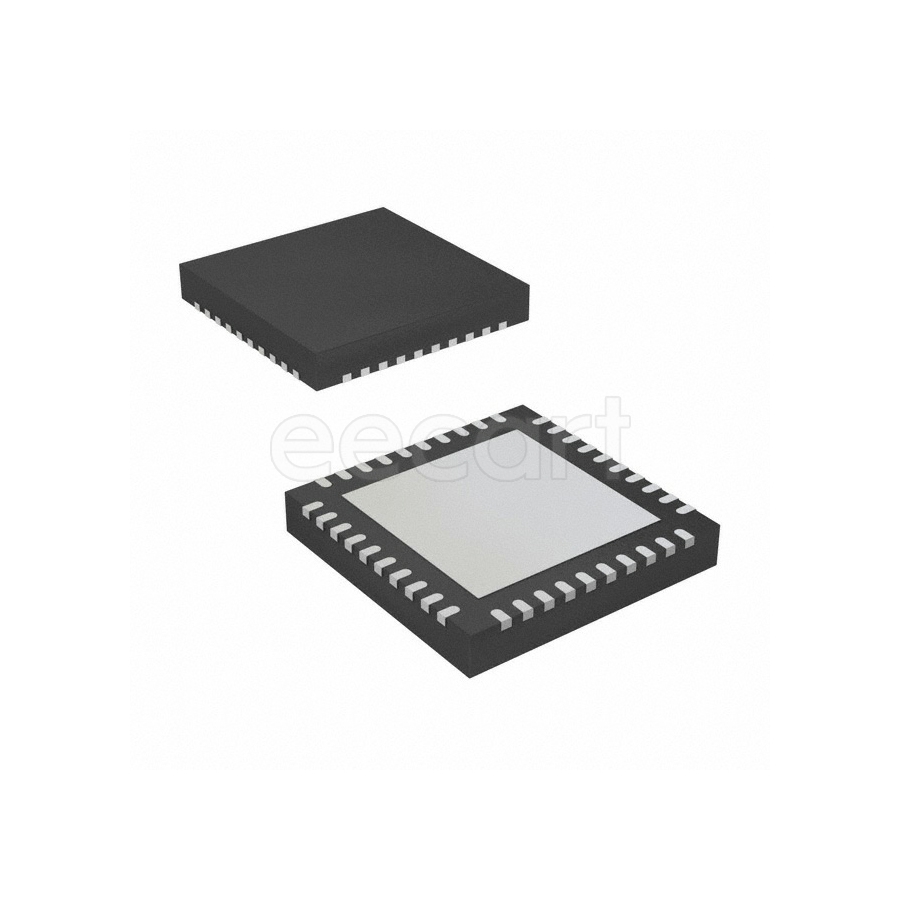

PIC16LF1904-I/MV
Manufacturer:
Microchip
Mfr.Part #:
PIC16LF1904-I/MV
Datasheet:
Description:
Microcontrollers UQFN-40 SMD/SMT 8 bit 7 kb FLASH
| Parameter | Value |
|---|---|
| Length | 5 mm |
| Width | 5 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 40 |
| Height | 500 µm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Frequency | 20 MHz |
| Core Architecture(core/core processor) | PIC16 |
| Interface | LIN, UART, USART |
| Memory Size | 7 kb |
| Memory Type | FLASH |
| Number of I/Os | 36 |
| Peripherals | LCD, POR |
| Operating Supply Voltage | 1.8 V to 3.6 V |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Max Power Dissipation | 800 mW |
| Max Supply Voltage | 3.6 V |
| Min Supply Voltage | 1.8 V |
| Number of Bits | 8 |
| Number of ADC Channels | 14 |
| Max Frequency | 20 MHz |
| Nominal Supply Current | 300 µA |
| RAM Size | 256 B |
| Address Bus Width | 8 b |
| Data Bus Width | 8 bit |
| Number of Programmable I/O | 36 |
| Number of Timers/Counters | 2 |
| Number of A/D Converters | 1 |
| Number of UART Channels | 1 |
| Max Clock Frequency | 20 MHz |
| ADC Resolution | 10 bit |
