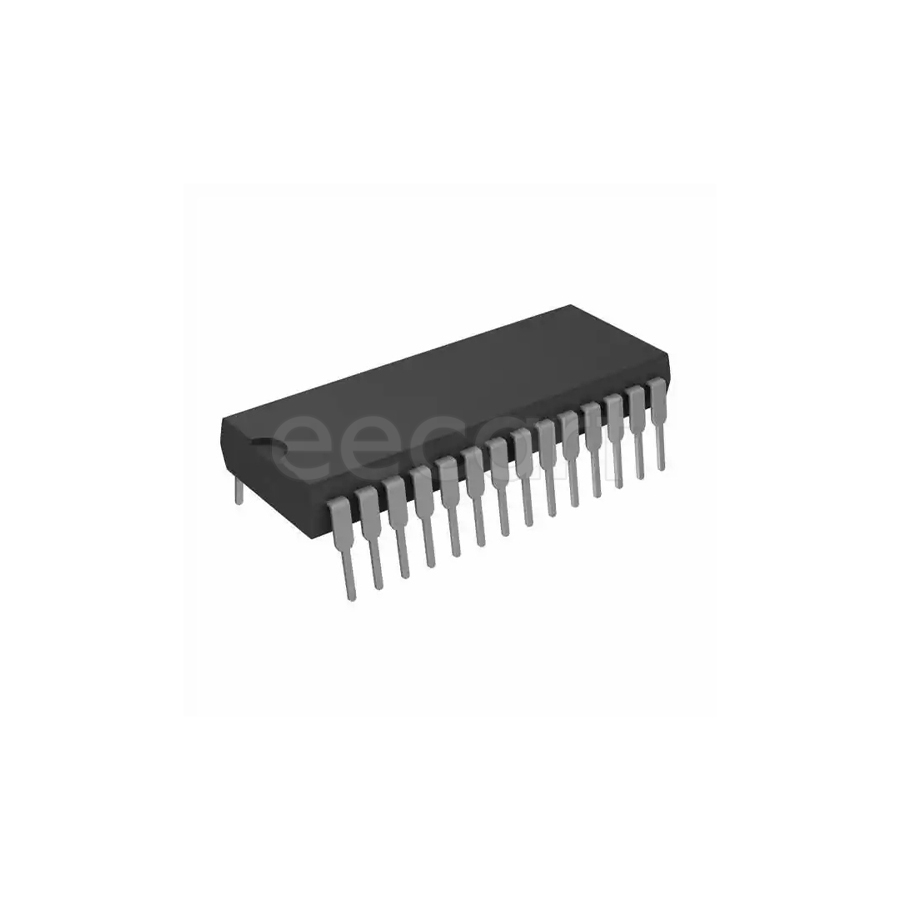

PIC18F25K22-I/SP
Manufacturer:
Microchip
Mfr.Part #:
PIC18F25K22-I/SP
Datasheet:
Description:
Microcontrollers SPDIP-28 Through Hole 8 bit 32 kb FLASH
| Parameter | Value |
|---|---|
| Length | 35.56 mm |
| Width | 7.493 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 28 |
| Height | 3.81 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Frequency | 64 MHz |
| Core Architecture(core/core processor) | PIC |
| Interface | I²C, SPI, UART, USART |
| Memory Size | 32 kb |
| Memory Type | FLASH |
| Number of I/Os | 24 |
| Oscillator Type | Internal |
| Peripherals | Brown-out Detect/Reset, HLVD, I²C, POR, PWM, WDT |
| Max Power Dissipation | 1 W |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.8 V |
| Number of Bits | 8 |
| Number of ADC Channels | 17 |
| Max Frequency | 64 MHz |
| RAM Size | 1.5 kB |
| Address Bus Width | 8 b |
| Data Bus Width | 8 bit |
| Number of PWM Channels | 5 |
| Number of Programmable I/O | 25 |
| Number of SPI Channels | 2 |
| Number of Timers/Counters | 7 |
| Number of A/D Converters | 2 |
| Number of I2C Channels | 2 |
| Number of UART Channels | 2 |
| Schedule B | 8542310000 |
| Operating Supply Voltage | 2.3 V to 5.5 V |
| RoHS | Compliant |
| Packaging | Tube |
| ADC Resolution | 10 bit |
| Max Clock Frequency | 64 MHz |
Stock: 9
Distributors
pcbx
pcbxUnit Price$3.99187
Ext.Price$3.99187
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.99187 | $3.99187 |
| 10 | $3.89011 | $38.90110 |
| 25 | $3.85763 | $96.44075 |
| 50 | $3.82542 | $191.27100 |
| 100 | $3.79348 | $379.34800 |
