PJRAS1X1S01X
Manufacturer:
Switchcraft
Mfr.Part #:
PJRAS1X1S01X
Datasheet:
Description:

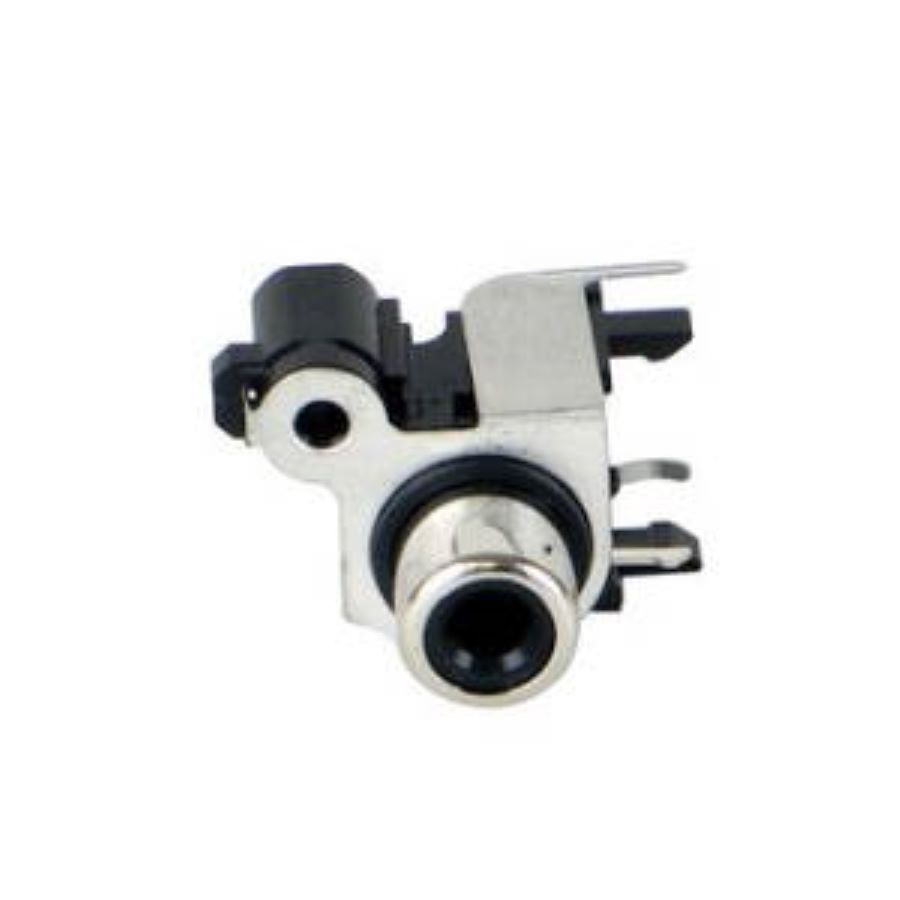

Audio / Video Connectors Through Hole Female Right Angle Phono (RCA) Jack
| Parameter | Value |
|---|---|
| Length | 21.2 mm |
| Termination | Solder |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 1 |
| Packaging | Bulk |
| Voltage Rating | 34 V |
| Depth | 14.95 mm |
| RoHS | Compliant |
| Contact Plating | Tin |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 34 V |
| Orientation | Right Angle |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 1 |
| Connector Type | Phono (RCA) Jack |
| Insulation Material | Steel |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 34 V |
| Housing Color | Black |
| Plating | Steel |
Stock: 699
Distributors
pcbx
pcbxUnit Price$1.01394
Ext.Price$1.01394
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01394 | $1.01394 |
| 10 | $0.90708 | $9.07080 |
| 25 | $0.84467 | $21.11675 |
| 50 | $0.82586 | $41.29300 |
| 100 | $0.75747 | $75.74700 |
| 300 | $0.74454 | $223.36200 |
| 500 | $0.73182 | $365.91000 |
| 1000 | $0.56083 | $560.83000 |
