PJRAS1X2S02AUX
Manufacturer:
Switchcraft
Mfr.Part #:
PJRAS1X2S02AUX
Datasheet:
Description:

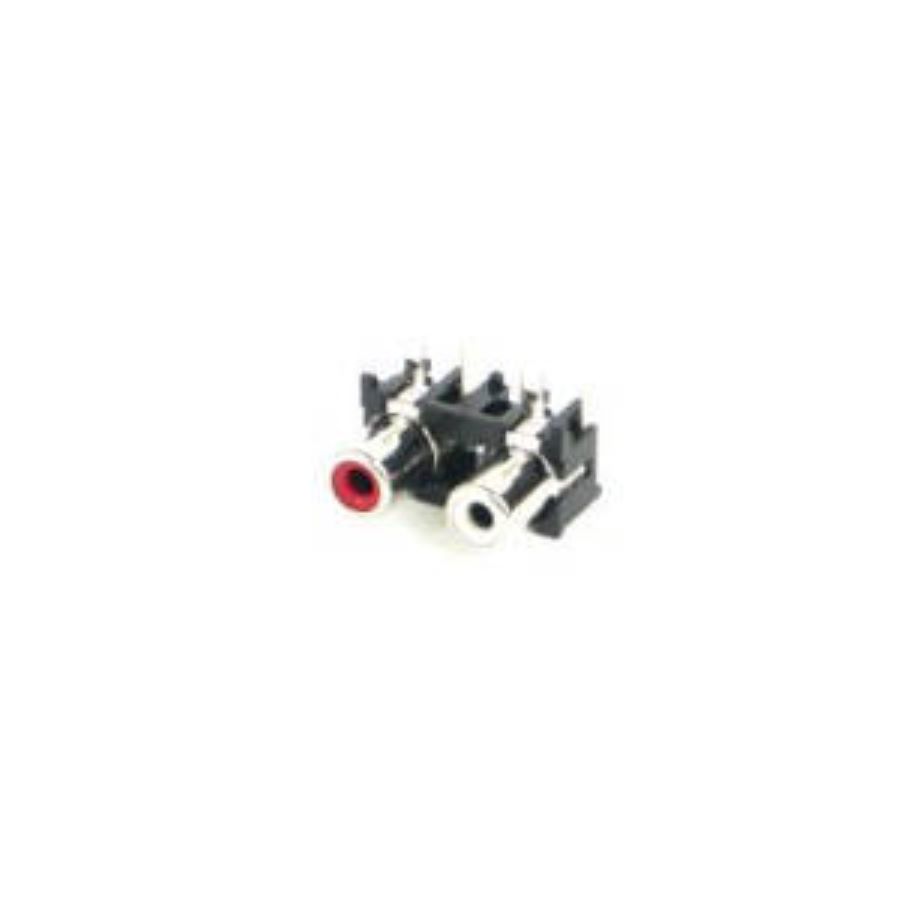

Audio / Video Connectors Through Hole Female Number of Positions:2 Right Angle Phono (RCA) Jack
| Parameter | Value |
|---|---|
| Length | 16.5 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Tube |
| Voltage Rating | 34 V |
| Depth | 21.9 mm |
| RoHS | Compliant |
| Contact Plating | Tin, Gold |
| Number of Terminals | 3 |
| Current Rating | 2 A |
| Max Current Rating | 2 A |
| Max Voltage Rating (DC) | 3.434 kV |
| Orientation | Right Angle |
| Color | Red, White |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 4 |
| Connector Type | Phono (RCA) Jack |
| Number of Positions | 2 |
| Insulation Material | Steel |
| Housing Material | Thermoplastic |
| Number of Ports | 2 |
| Max Voltage Rating (AC) | 34 V |
| Housing Color | Black |
| Plating | Steel |
Stock: 517
Distributors
pcbx
pcbxUnit Price$3.45376
Ext.Price$3.45376
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.45376 | $3.45376 |
| 10 | $2.93574 | $29.35740 |
| 25 | $2.75182 | $68.79550 |
| 50 | $2.62029 | $131.01450 |
| 100 | $2.49515 | $249.51500 |
| 300 | $2.31137 | $693.41100 |
| 500 | $2.14113 | $1070.56500 |
| 1000 | $1.98341 | $1983.41000 |
