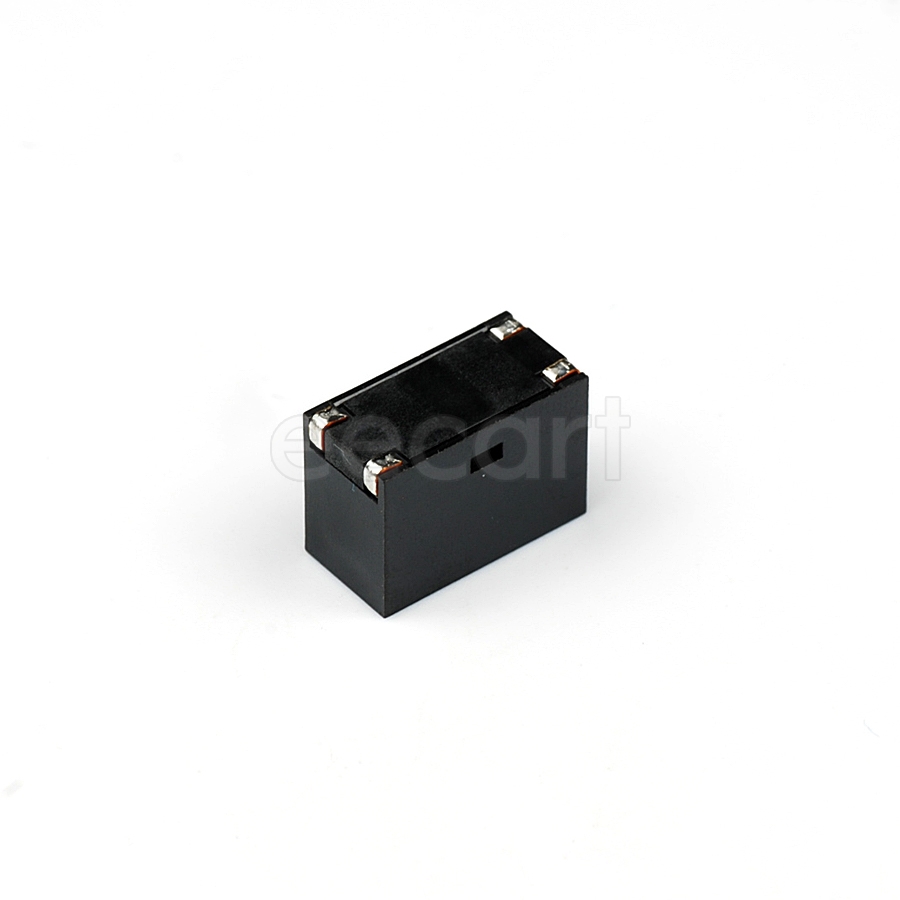

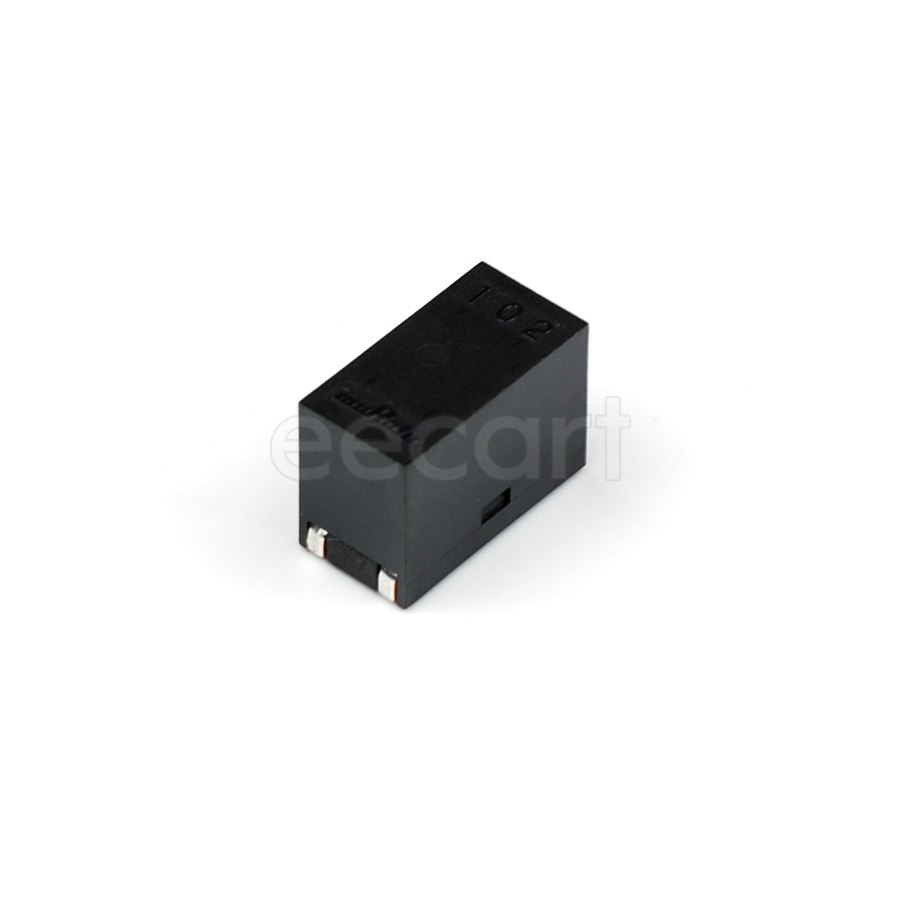

PLT10HH1026R0PNL
Manufacturer:
Murata
Mfr.Part #:
PLT10HH1026R0PNL
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:6 A Number of Lines:2 1 kΩ 8 mΩ 20 µH
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 12.9 mm |
| Width | 6.6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 9.4 mm |
| Packaging | Reel |
| Depth | 6.8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Impedance | 1 kΩ |
| Type | Power Line |
| Current | 6 A |
| DC Resistance (DCR) | 8 mΩ |
| Max Current Rating | 6 A |
| Test Frequency | 10 MHz |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Number of Lines | 2 |
| Inductance | 20 µH |
| RMS Current (Irms) | 6 A |
| Max DC Current | 6 A |
| Series Resistance | 8.5 mΩ |
| DC Current | 6 A |
| Schedule B | 8504500000 |
Stock: 281
Distributors
pcbx
pcbxUnit Price$2.67251
Ext.Price$2.67251
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.67251 | $2.67251 |
| 10 | $2.26556 | $22.65560 |
| 25 | $2.12792 | $53.19800 |
| 50 | $2.02790 | $101.39500 |
| 100 | $1.88695 | $188.69500 |
| 300 | $1.75579 | $526.73700 |
| 500 | $1.63377 | $816.88500 |
| 1000 | $1.60813 | $1608.13000 |
