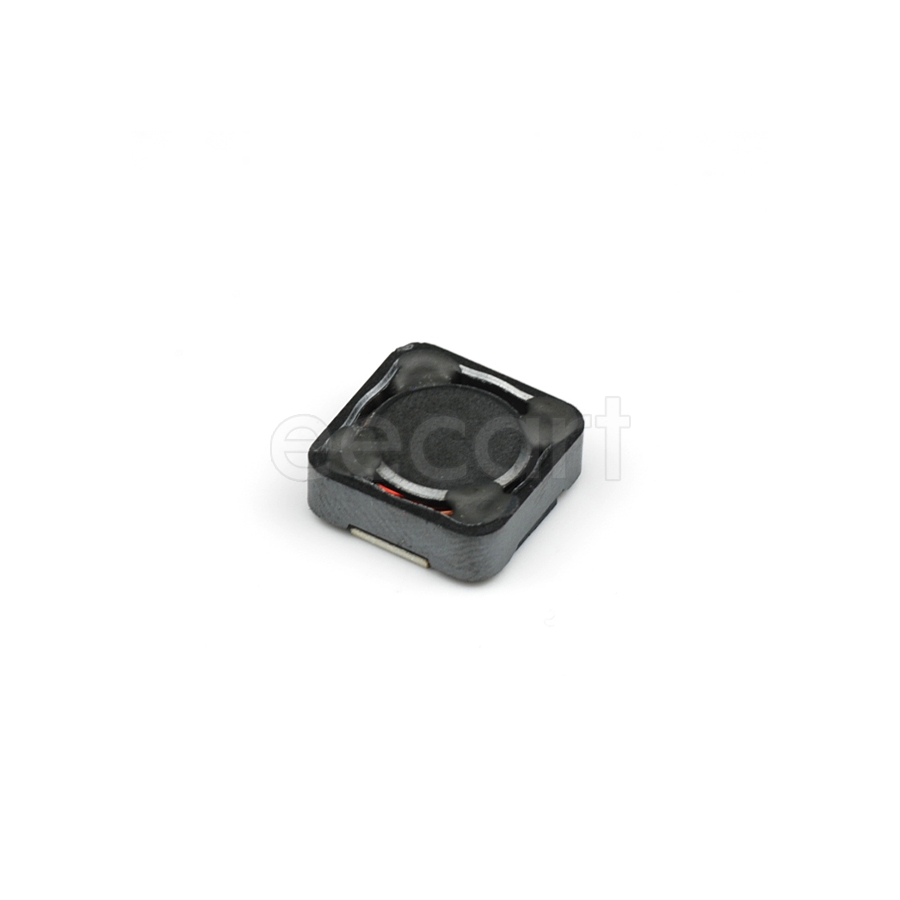

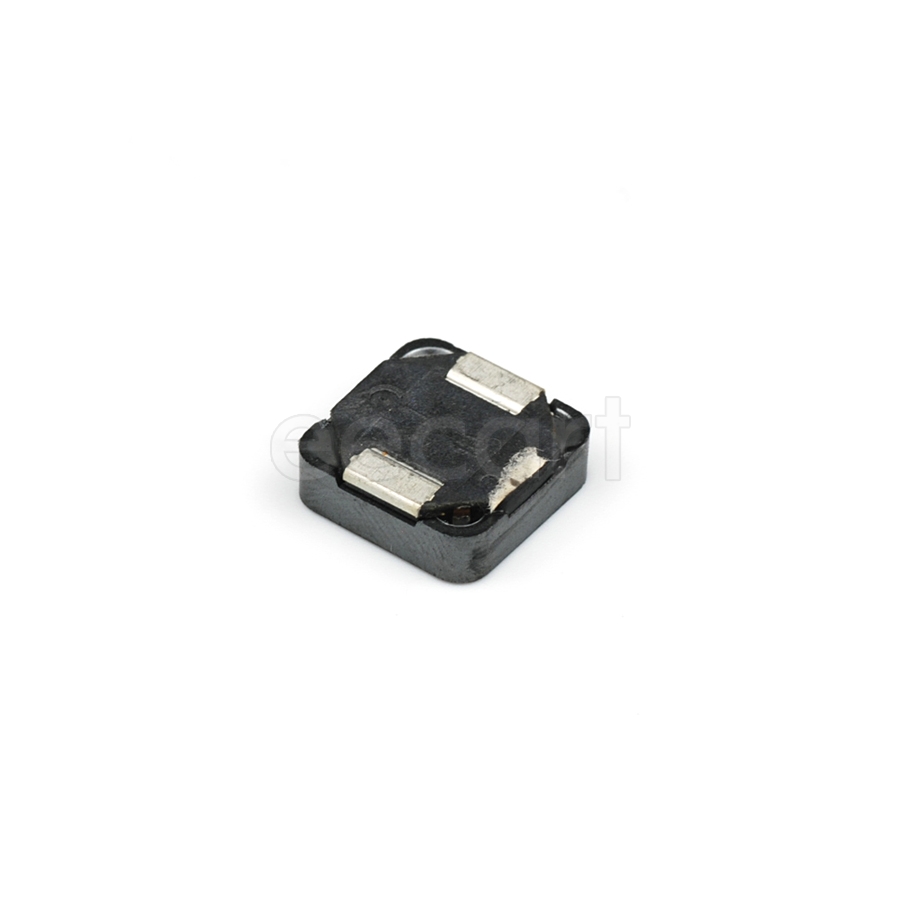

PM124SH-100M-RC
Manufacturer:
Bourns
Mfr.Part #:
PM124SH-100M-RC
Datasheet:
Description:
Fixed Inductors 12.50mmL×12.50mmW×4.00mmH SMD/SMT 10 µH 20 % 4 A 32 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 4.5 mm |
| Length | 12.4968 mm |
| Width | 12.4968 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Composition(Kit Type) | Wirewound |
| Height | 4 mm |
| Packaging | Reel |
| Depth | 12.8 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Self Resonant Frequency | 27 MHz |
| Current Rating | 4 A |
| DC Resistance (DCR) | 32 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Shielded |
| Inductance | 10 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 4 A |
| inductance tolerance | 20 % |
| Max DC Current | 4 A |
| DC Current | 4 A |
| Saturation Current | 4 A |
| Schedule B | 8504500000 |
| Q Factor | 17 |
| Type | Wirewound |
Stock: 598
Distributors
pcbx
pcbxUnit Price$0.64462
Ext.Price$0.64462
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.64462 | $0.64462 |
| 10 | $0.52834 | $5.28340 |
| 25 | $0.49492 | $12.37300 |
| 50 | $0.46362 | $23.18100 |
| 100 | $0.43430 | $43.43000 |
| 300 | $0.42084 | $126.25200 |
| 500 | $0.40780 | $203.90000 |
| 1000 | $0.34539 | $345.39000 |
