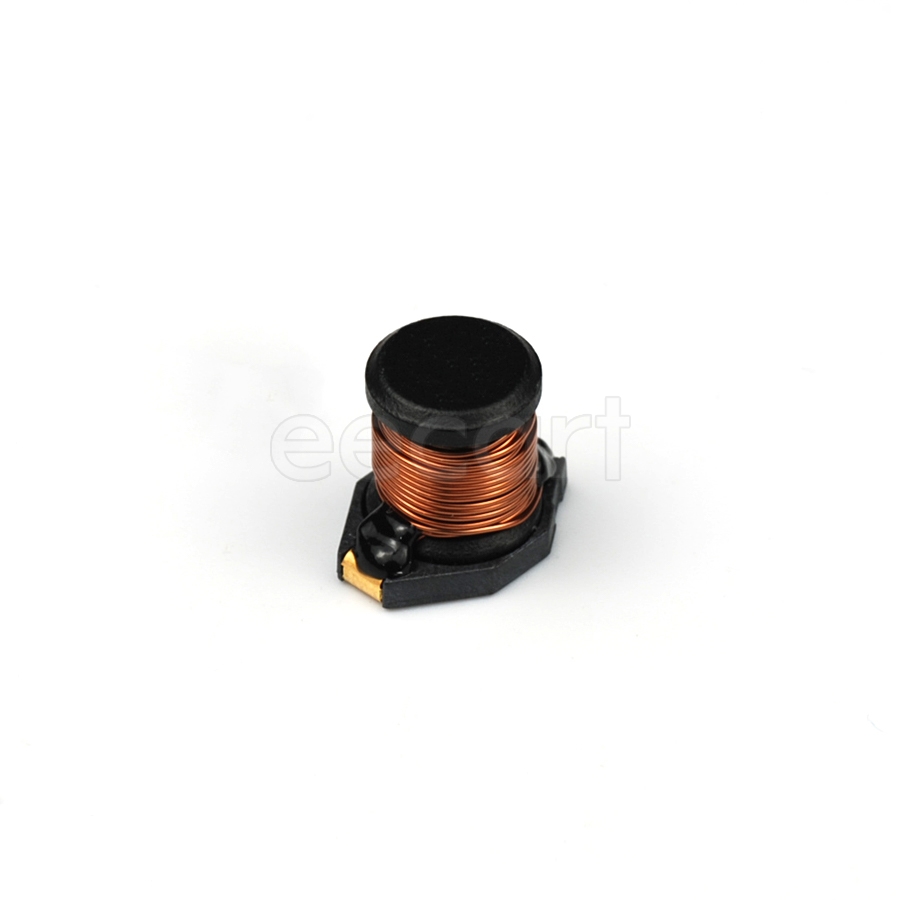

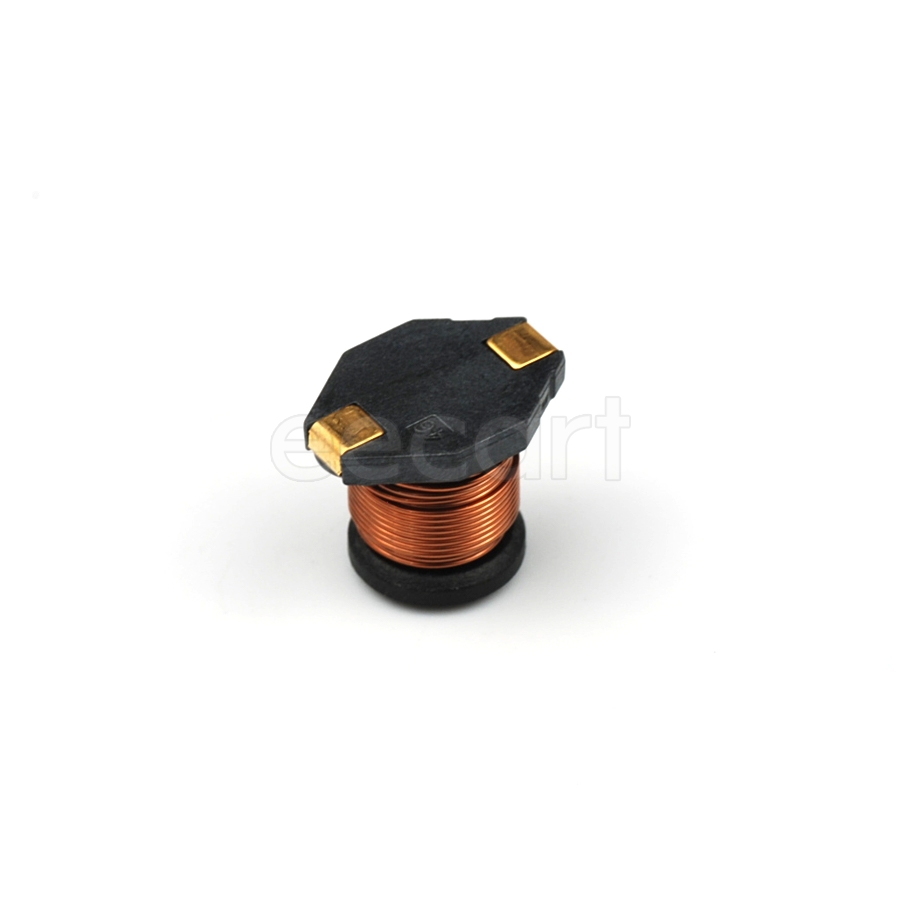

PM3340-221M-RC
Manufacturer:
Bourns
Mfr.Part #:
PM3340-221M-RC
Datasheet:
Description:
Fixed Inductors 13.00mmL×10.20mmW×11.50mmH SMD/SMT 220 µH 20 % 700 mA 440 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 11.5 mm |
| Length | 13 mm |
| Width | 10.2108 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Composition(Kit Type) | Wirewound |
| Height | 11.5 mm |
| Packaging | Reel |
| Depth | 10.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 7.6 mm |
| REACH SVHC | No SVHC |
| Type | Wirewound |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 440 mΩ |
| Test Frequency | 100 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Inductance | 220 µH |
| Core Material | Ferrite |
| RMS Current (Irms) | 700 mA |
| inductance tolerance | 20 % |
| Max DC Current | 700 mA |
| DC Current | 700 mA |
| Saturation Current | 1.6 A |
| Schedule B | 8504500000 |
