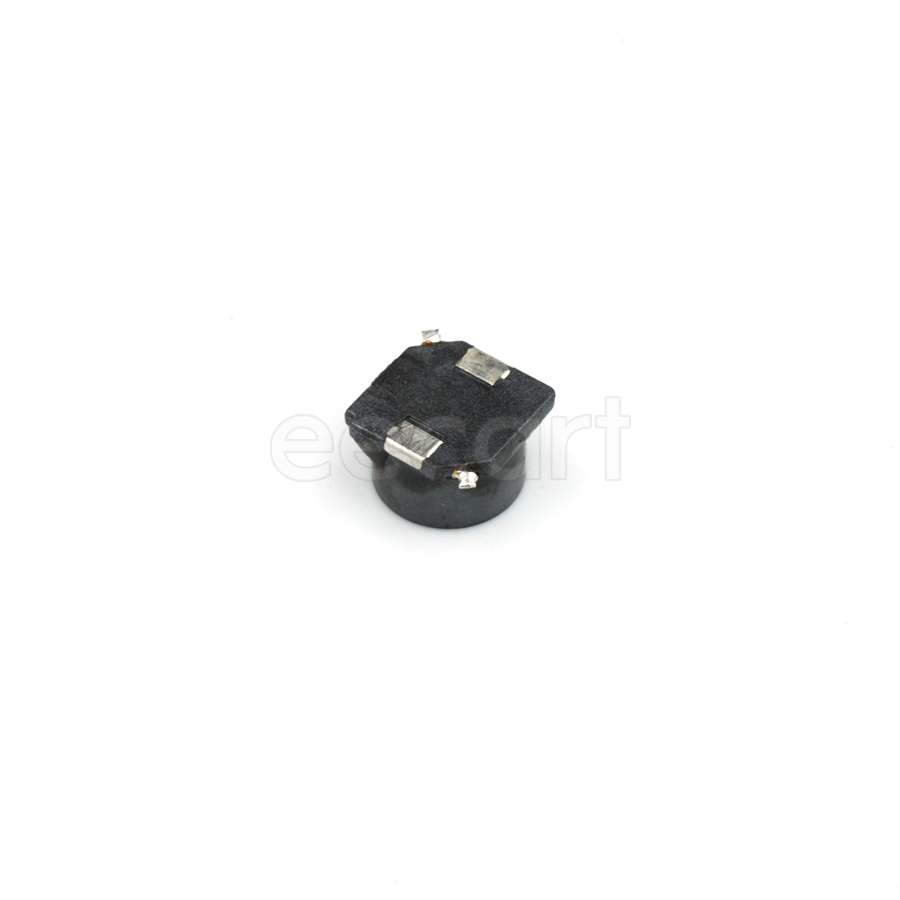

PM3700-40-RC
Manufacturer:
Bourns
Mfr.Part #:
PM3700-40-RC
Datasheet:
Description:
Common Mode Chokes SMD/SMT Max Current Rating:4 A Number of Lines:2 Frequency:40 MHz 20 mΩ 1 mH
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Length | 21.9 mm |
| Width | 21.59 mm |
| Termination | SMD/SMT |
| Diameter | 17.78 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Resistance | 20 MΩ |
| Height | 11.43 mm |
| Packaging | Reel |
| Depth | 21.9 mm |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Copper, Silver, Tin |
| Frequency | 40 MHz |
| Current | 4 A |
| Current Rating | 4 A |
| DC Resistance (DCR) | 20 mΩ |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Shielding | Unshielded |
| Number of Lines | 2 |
| Inductance | 1 mH |
| Element Configuration | Dual |
| Max DC Current | 4 A |
| DC Current | 4 A |
| Schedule B | 8504500000 |
| Max Current Rating | 4 A |
| Type | SMT Power Inductors and Transformers |
Stock: 163
Distributors
pcbx
pcbxUnit Price$3.04099
Ext.Price$3.04099
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.04099 | $3.04099 |
| 10 | $2.60870 | $26.08700 |
| 25 | $2.43249 | $60.81225 |
| 50 | $2.26818 | $113.40900 |
| 100 | $2.11499 | $211.49900 |
