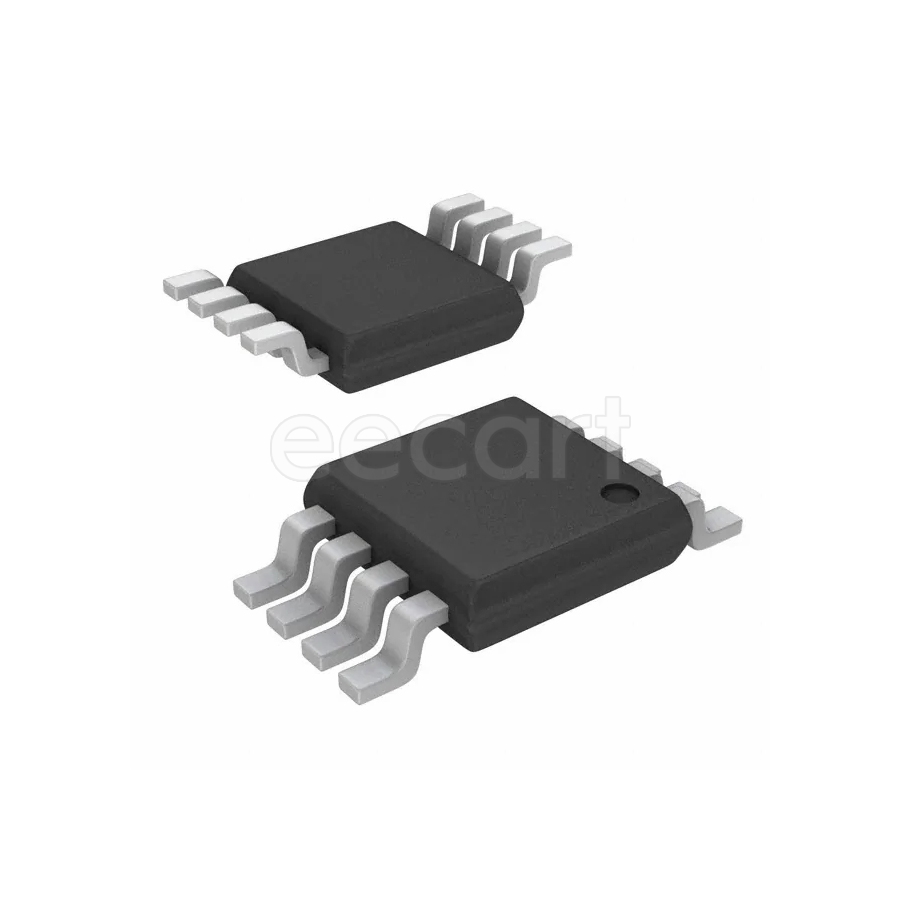

PM8834MTR
Manufacturer:
STMicroelectronics
Mfr.Part #:
PM8834MTR
Datasheet:
Description:
Gate Drivers MSOP-8 EP SMD/SMT Low Side IGBT, N-Channel MOSFET Independent
| Parameter | Value |
|---|---|
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Power Dissipation | 1.1 W |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 5 V |
| Max Output Current | 4 A |
| Number of Outputs | 2 |
| Schedule B | 8542390000 |
| Number of Drivers | 2 |
| Rise Time | 10 ns |
| Output Current | 4 A |
| Fall Time | 10 ns |
| Channel Type | Independent |
| Gate Type | IGBT, N-Channel MOSFET |
| Logic Voltage | 0.8 V, 2.5 V |
| Configuration | Low Side |
Stock: 3507
Distributors
pcbx
pcbxUnit Price$1.31403
Ext.Price$1.31403
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.31403 | $1.31403 |
| 10 | $0.97633 | $9.76330 |
| 25 | $0.88827 | $22.20675 |
| 50 | $0.84039 | $42.01950 |
| 100 | $0.79509 | $79.50900 |
| 300 | $0.75293 | $225.87900 |
| 500 | $0.71301 | $356.50500 |
| 1000 | $0.66941 | $669.41000 |
| 3000 | $0.54716 | $1641.48000 |
