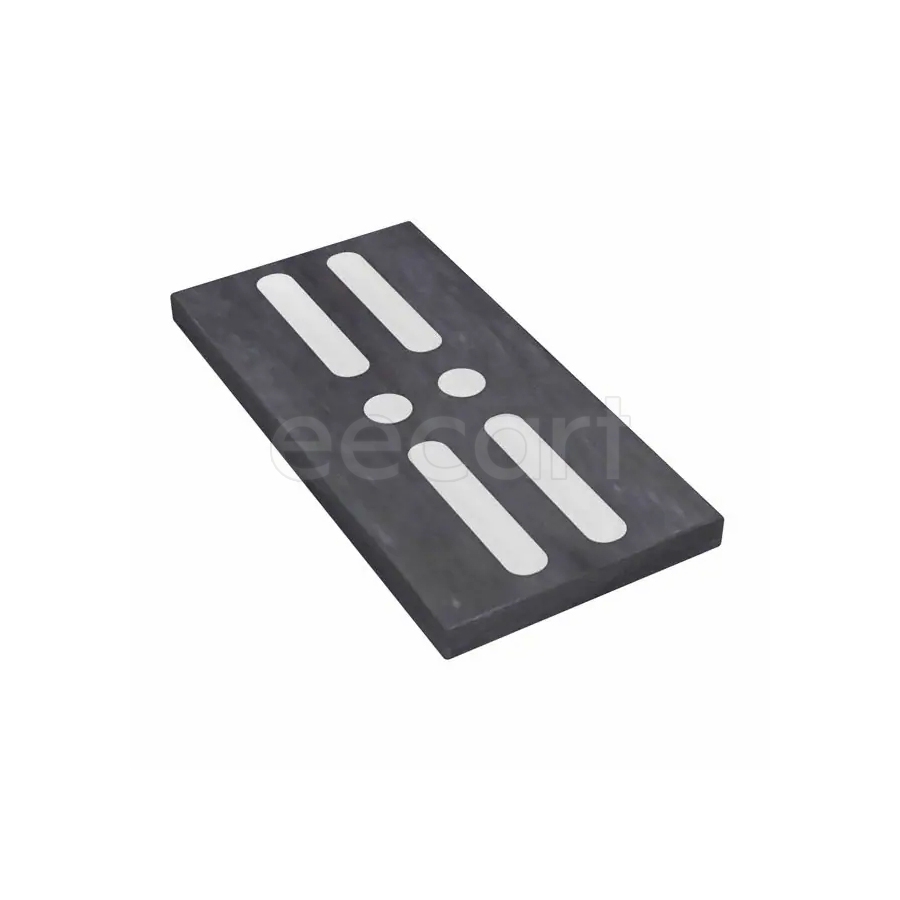

PMCM6501UNEZ
Manufacturer:
Nexperia
Mfr.Part #:
PMCM6501UNEZ
Datasheet:
Description:
MOSFETs WLCSP-6 SMD/SMT N-Channel number of channels:1 12.5 W 20 V Continuous Drain Current (ID):8.7 A 28 nC
| Parameter | Value |
|---|---|
| Gate Charge | 28 nC |
| Gate to Source Threshold Voltage | 400 mV |
| Continuous Drain Current (ID) | 8.7 A |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Drain to Source Resistance | 21 mΩ |
| Power Dissipation | 12.5 W |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
| Number of Channels | 1 |
| Packaging | Reel |
| RoHS | Compliant |
| FET Type(Transistor Polarity) | N-Channel |
| Gate to Source Voltage (Vgs) | -8 V, 8 V |
| Input capacitance | 105 pF |
Stock: 1857
Distributors
pcbx
pcbxUnit Price$0.60072
Ext.Price$0.60072
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.60072 | $0.60072 |
| 10 | $0.37352 | $3.73520 |
| 25 | $0.32374 | $8.09350 |
| 50 | $0.28060 | $14.03000 |
| 100 | $0.24321 | $24.32100 |
| 300 | $0.21331 | $63.99300 |
| 500 | $0.18708 | $93.54000 |
| 1000 | $0.16901 | $169.01000 |
