PMDPB95XNE2X
Manufacturer:
Nexperia
Mfr.Part #:
PMDPB95XNE2X
Datasheet:
Description:

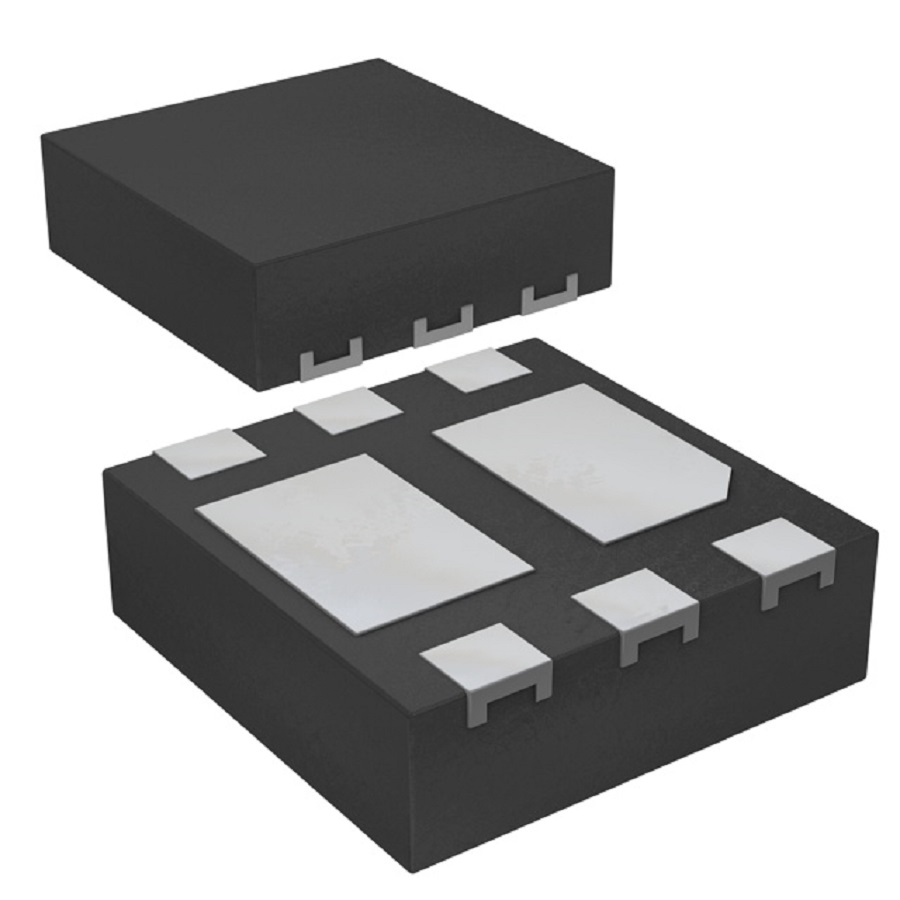

MOSFETs DFN2020-6 SMD/SMT N-Channel number of channels:2 1.165 W 30 V Continuous Drain Current (ID):3 A 4.5 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 1.165 W |
| Number of Channels | 2 |
| Input capacitance | 258 pF |
| Continuous Drain Current (ID) | 3 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 4.5 nC |
| Drain to Source Resistance | 99 mΩ |
| Gate to Source Voltage (Vgs) | -12 V, 12 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Gate to Source Threshold Voltage | 750 mV |
Stock: 439
Distributors
pcbx
pcbxUnit Price$0.38812
Ext.Price$0.38812
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.38812 | $0.38812 |
| 10 | $0.23900 | $2.39000 |
| 50 | $0.19110 | $9.55500 |
| 100 | $0.15280 | $15.28000 |
| 500 | $0.11553 | $57.76500 |
| 1000 | $0.10351 | $103.51000 |
| 3000 | $0.08496 | $254.88000 |
