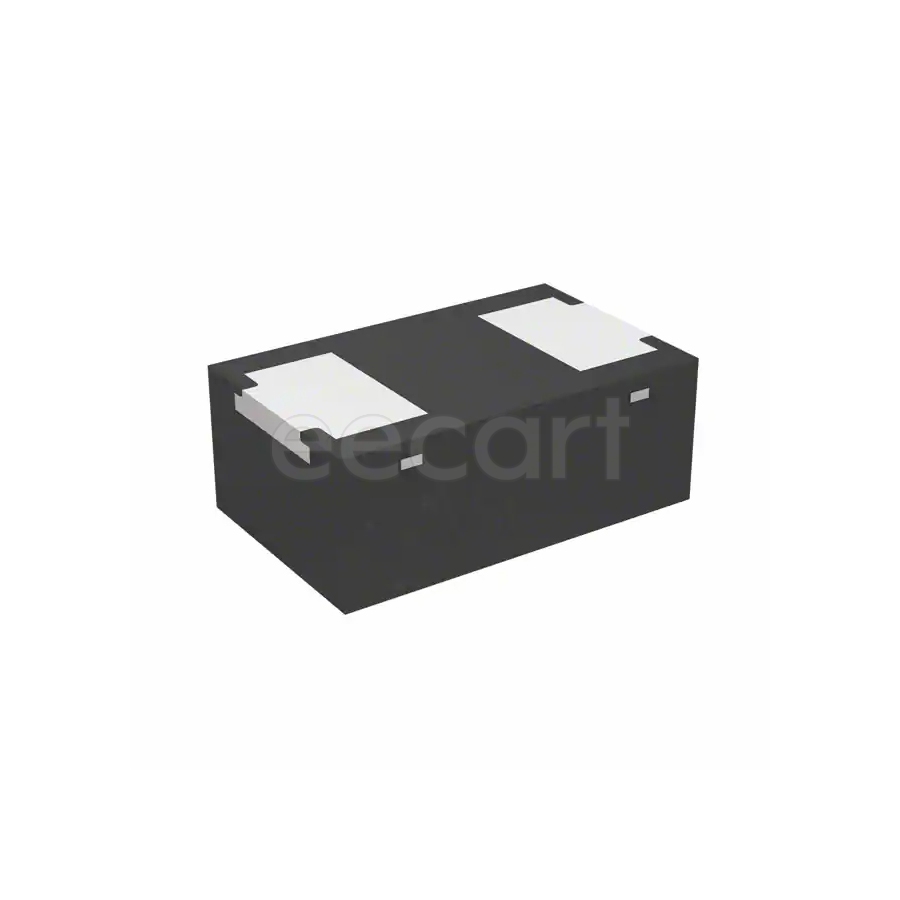

PMEG2005ELD,315
Manufacturer:
Nexperia
Mfr.Part #:
PMEG2005ELD,315
Datasheet:
Description:
Rectifier Diodes SOD-882D SMD/SMT Single Forward Current:500 mA Forward Voltage:450 mV Reverse Voltage:20 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Radiation Hardening | No |
| Forward Current | 500 mA |
| Max Power Dissipation | 1 W |
| Reverse Recovery Time | 7 ns |
| Average Rectified Current | 500 mA |
| Max Reverse Voltage (DC) | 20 V |
| Max Reverse Leakage Current | 30 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 20 V |
| Element Configuration | Single |
| Max Surge Current | 3 A |
| Peak Non-Repetitive Surge Current | 3 A |
| Recovery Time | 7 ns |
| RoHS | Compliant |
| Packaging | Reel |
| Reverse Current | 30 µA |
| Forward Voltage | 450 mV |
| Forward Surge Current (Ifsm) | 3 A |
| Reverse Voltage | 20 V |
| Capacitance | 30 pF |
Stock: 7150
Distributors
pcbx
pcbxUnit Price$0.20006
Ext.Price$0.20006
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20006 | $0.20006 |
| 10 | $0.12824 | $1.28240 |
| 50 | $0.10575 | $5.28750 |
| 100 | $0.08720 | $8.72000 |
| 500 | $0.06506 | $32.53000 |
| 1000 | $0.05010 | $50.10000 |
| 3000 | $0.04683 | $140.49000 |
| 5000 | $0.04377 | $218.85000 |
| 10000 | $0.03129 | $312.90000 |
