PMEG6002ELDYL
Manufacturer:
Nexperia
Mfr.Part #:
PMEG6002ELDYL
Datasheet:
Description:

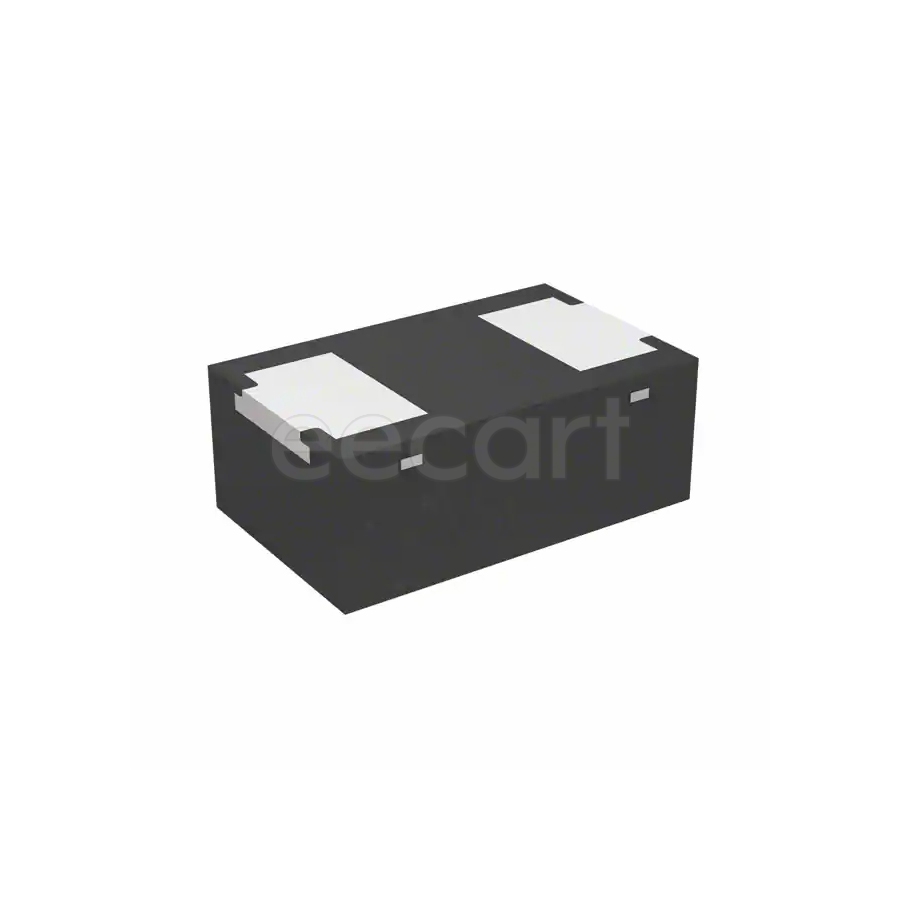

Schottky Diodes SOD882D-2 SMD/SMT Single Forward Current:200 mA Forward Voltage:540 mV Max Repetitive Reverse Voltage (Vrrm):60 V Max Forward Surge Current (Ifsm):3 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Forward Current | 200 mA |
| Forward Voltage | 540 mV |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Max Power Dissipation | 1.09 W |
| Reverse Recovery Time | 4.5 ns |
| Average Rectified Current | 200 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 60 V |
| Element Configuration | Single |
| Forward Surge Current (Ifsm) | 3 A |
| Reverse Voltage | 60 V |
| Peak Non-Repetitive Surge Current | 3 A |
| Reverse Current | 2 mA |
| Recovery Time | 4.5 ns |
| Schedule B | 8541100070 |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY (Last Updated: 1 day ago) |
Stock: 26381
Distributors
pcbx
pcbxUnit Price$0.12482
Ext.Price$0.12482
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.12482 | $0.12482 |
| 10 | $0.07634 | $0.76340 |
| 50 | $0.06735 | $3.36750 |
| 100 | $0.05942 | $5.94200 |
| 500 | $0.04446 | $22.23000 |
| 1000 | $0.04069 | $40.69000 |
| 3000 | $0.04035 | $121.05000 |
| 5000 | $0.04001 | $200.05000 |
| 10000 | $0.02753 | $275.30000 |
