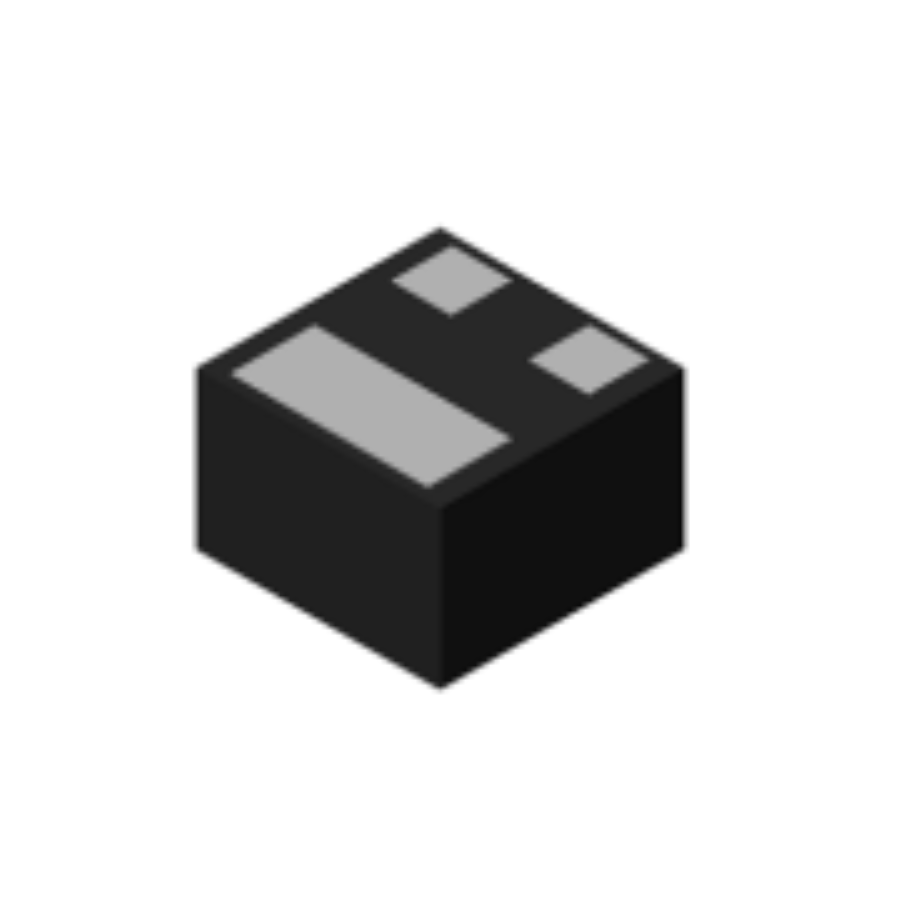

PMH950UPEH
Manufacturer:
Nexperia
Mfr.Part #:
PMH950UPEH
Datasheet:
Description:
MOSFETs DFN0606-3 SMD/SMT P-Channel number of channels:1 625 mW 20 V Continuous Drain Current (ID):530 mA 2.9 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Power Dissipation | 625 mW |
| Number of Channels | 1 |
| Input capacitance | 36 pF |
| Continuous Drain Current (ID) | 530 mA |
| FET Type(Transistor Polarity) | P-Channel |
| Gate Charge | 2.9 nC |
| Drain to Source Resistance | 1.4 Ω |
| Gate to Source Voltage (Vgs) | -8 V, 8 V |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
| Gate to Source Threshold Voltage | 950 mV |
Stock: 189
Distributors
pcbx
pcbxUnit Price$0.07490
Ext.Price$0.07490
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.07490 | $0.07490 |
| 10 | $0.05190 | $0.51900 |
| 50 | $0.04454 | $2.22700 |
| 100 | $0.03823 | $3.82300 |
| 500 | $0.03280 | $16.40000 |
| 1000 | $0.03111 | $31.11000 |
| 3000 | $0.03014 | $90.42000 |
| 5000 | $0.02920 | $146.00000 |
| 10000 | $0.02390 | $239.00000 |
