PMZB290UNE2YL
Manufacturer:
Nexperia
Mfr.Part #:
PMZB290UNE2YL
Datasheet:
Description:

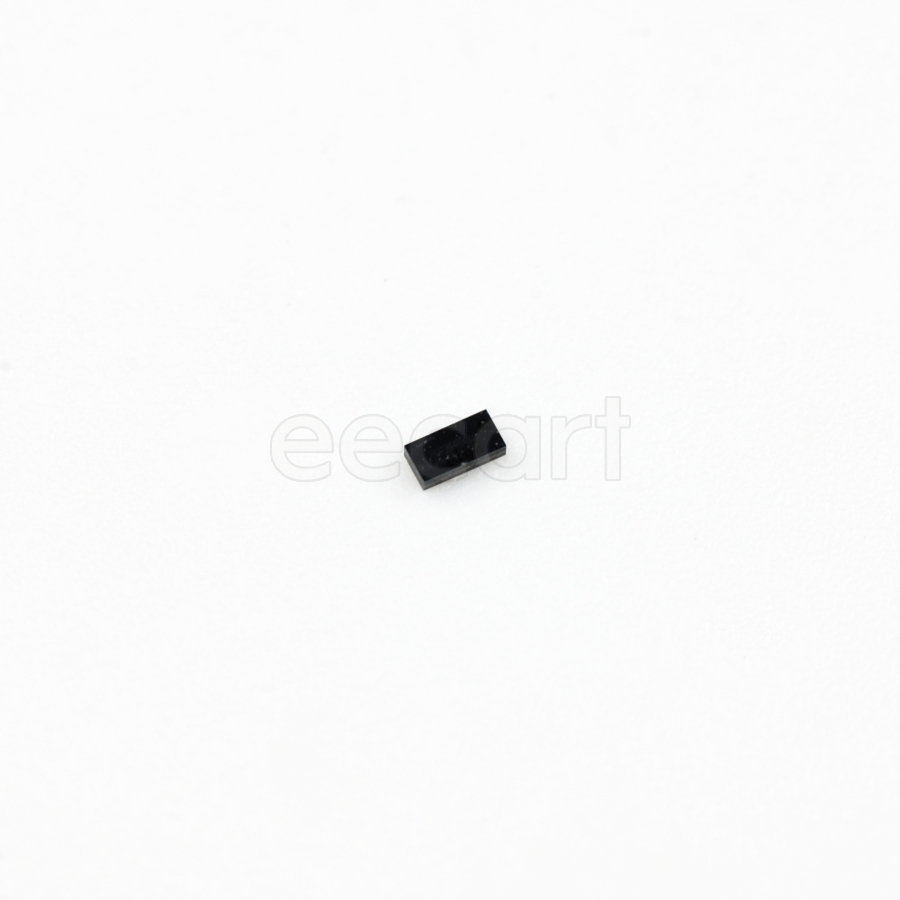

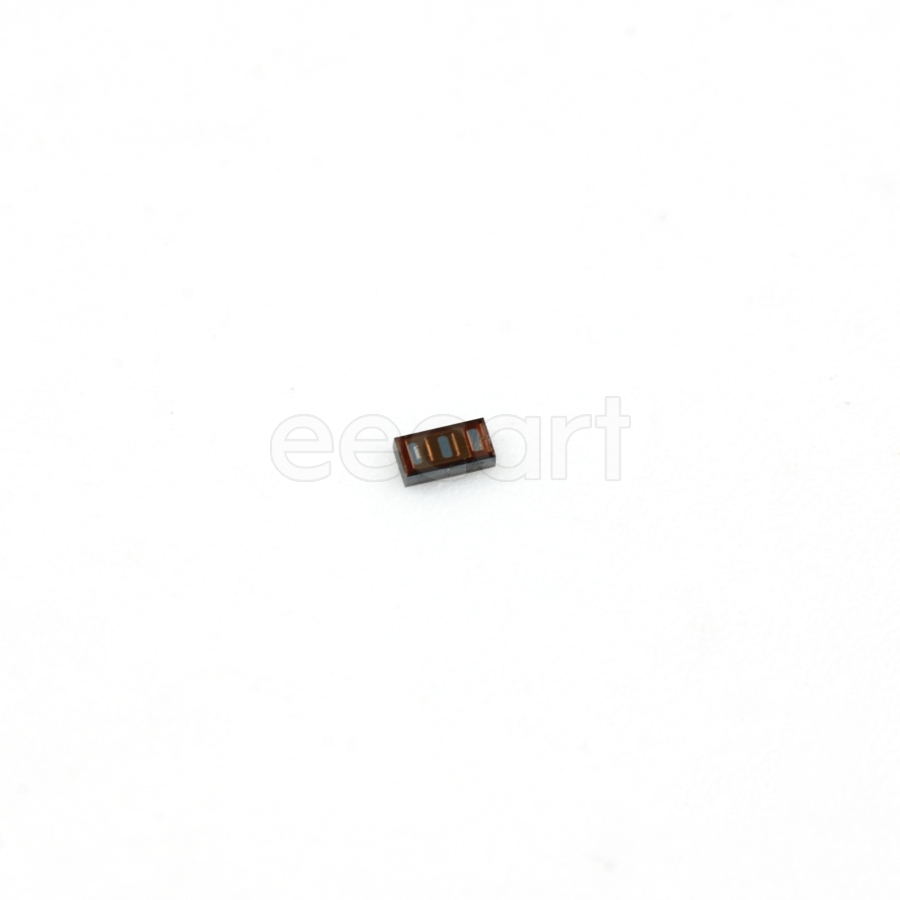

MOSFETs XFDFN-3 SMD/SMT N-Channel number of channels:1 715 mW 20 V Continuous Drain Current (ID):1.2 A 800 pC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Max Power Dissipation | 350 mW |
| Power Dissipation | 715 mW |
| Number of Channels | 1 |
| Input capacitance | 46 pF |
| Continuous Drain Current (ID) | 1.2 A |
| Rds On Max | 320 mΩ |
| Drain to Source Voltage (Vdss) | 20 V |
| Turn-On Delay Time | 6 ns |
| Turn-Off Delay Time | 11 ns |
| Rise Time | 10 ns |
| Gate Charge | 800 pC |
| Drain to Source Resistance | 320 mΩ |
| Gate to Source Voltage (Vgs) | -8 V, 8 V |
| Drain to Source Breakdown Voltage (Vds) | 20 V |
| Schedule B | 8541210080 |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY (Last Updated: 1 day ago) |
| Gate to Source Threshold Voltage | 450 mV |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 242
Distributors
pcbx
pcbxUnit Price$0.21886
Ext.Price$0.21886
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21886 | $0.21886 |
| 10 | $0.13764 | $1.37640 |
| 50 | $0.09319 | $4.65950 |
| 100 | $0.08720 | $8.72000 |
| 500 | $0.08228 | $41.14000 |
| 1000 | $0.07763 | $77.63000 |
| 3000 | $0.05489 | $164.67000 |
| 5000 | $0.03881 | $194.05000 |
| 10000 | $0.03881 | $388.10000 |
