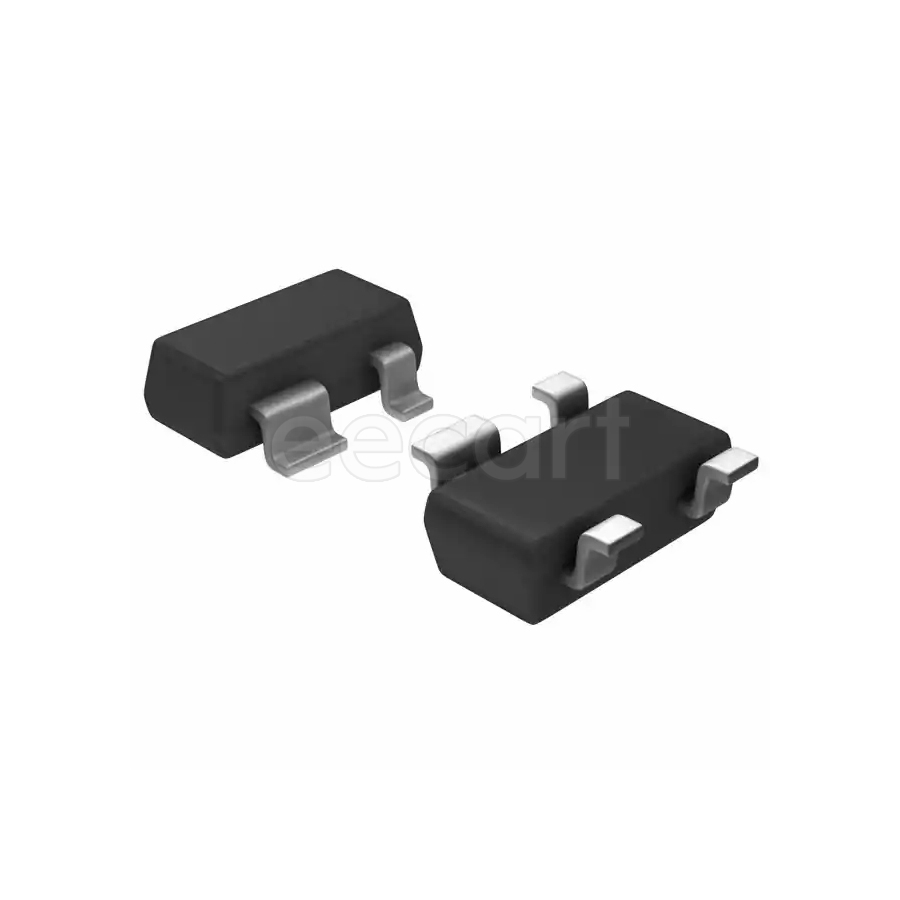

PRTR5V0U2X,215
Manufacturer:
Nexperia
Mfr.Part #:
PRTR5V0U2X,215
Datasheet:
Description:
ESD and Circuit Protection ICs SOT-143B SMD/SMT Working Voltage:5.5 V Breakdown Voltage:6 V 1 pF
| Parameter | Value |
|---|---|
| Capacitance | 1 pF |
| Length | 3 mm |
| Width | 1.4 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 4 |
| Leakage Current | 100 nA |
| Height | 1.1 mm |
| Packaging | Reel |
| Depth | 1.4 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Bidirectional |
| REACH SVHC | No SVHC |
| Weight | 453.59237 mg |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Working Voltage | 5.5 V |
| Operating Supply Voltage | 700 mV |
| Lifecycle Status | Production (Last Updated: 1 day ago) |
| Ambient Temperature Range High | 85 °C |
| Number of Channels | 2 |
| Max Reverse Leakage Current | 100 µA |
| Direction(Counting Sequence) | Bidirectional |
| Min Breakdown Voltage | 6 V |
| Reverse Standoff Voltage | 5.5 V |
| Power Line Protection | Yes |
| Number of Bidirectional Channels | 2 |
| Reverse Breakdown Voltage | 6 V |
| ESD Protection | Yes |
| Max Breakdown Voltage | 9 V |
| Manufacturer Lifecycle Status | RELEASED FOR SUPPLY (Last Updated: 1 day ago) |
| Voltage ESD Contact | 8 kV |
| Diode Capacitance | 1 pF |
| Breakdown Voltage | 6 V |
Stock: 193777
Distributors
pcbx
pcbxUnit Price$0.43734
Ext.Price$0.43734
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.43734 | $0.43734 |
| 10 | $0.30019 | $3.00190 |
| 50 | $0.27615 | $13.80750 |
| 100 | $0.25404 | $25.40400 |
| 500 | $0.18938 | $94.69000 |
| 1000 | $0.16320 | $163.20000 |
| 3000 | $0.16249 | $487.47000 |
| 5000 | $0.16178 | $808.90000 |
