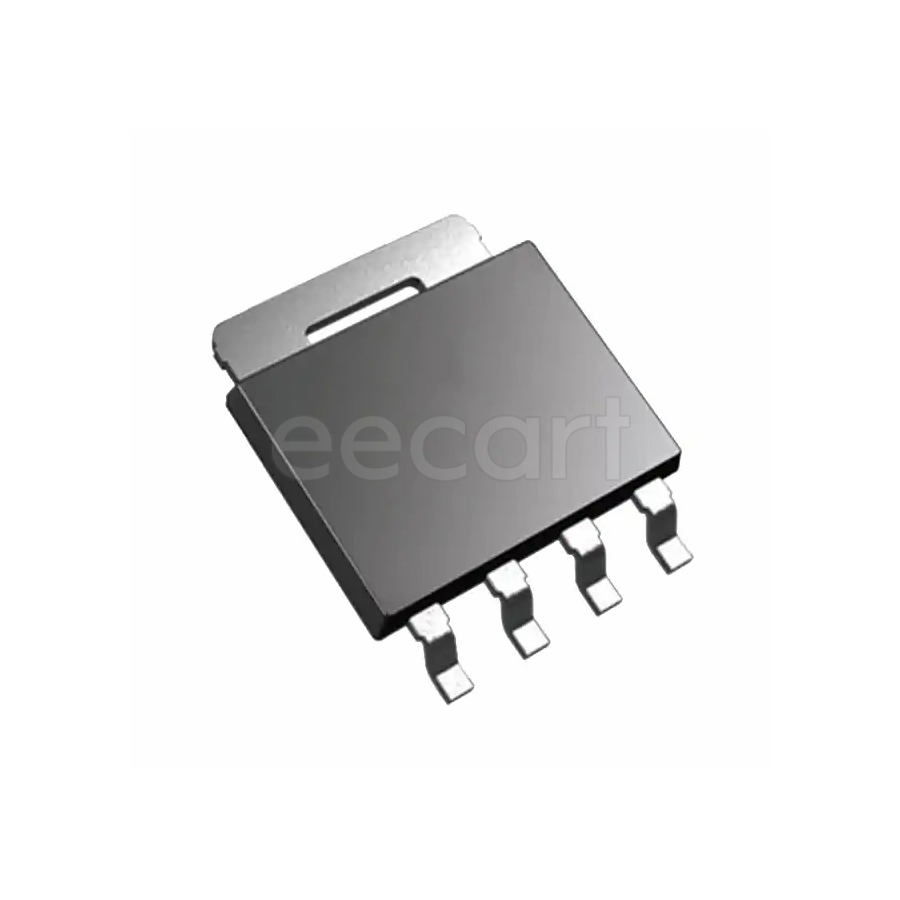

PSMN1R1-25YLC,115
Manufacturer:
Nexperia
Mfr.Part #:
PSMN1R1-25YLC,115
Datasheet:
Description:
MOSFETs SOT-669-5 SMD/SMT N-Channel number of channels:1 215 W 25 V Continuous Drain Current (ID):100 A 83 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Lifecycle Status | Active |
| Power Dissipation | 215 W |
| Mounting Style | Surface Mount |
| lead free status | Lead Free |
| Number of Channels | 1 |
| rohs status | Compliant |
| Input capacitance | 5.287 nF |
| Continuous Drain Current (ID) | 100 A |
| FET Type(Transistor Polarity) | N-Channel |
| Gate Charge | 83 nC |
| Drain to Source Resistance | 1.15 mΩ |
| Gate to Source Voltage (Vgs) | -20 V, 20 V |
| Drain to Source Breakdown Voltage (Vds) | 25 V |
| Gate to Source Threshold Voltage | 1.43 V |
Stock: 1546
Distributors
pcbx
pcbxUnit Price$1.53289
Ext.Price$1.53289
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.53289 | $1.53289 |
| 10 | $0.95752 | $9.57520 |
| 25 | $0.83022 | $20.75550 |
| 50 | $0.71985 | $35.99250 |
| 100 | $0.64462 | $64.46200 |
| 300 | $0.57729 | $173.18700 |
| 500 | $0.51699 | $258.49500 |
| 1000 | $0.46299 | $462.99000 |
| 3000 | $0.41464 | $1243.92000 |
