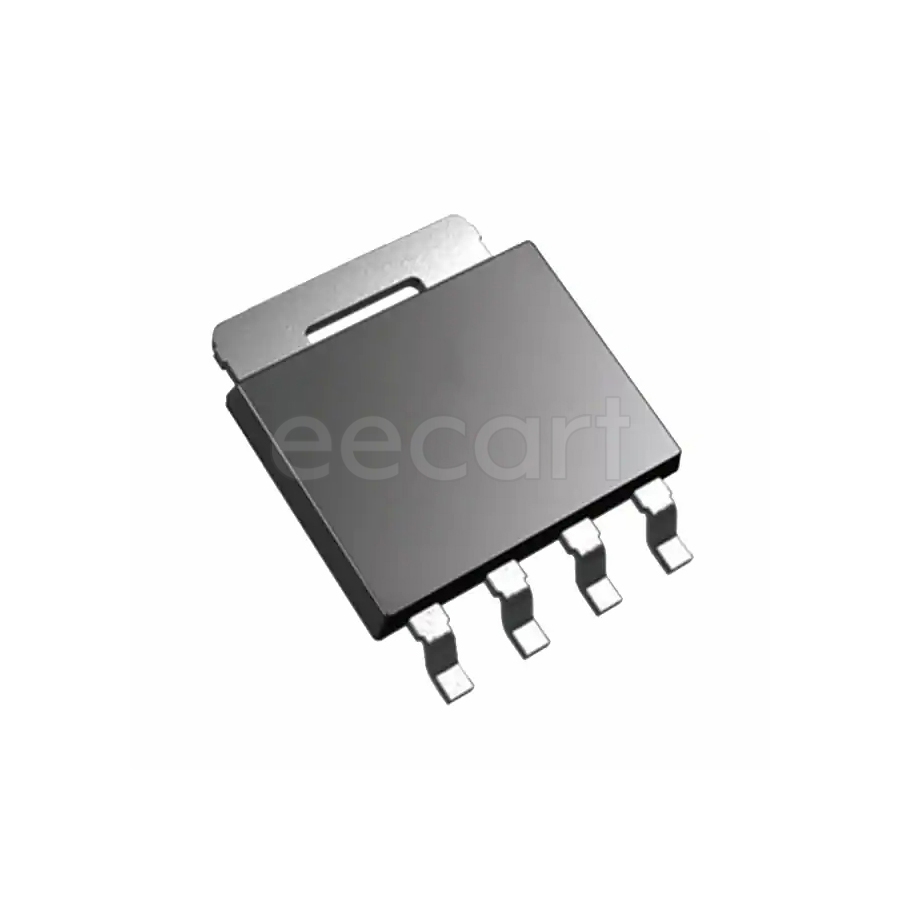

PSMN3R0-30YLDX
Manufacturer:
Nexperia
Mfr.Part #:
PSMN3R0-30YLDX
Datasheet:
Description:
MOSFETs LFPAK56-5 SMD/SMT N-Channel number of channels:1 91 W 30 V Continuous Drain Current (ID):100 A 46.4 nC
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 4 |
| Packaging | Reel |
| RoHS | Compliant |
| Number of Elements | 1 |
| Max Power Dissipation | 91 W |
| Power Dissipation | 91 W |
| Number of Channels | 1 |
| Input capacitance | 2.939 nF |
| Continuous Drain Current (ID) | 100 A |
| Rds On Max | 3.1 mΩ |
| Drain to Source Voltage (Vdss) | 30 V |
| Turn-On Delay Time | 13.5 ns |
| Turn-Off Delay Time | 16.9 ns |
| Fall Time | 12.4 ns |
| Rise Time | 21 ns |
| Gate Charge | 46.4 nC |
| Drain to Source Resistance | 2.6 mΩ |
| Max Dual Supply Voltage | 30 V |
| Gate to Source Voltage (Vgs) | 20 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Gate to Source Threshold Voltage | 2.2 V |
| FET Type(Transistor Polarity) | N-Channel |
Stock: 1822
Distributors
pcbx
pcbxUnit Price$0.63180
Ext.Price$0.63180
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.63180 | $0.63180 |
| 10 | $0.43089 | $4.30890 |
| 25 | $0.37642 | $9.41050 |
| 50 | $0.32883 | $16.44150 |
| 100 | $0.28726 | $28.72600 |
| 300 | $0.26549 | $79.64700 |
| 500 | $0.24537 | $122.68500 |
| 1000 | $0.22570 | $225.70000 |
